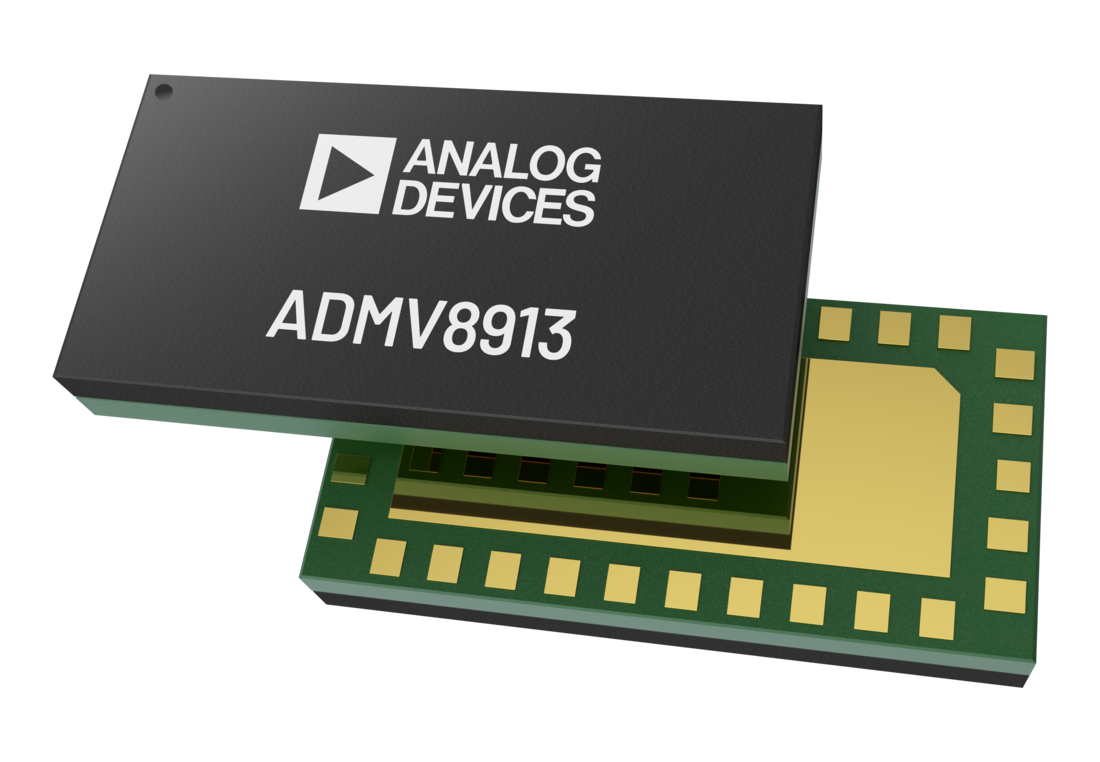

ADMV8913

RECOMMENDED FOR NEW DESIGNS

X Band, Digitally Tunable, High-Pass and Low-Pass Filter

Analog Devices ADMV8913 Product Info

10 February 2026 6

Features

Digitally tunable, lower and upper 3dB cutoff frequencies
Optimal wideband rejection: 35 dB
Single chip replacement for discrete filter banks

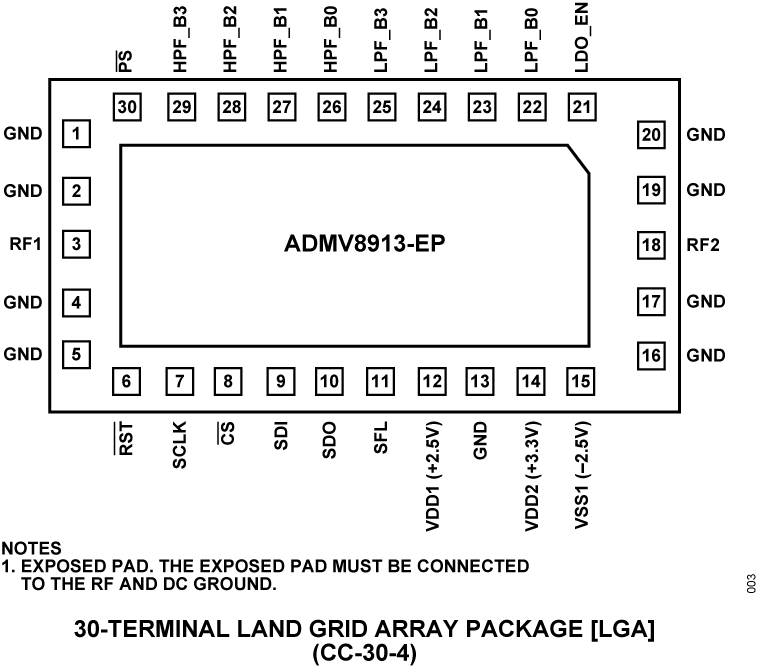

Compact 6.00 × 3.00 x 0.89 mm LGA package

ADMV8913-EP supports defense and aerospace applications (AQEC standard)

Download ADMV8913-EP data sheet
Military temperature range (such as −55°C to +105°C)
See Data Sheet for more information

Part details & applications

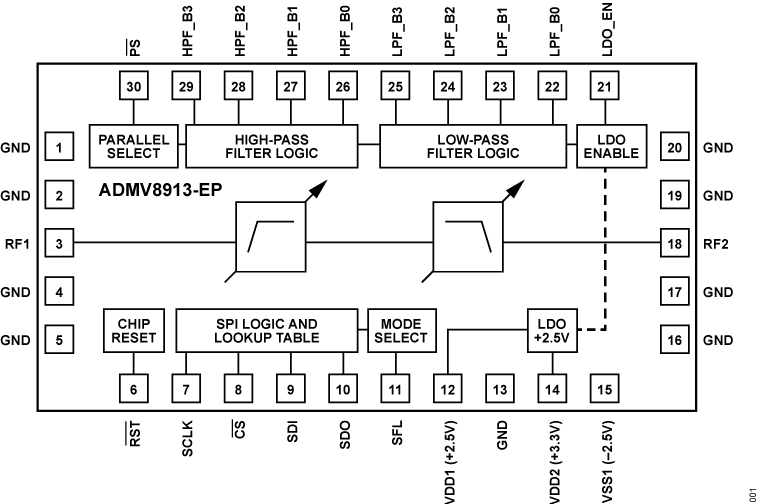

The ADMV8913 is a fully monolithic microwave integrated circuit that that features a digitally selectable frequency of operation. The device has an integrated high-pass filter and an integrated low-pass filter, that allow a pass-band response within the 7 to 12 GHz frequency range.

The flexible architecture of the ADMV8913 allows for 3 dB cutoff frequency (f_3dB) of the high-pass and the low-pass filter to be controlled independently. The digital logic control on each filter is 4 bits wide (16 states) and controls the on-chip reactive elements to adjust the f_3dB. The typical insertion loss is 5 dB, and the wideband rejection is 35 dB, which is ideally suitable for minimizing system harmonics.

This tunable filter can be used as a smaller alternative to large switched filter banks and cavity tuned filters, and this device provides a dynamically adjustable solution in advanced communications applications.

Applications

Test and measurement equipment
Military radar and electronic warfare/electronic countermeasures
Satellite communications
Industrial and medical equipment
