ADMV7310

RECOMMENDED FOR NEW DESIGNS

E-Band Upconverter SiP, 71 GHz to 76 GHz

Analog Devices ADMV7310 Product Info

10 February 2026 6

Features

Maximum conversion gain: 35 dB typical
Gain tuning range: 40 dB minimum
P_SAT: 26 dBm typical for a gain = 23.5 dB and 19.5 dB
OIP3: 31 dBm typical for a gain = 23.5 dB and P_OUT = 16.5 dBm per tone

OP1dB: 25 dBm typical for a gain = 23.5 dB and 19.5 dB
Built-in power detector
Built-in envelope detector for LO nulling

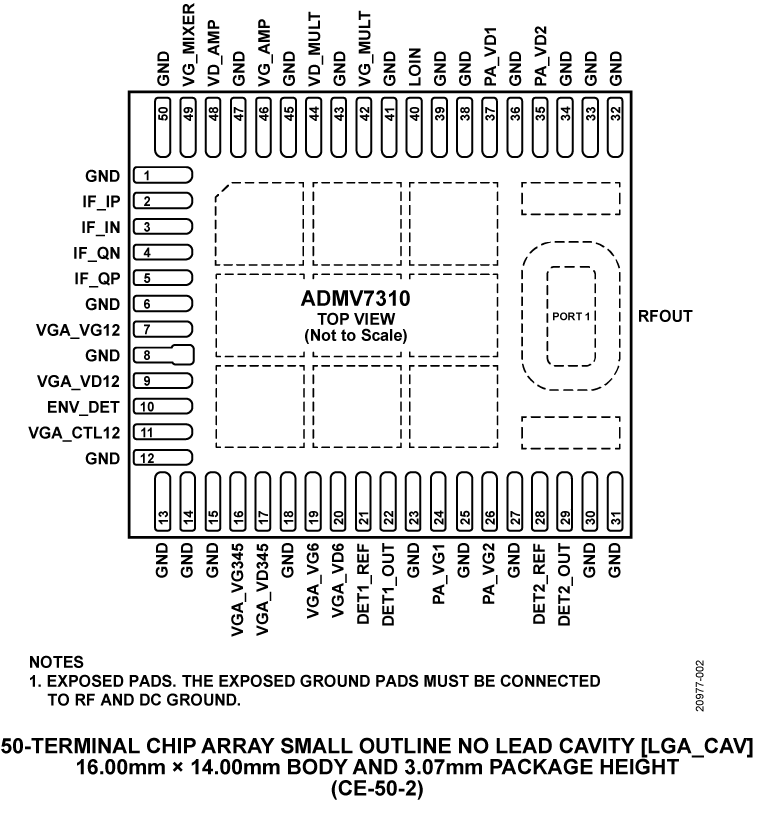

Fully integrated, surface-mount, 50-terminal, 16.00 mm × 14.00 mm LGA_CAV package

Part details & applications

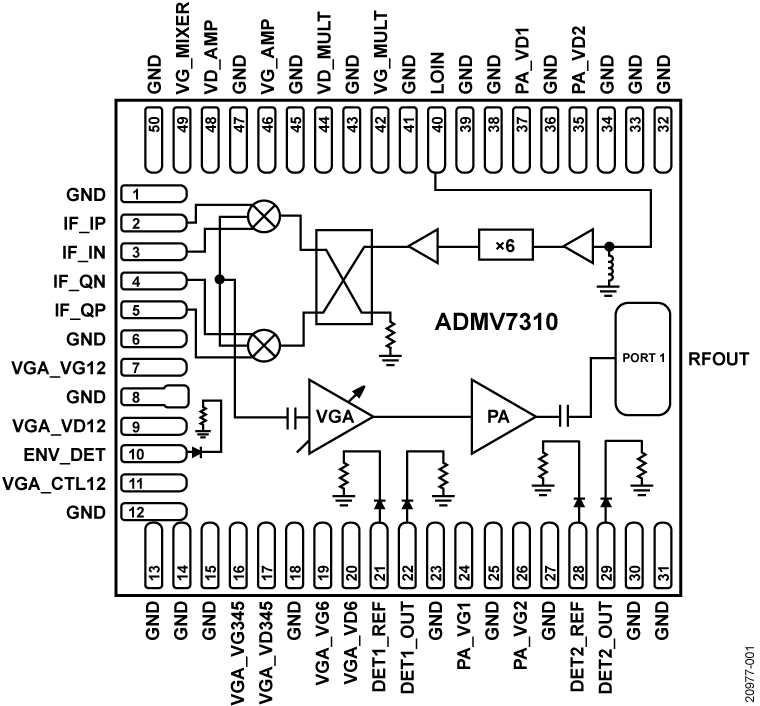

The ADMV7310 is a fully integrated system in package (SiP), in phase/quadrature (I/Q) upconverter that operates between an intermediate frequency (IF) input range of dc to 2 GHz and a radio frequency (RF) output range of 71 GHz to 76 GHz. The device uses an image rejection mixer that is driven by a 6× local oscillator (LO) multiplier. The mixer RF output is followed by a variable gain amplifier (VGA) and a power amplifier (PA), providing a conversion gain of 35 dB typical. Differential I and Q mixer inputs are provided and can be driven with differential I and Q baseband waveforms for direct conversion applications. Alternatively, the inputs can be driven using an external 90° hybrid and two external 180° hybrids for single-ended applications.

The ADMV7310 comes in a fully integrated, surface-mount, 50-terminal, 16.00 mm × 14.00 mm, chip array small outline no lead cavity (LGA_CAV) package. The ADMV7310 operates over the −40°C to +85°C temperature range.

APPLICATIONS

E-band communication systems
High capacity wireless backhauls
Test and measurement
Aerospace and defense
