ADL5507
  • ADL5507
  • ADL5507

ADL5507

RECOMMENDED FOR NEW DESIGNS

10 MHz to 12 GHz, 55 dB Logarithmic RF Power Detector

Analog Devices ADL5507 Product Info

10 February 2026 5

Features

  • Complete RF detector function
  • Wide operating frequency range from 10 MHz to 12 GHz
  • Stable linear-in-decibel response
  • 55 dB dynamic range (±1 dB error at 3.6 GHz RF input)
  • Excellent temperature stability, ±1 dB typical
  • Positive/negative output slope response controlled by ENBL Pin
  • Power on/off response time: 2.5 μs/200 ns (rise/fall)
  • Operates from −40°C to +105°C
  • Low power: 12.5 mA at 3.3 V
  • Disable current <100 μA
  • Power supply voltage range from 2.7 V to 3.45 V

Part details & applications

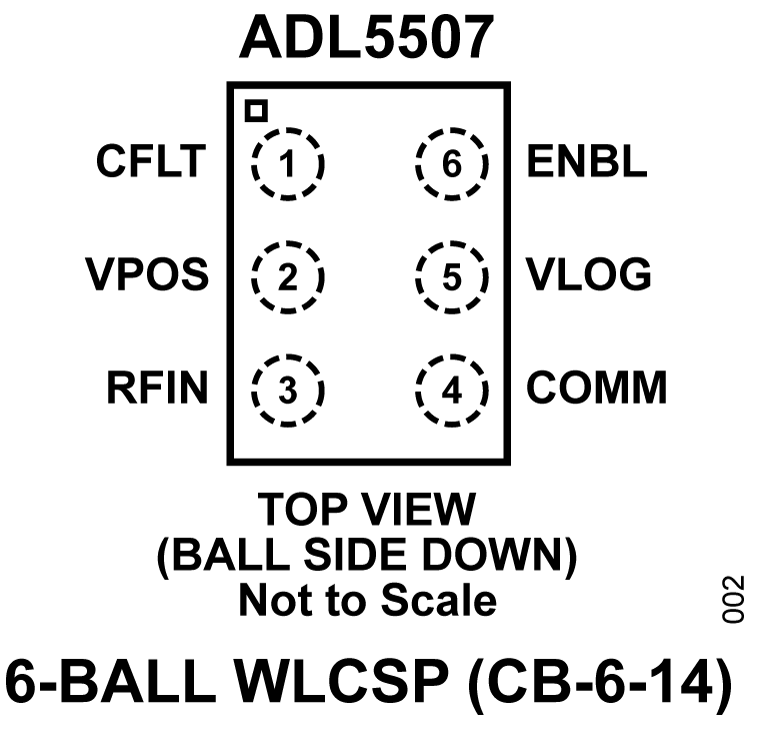

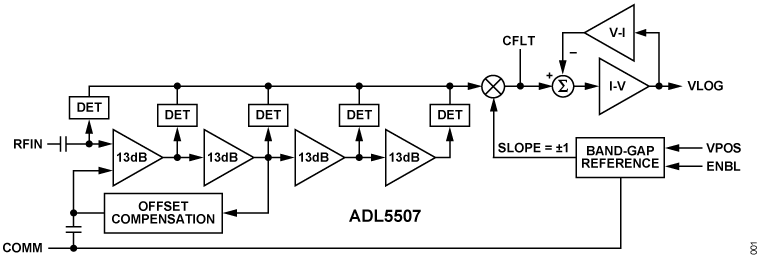

The ADL5507 is a complete, low-power, wide-band logarithmic RF power detector for the measurement of RF signals in the 10 MHz to 12 GHz frequency range. The device is optimized for accurate RF signal level measurements over a 55 dB dynamic range, from −56 dBm to −1 dBm at 3.6 GHz, when terminated with 50 Ω. It provides a wider dynamic range and better accuracy than is possible using discrete diode detectors. Its high sensitivity allows measurement of low power levels, thus reducing the amount of power that needs to be coupled to the detector.

For convenience, the signal input is internally AC-coupled, using a series 25 pF capacitor. Therefore, the source can be DC grounded. A broadband 50 Ω match is obtained with an external 51 Ω shunt resistor. This high-pass coupling, with a corner at approximately 4 MHz, determines the lowest operating frequency.

The DC voltage at the ADL5507 output interface responds linearin- dB to the RF signal level applied at its input. It is accurately temperature compensated to provide typically better than ±1 dB measurement accuracy over the full case operating temperature range from −40°C to +105°C. The output interface has sufficient capability to drive a wide range of analog‐to‐digital converters (ADCs) and other circuitry.

The CFLT interface enables additional ripple and noise filtering of the output signal, without reducing the drive capability of the VLOG interface. This is achieved by connecting a capacitor between the CFLT and VLOG interfaces.

The tri-state ENBL interface switches the device between active positive output slope mode, active negative output slope mode, and a low-power shutdown mode. In positive output slope mode, the ADL5507 output increases approximately from 0.1 V to 1.2 V as the input signal level increases from 0.35 mV rms (−56 dBm) to 200 mV rms (−1 dBm). In negative output slope mode, the output decreases approximately from 1 V to 0
