ADIS16060

NOT RECOMMENDED FOR NEW DESIGNS

Wide Bandwidth Yaw Rate Gyroscope with SPI

Analog Devices ADIS16060 Product Info

10 February 2026 4

Features

Complete angular rate digital gyroscope
14-bit resolution
Scalable measurement range
Initial range: ±80°/sec (typical)
Increase range with external resistor
Z-axis (yaw rate) response
SPI digital output interface
High vibration rejection over wide frequency
5 V single-supply operation
8.2 mm × 8.2 mm × 5.2 mm package

2000 g-powered shock survivability
1 kHz bandwidth
Selectable using external capacitor
Externally controlled self-test
Internal temperature sensor output
Dual auxiliary 14-bit ADC inputs
Absolute rate output for precision applications
RoHS compliant
−40°C to +105°C operation

Part details & applications

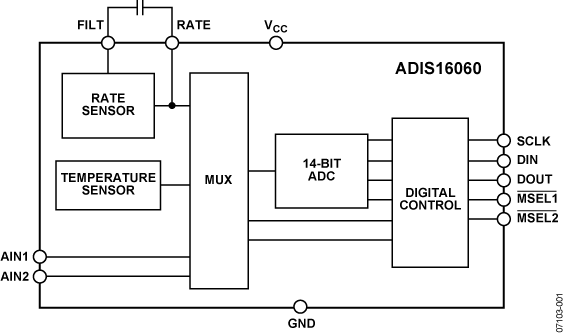

The ADIS16060 is a yaw rate gyroscope with an integrated serial peripheral interface (SPI). It features an externally selectable bandwidth response and scalable dynamic range.

The SPI port provides access to the rate sensor, an internal temperature sensor, and two external analog signals (using internal ADC). The digital data available at the SPI port is proportional to the angular rate about the axis that is normal to the top surface of the package.

An additional output pin provides a precision voltage reference. A digital self-test function electromechanically excites the sensor to test the operation of the sensor and the signal-conditioning circuits.

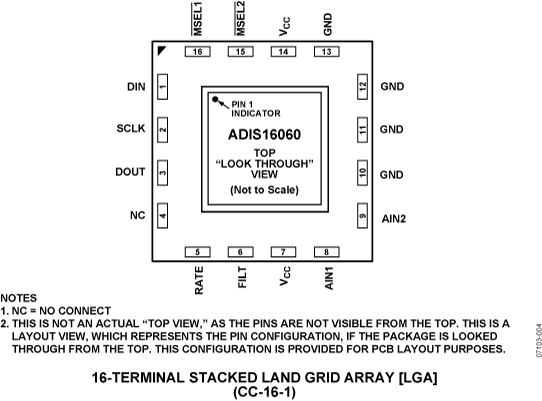

The ADIS16060 is available in an 8.2 mm × 8.2 mm × 5.2 mm, 16-terminal, peripheral land grid array (LGA) package.

APPLICATIONS

Platform stabilization
Image stabilization
Guidance and control
Inertial measurement units
Robotics
