ADH739S
  • ADH739S

ADH739S

RECOMMENDED FOR NEW DESIGNS

Aerospace, MMIC, VCO with Divide-By-16, 25.5 GHz – 27 GHz

Analog Devices ADH739S Product Info

10 February 2026 7

Features

  • Dual Output:
    • Fo = 25.5 GHz – 27 GHz
    • Fo/16 = 1.59 GHz – 1.69 GHz
  • Pout: + 8 dBm Typ
  • Phase Noise: -93 dBc/Hz @ 100 kHz Typ
  • No External Resonator Needed

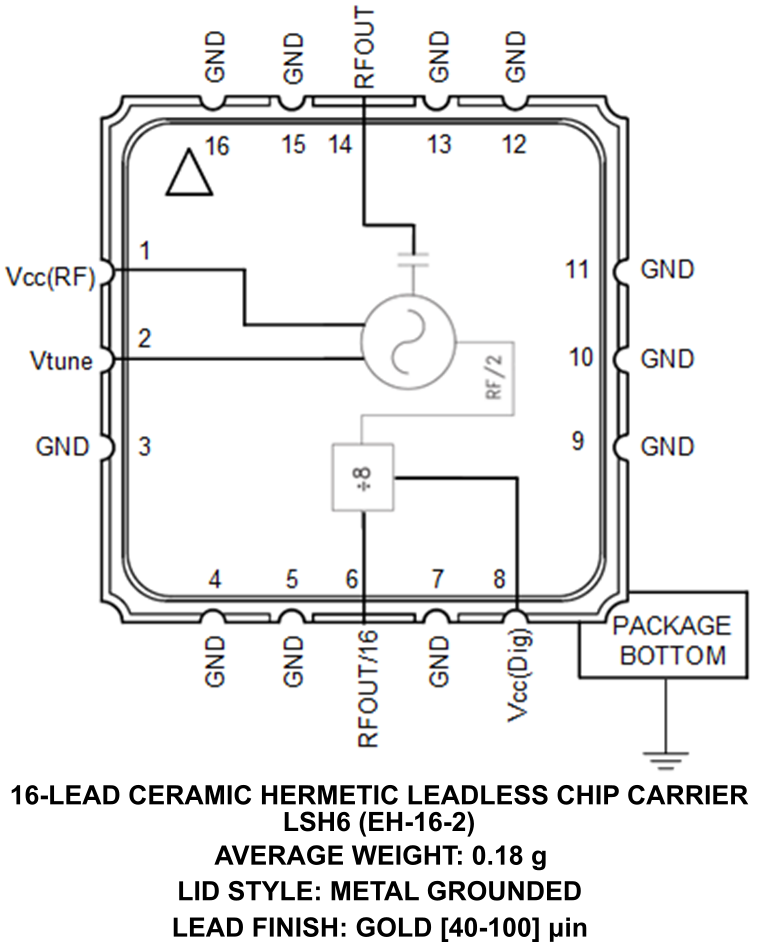

  • 16-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

Part details & applications

The ADH739S is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The ADH739S integrates a resonator, negative resistance device, varactor diode and divide-by-16 prescaler. The VCOs phase noise performance is excellent over temperature, shock, and process due to the oscillator's monolithic structure. Power output is +8 dBm typical from a 5V supply voltage. The voltage-controlled oscillator is packaged in a 16-Lead hermetic SMT package.

Applications

  • Point-to-Point Radios
  • Instrumentation
  • Satellite Communications
  • Military & Space
