ADH584S
  • ADH584S

ADH584S

NOT RECOMMENDED FOR NEW DESIGNS

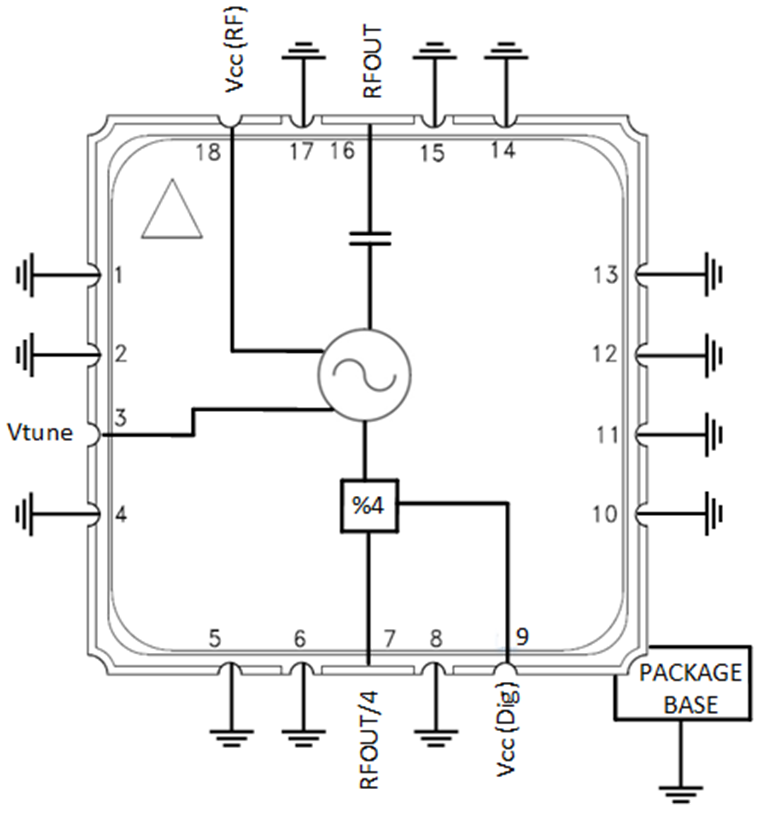

Aerospace, GaAs, InGaP, HBT, MMIC, VCO with Divide-by-4 Frequency Output, 12.5 GHz to 13.9 GHz

Analog Devices ADH584S Product Info

10 February 2026 8

Features

  • Dual Output:
    • Fo = 12.5 GHz – 13.9 GHz
    • Fo/4 = 3.125 GHz – 3.475 GHz
  • Pout: + 10 dBm Typical
  • Phase Noise: -110 dBc/Hz @ 100 kHz Typ
  • No External Resonator Needed
  • 18-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

Part details & applications

The ADH584S is a GaAs, InGaP, Heterojunction Bipolar Transistor (HBT), MMIC, VCO. The ADH584S integrates resonators, negative resistance devices, varactor diodes and feature divide-by-4 frequency output. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +10 dBm typical from a +5V supply voltage. The prescaler and Fo/2 functions are being disabled to conserve current. The voltage-controlled oscillator requires no external matching components.

Applications

  • Point-to-Point/Multi-Point Radios
  • Instrumentation
  • Satellite Communications
  • Military & Space
