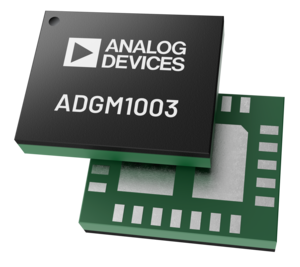

ADGM1003

RECOMMENDED FOR NEW DESIGNS

0 Hz/DC to 16 GHz, SPDT MEMS Switches

Analog Devices ADGM1003 Product Info

10 February 2026 5

Features

ADGM1003: DC to 16 GHz
Insertion loss
- 0.5 dB (typical) at 6 GHz
- 0.7 dB (typical) at 16 GHz
Maximum RF power: 27 dBm
On resistance: 3.4 Ω (typical)
Maximum dc current: 75 mA
Actuation lifetime: 100 million cycles (Typical)

On switching time (t_ON): 200 μs (typical)
Integrated 3.3 V driver for simple control with parallel and SPI
Independently controllable switches
Space-saving integrated passive components
Small, 5.00 mm × 4.00 mm × 0.90 mm, 24-lead LGA package
Temperature range: –40°C to +85°C

Part details & applications

The ADGM1001/ADGM1002/ADGM1003 is a wideband, single-pole, two-throw (SP2T) switch, fabricated using Analog Devices, Inc., micro-electromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0 Hz/dc, making it an ideal solution for a wide range of RF and precision equipment switching needs. The device is packaged in a 24-lead, 5.00 mm × 4.00 mm × 0.90 mm, land grid array (LGA) package.

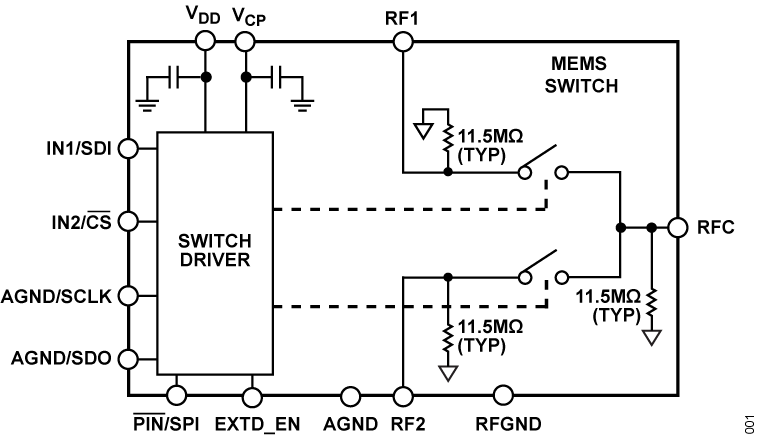

An integrated control chip generates the high voltage necessary to electrostatically actuate the switch via a complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible parallel interface. All switches are independently controllable.

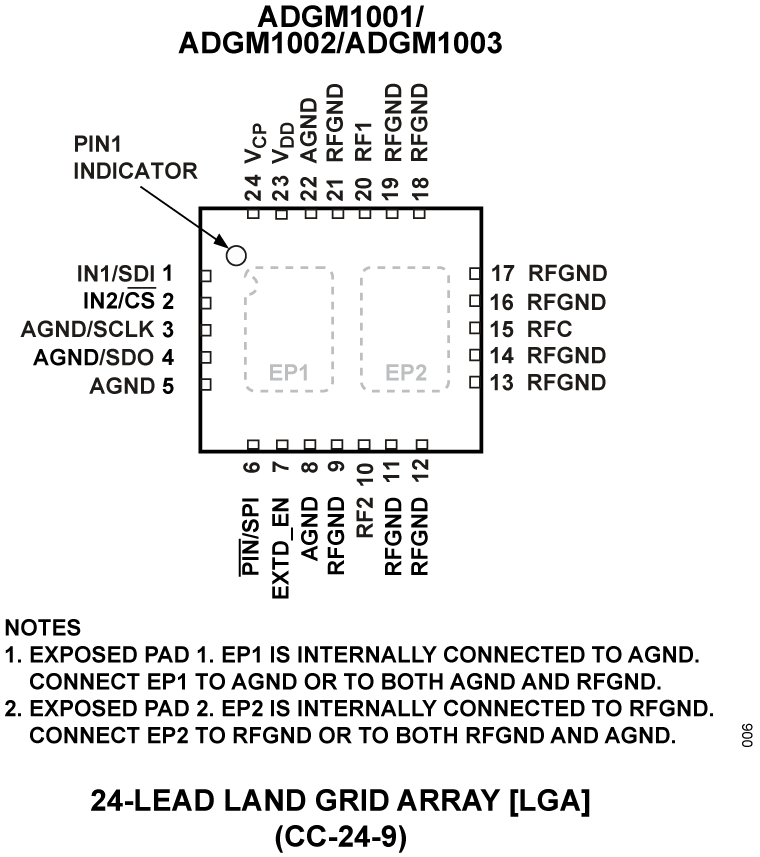

Multifunction pin names may be referenced by their relevant function only.

ADGM1001/ADGM1002/ADGM1003 Key Specifications
Model	Bandwidth	Maximum RF Power (dBm)	DC Signal Range (V)	Maximum DC Current (mA)
