ADGM1001

RECOMMENDED FOR NEW DESIGNS

0 Hz/DC to 34 GHz, SPDT MEMS Switches

Analog Devices ADGM1001 Product Info

10 February 2026 5

Features

ADGM1001: DC to 34 GHz
Insertion loss
- 0.8 dB (typical) at 18 GHz
- 1.5 dB (typical) at 34 GHz
IIP3: 76 dBm (typical)
Maximum RF power: 33 dBm
On resistance: 3.4 Ω (typical)
Maximum dc current: 200 mA
Actuation lifetime: 100 million cycles (minimum)

On switching time (t_ON): 200 μs (typical)
Integrated 3.3 V driver for simple control with parallel and SPI
Independently controllable switches
Space-saving integrated passive components

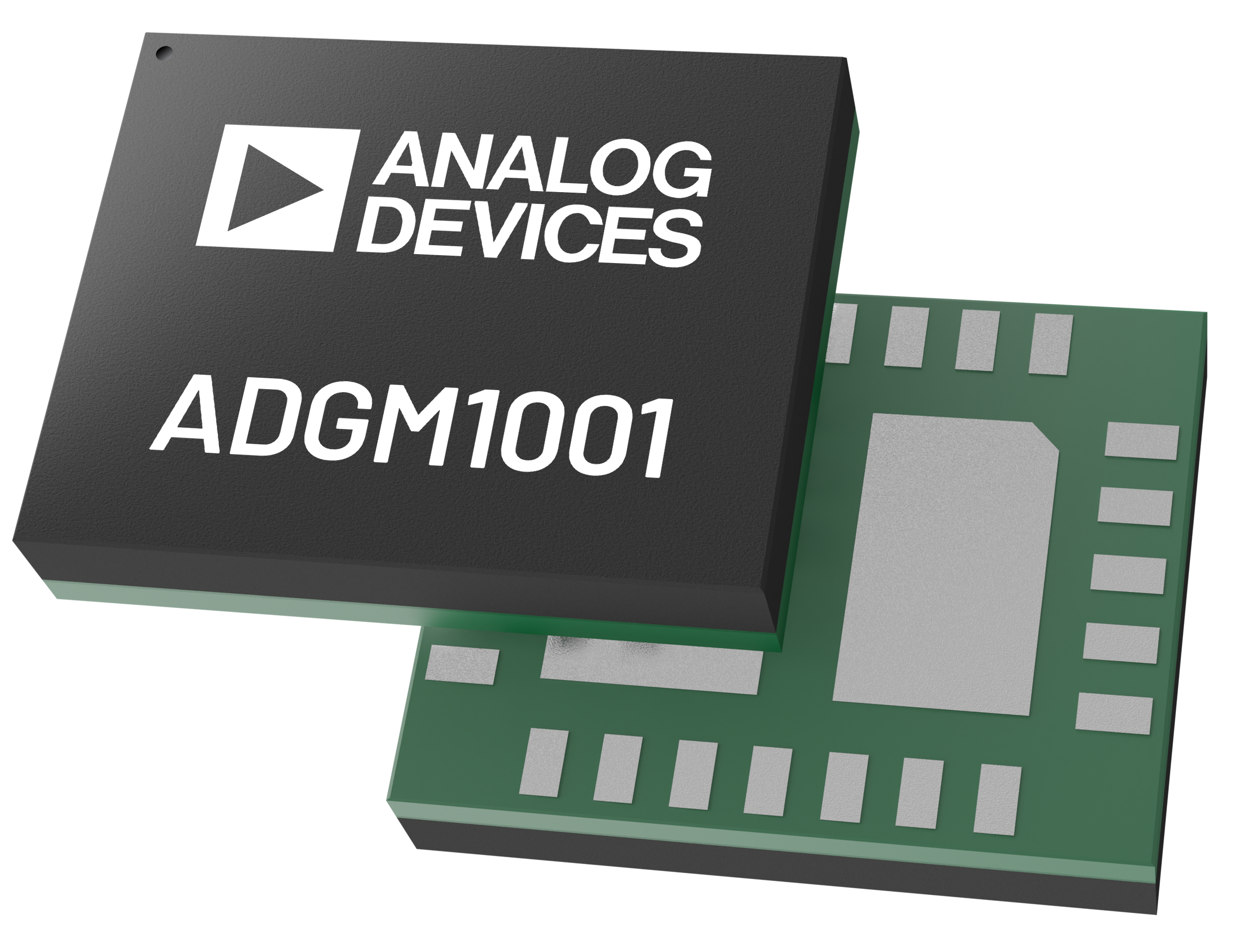

Small, 5.00 mm × 4.00 mm × 0.90 mm, 24-lead LGA package
Temperature range: –40°C to +85°C

Part details & applications

The ADGM1001/ADGM1002/ADGM1003 is a wideband, single-pole, two-throw (SP2T) switch, fabricated using Analog Devices, Inc., micro-electromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0 Hz/dc, making it an ideal solution for a wide range of RF and precision equipment switching needs. The device is packaged in a 24-lead, 5.00 mm × 4.00 mm × 0.90 mm, land grid array (LGA) package.

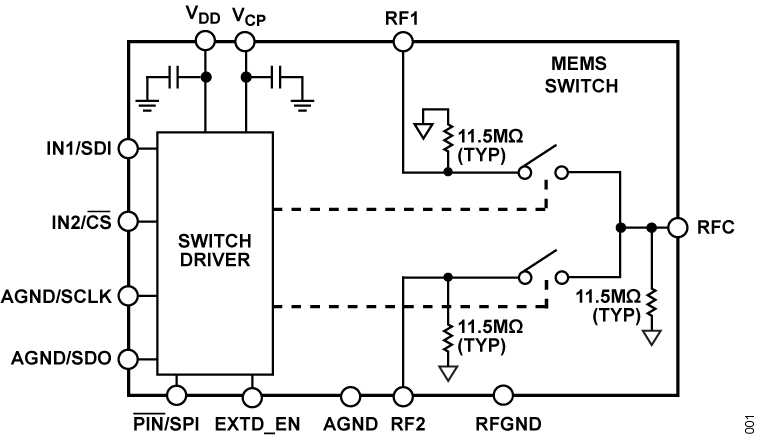

An integrated control chip generates the high voltage necessary to electrostatically actuate the switch via a complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible parallel interface. All switches are independently controllable.

Multifunction pin names may be referenced by their relevant function only.

ADGM1001/ADGM1002/ADGM1003 Key Specifications
Model	Bandwidth	Maximum RF Power (dBm)	DC Signal Range (V)	Maximum DC Current (mA)
ADGM1001	DC to 34 GHz	33	Subscribe to Welllinkchips ! Your Name * Email Subscribe Popular Posts ● Analog Devices ADXRS800 Product Info ● Analog Devices ADIS16060 Product Info ● Analog Devices ADXRS646 Product Info ● Analog Devices ADXL354 Product Info ● Analog Devices ADXL700 Product Info ● Analog Devices ADXL180 Product Info ● Analog Devices ADXL358 Product Info ● Analog Devices ADXRS620 Product Info ● Analog Devices ADXL350 Product Info ● Analog Devices ADXL288 Product Info Featured Parts More > LTC6803HG-4#3ZZTRPBF Analog Devices Inc. Submit a request Submit a request Our salesman will contact you by email after submitting the message! * Part Number: * Quantity: * E-mail: Target price: Name: Company name: Please fill the item with * SUBMITTED SUCCESSFULLY！ Our Salesman will respond within 24 hours. Please pay attention to your mailbox. Thank you for your advice. IRS2092STRPBF Infineon Technologies * Qty: Add RFQ List RFQ Directly DON'T MISS OUT Shipping For Free Submit the inquiry in this window, you can get a chance to free shipping. 1.Submit your parts requirements and fill in your email address. 2.Our sales staff gets in touch with you and communicate the details of orders. OK,let’s see NO,keep going In order to provide you with the best website experience, we use cookies. For more information about how we use cookies and manage your preferences, please refer to our privacy policy. By using our website, you agree to use cookies. CONTACT US [email protected] Company address WELL LINK CHIPS GROUP CO.,LIMITED FLAT/RM 1802 BEVERLY HOUSE 93-107 LOCKHART ROAD WANCHAI HK FOLLOW US © 2022 WELL LINK CHIPS GROUP CO., LIMITED All Rights Reserved. Privacy Policy \| Terms and Conditions Send Enquiry SEND e-MAIL Office hour from 9am to 6pm , Monday through Friday, UTC/GMT +8
