Analog Devices ADG858 Product Info

• 0.58 Ω typical on resistance
• 0.82 Ω maximum on resistance at 85°C
• 1.8 V to 5.5 V single supply
• High current carrying capability: 250 mA continuous
• Rail-to-rail switching operation
• Fast-switching times: <20 ns
• Typical power consumption: <0.1 μW
• 2.1 mm × 2.1 mm mini LFCSP

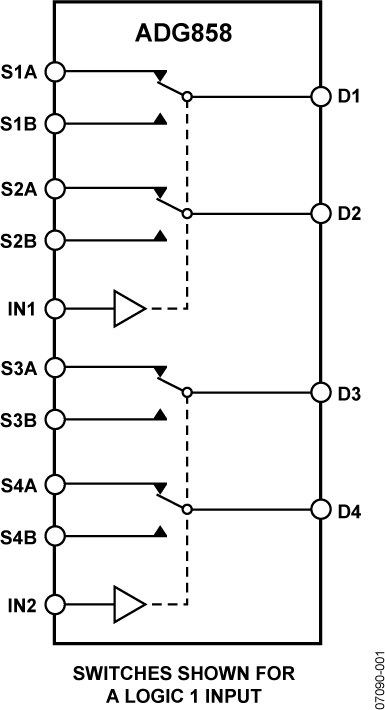

The ADG858 is a low voltage CMOS device containing four single-pole, double-throw (SPDT) switches. This device offers ultralow on resistance of less than 0.82 Ω over the full temperature range. The ADG858 is fully specified for 4.2 V to 5.5 V and 2.7 V to 3.6 V supply operation.

Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG858 exhibits break-before-make switching action.

The ADG858 is available in a 2.1 mm × 2.1 mm, 16-lead mini LFCSP. This tiny package makes the device ideal for spaceconstrained applications, such as handsets, PDAs, and MP3s.

Product Highlights

1. <0.82 Ω over the full temperature range of −40°C to +85°C.
2. Single 1.8 V to 5.5 V operation.
3. Compatible with 1.8 V CMOS logic.
4. High current handling capability (250 mA continuous current per channel).
5. Low THD + N: 0.06% typical.
6. 2.1 mm × 2.1 mm, 16-lead mini LFCSP.

Applications

• Cellular phones
• PDAs
• MP3 players
• Power routing
• Battery-powered systems
• PCMCIA cards
• Modems
• Audio and video signal routing
• Communication systems
