ADG852

PRODUCTION

0.8 Ω CMOS, 1.8V to 5.5V, SPDT/2:1 Mux Mini LFCSP

Analog Devices ADG852 Product Info

10 February 2026 6

Features

0.8 Ω typical on resistance
Less than 1 Ω maximum on resistance at 85°C
1.8 V to 5.5 V single supply
High current carrying capability: 300 mA continuous

Rail-to-rail switching operation
Fast-switching times: <17 ns
Typical power consumption: <0.1 μW
1.30 mm × 1.60 mm, 10-lead mini LFCSP

Part details & applications

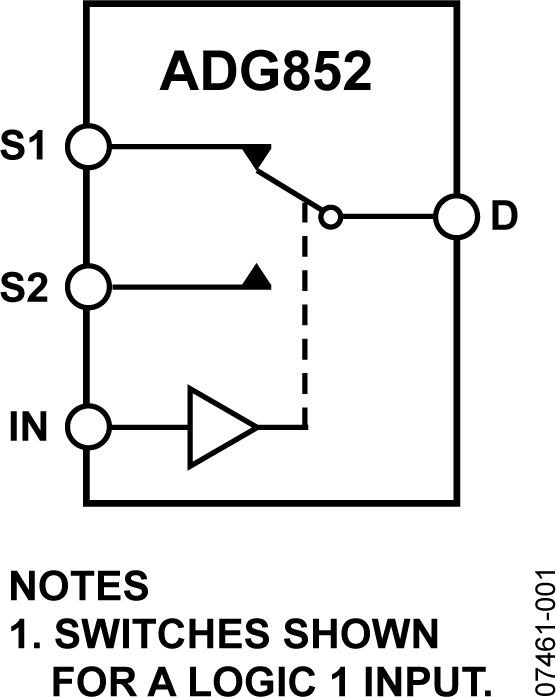

The ADG852 is a low voltage CMOS single-pole, double-throw (SPDT) switch. This device offers ultralow on resistance of less than 1 Ω over the full temperature range. The ADG852 is fully specified for 5.5 V and 3.3 V supply operation.

Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG852 exhibits break-before-make switching action.

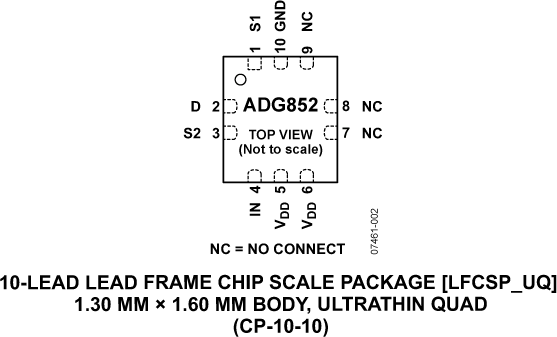

The ADG852 is available in a 1.30 mm × 1.60 mm 10-lead mini LFCSP.

PRODUCT HIGHLIGHTS

<1 Ω over full temperature range of −40°C to +85°C.
Single 1.8 V to 5.5 V operation.
Compatible with 1.8 V CMOS logic.
High current handling capability (300 mA continuous current per channel).
Low THD + N: 0.08% typical.
1.30 mm × 1.60 mm, 10-lead mini LFCSP.

APPLICATIONS

Cellular phones
PDAs
MP3 players
Power routing
Battery-powered systems
PCMCIA cards
Modem
Audio and video signal routing
Communication systems
