ADG1704

RECOMMENDED FOR NEW DESIGNS

Low Voltage, 2.4Ω 4:1 Multiplexer in 2mm × 2mm LGA Package

Analog Devices ADG1704 Product Info

10 February 2026 4

Features

±1.08V to ±2.75V dual supply
+1.08V to +5.5V single supply
Low on resistance 2.4Ω

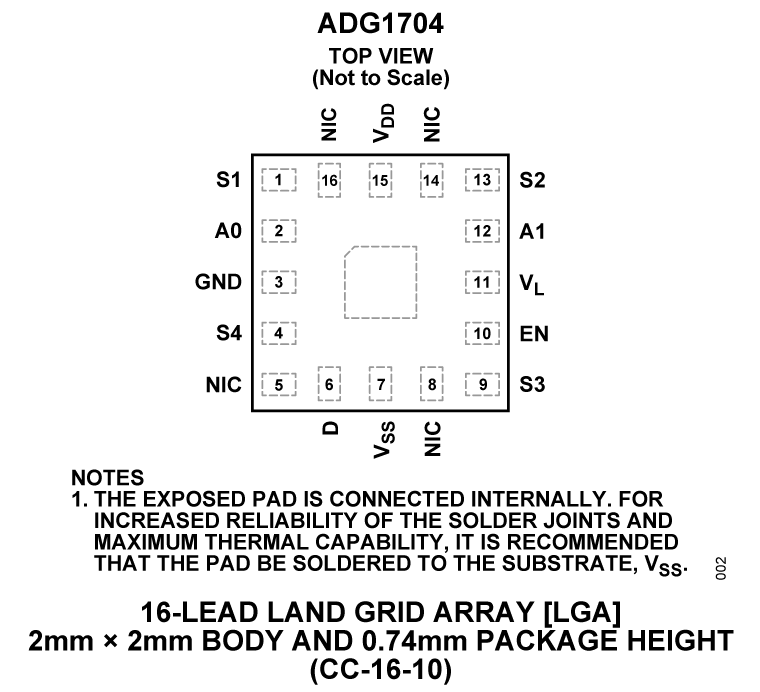

16-lead, 2mm × 2mm LGA

1.8V and 3V JEDEC compliant logic
Fully specified at +5V, +3.3V, +1.8V, and ±2.5V
Rail-to-rail signal range
−40°C to +125°C operating temperature range

Part details & applications

The ADG1704 is an analog 4:1 multiplexer and operates with a lowvoltage single supply range from +1.08V to +5.5V or a low-voltage dual supply range from ±1.08V to ±2.75V. An EN input is used to disable all of the switches.

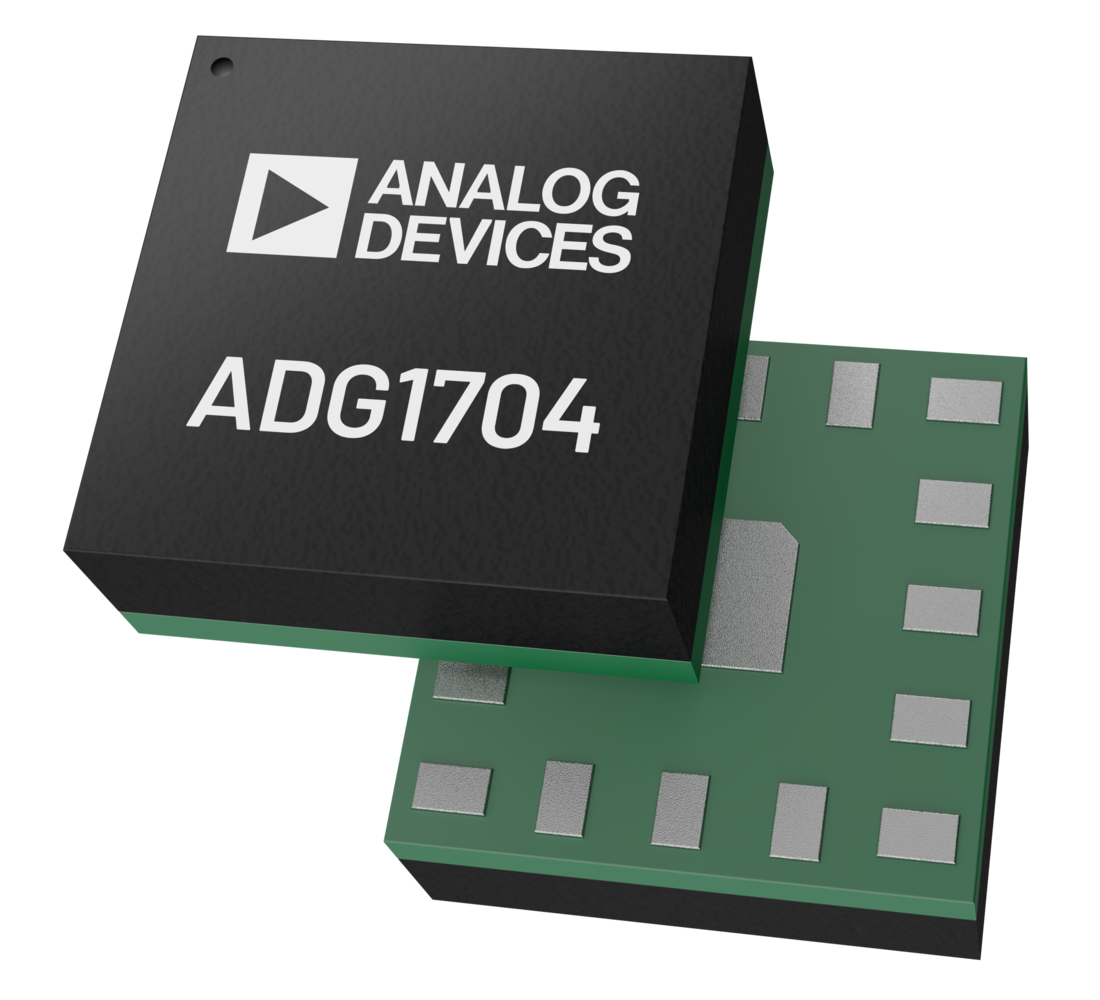

The ADG1704 is designed for small size without compromising on performance. The 2mm × 2mm land grid array (LGA) package is ideal for a broad range of applications where area is a concern.

The ADG1704 has a low on resistance of just 2.4Ω and a rail-to-rail input signal range. Each channel conducts equally well in both directions when on. The switches are turned on with a Logic 1 input on the corresponding digital control line, and the digital control inputs are 1.8V and 3V JEDEC compliant for ease of use with microcontrollers and field programmable gate arrays (FPGAs).

APPLICATIONS

Automated test equipment
Data acquisition systems
Medical equipment
FPGA and microcontroller systems
Audio and video signal routing
Communications systems
Relay replacement
