Analog Devices ADG1634L Product Info

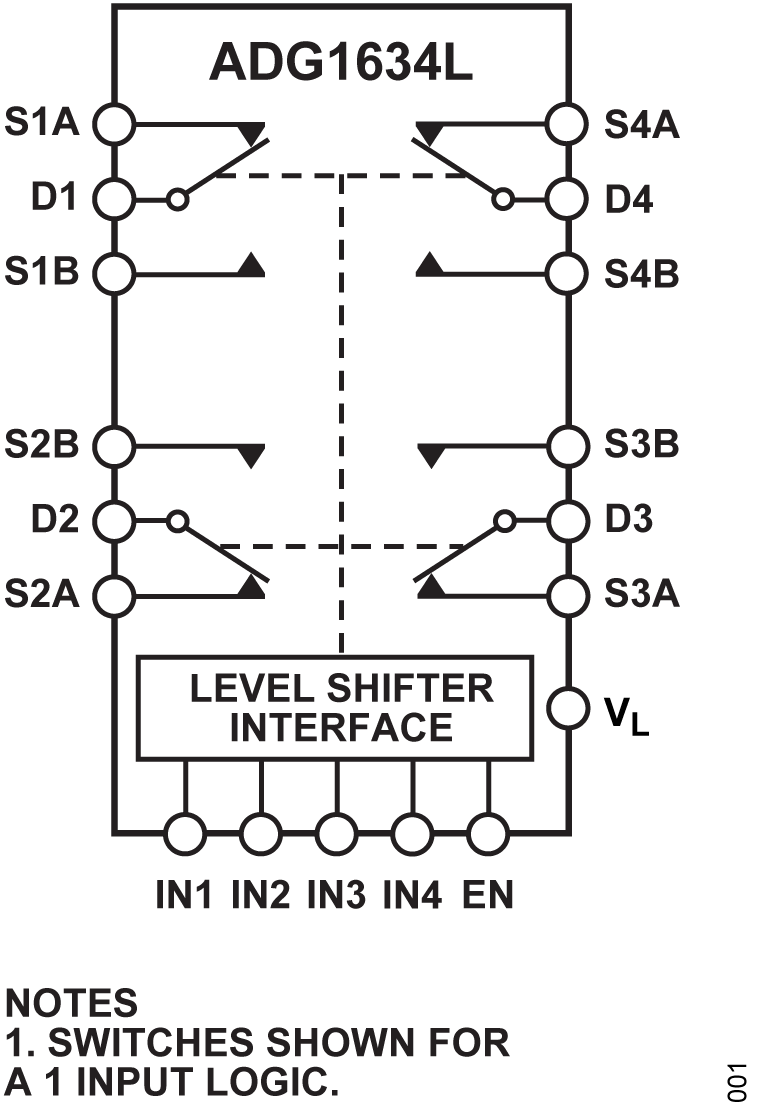

The ADG1634L is a monolithic industrial CMOS (iCMOS^®) analog switch comprising four independently selectable single-pole, double-throw (SPDT) switches, respectively.

All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. An EN input on the ADG1634L is used to enable or disable the device. When disabled, all channels are switched off. The switch is enabled with a Logic 1 EN input, while the INx input defines the state of the SPDT switch (see Table 12 in the data sheet).

The ultralow on resistance and on-resistance flatness of the switch makes it an ideal solution for data acquisition and gain switching applications, where low distortion is critical. iCMOS construction ensures ultra low power dissipation, making the device ideally suited for portable and battery-powered instruments.

An external V_L supply provides flexibility for lower logic control. The ADG1634L is both 1.2 V and 1.8 V JEDEC standard compliant.

APPLICATIONS

• Communication systems
• Medical systems
• Audio signal routing
• Video signal routing
• Automatic test equipment
• Data acquisition systems
• Battery-powered systems
• FPGA and microcontroller systems
• Sample-and-hold systems
• Relay replacements

PRODUCT HIGHLIGHTS

1. 8.2 Ω maximum on resistance over temperature.
2. Minimum distortion.
3. V_L supply for low logic level compatibility.
4. JEDEC standard compliant for both 1.2 V and 1.8 V logic levels.
5. Guaranteed switch off when digital inputs are floating.

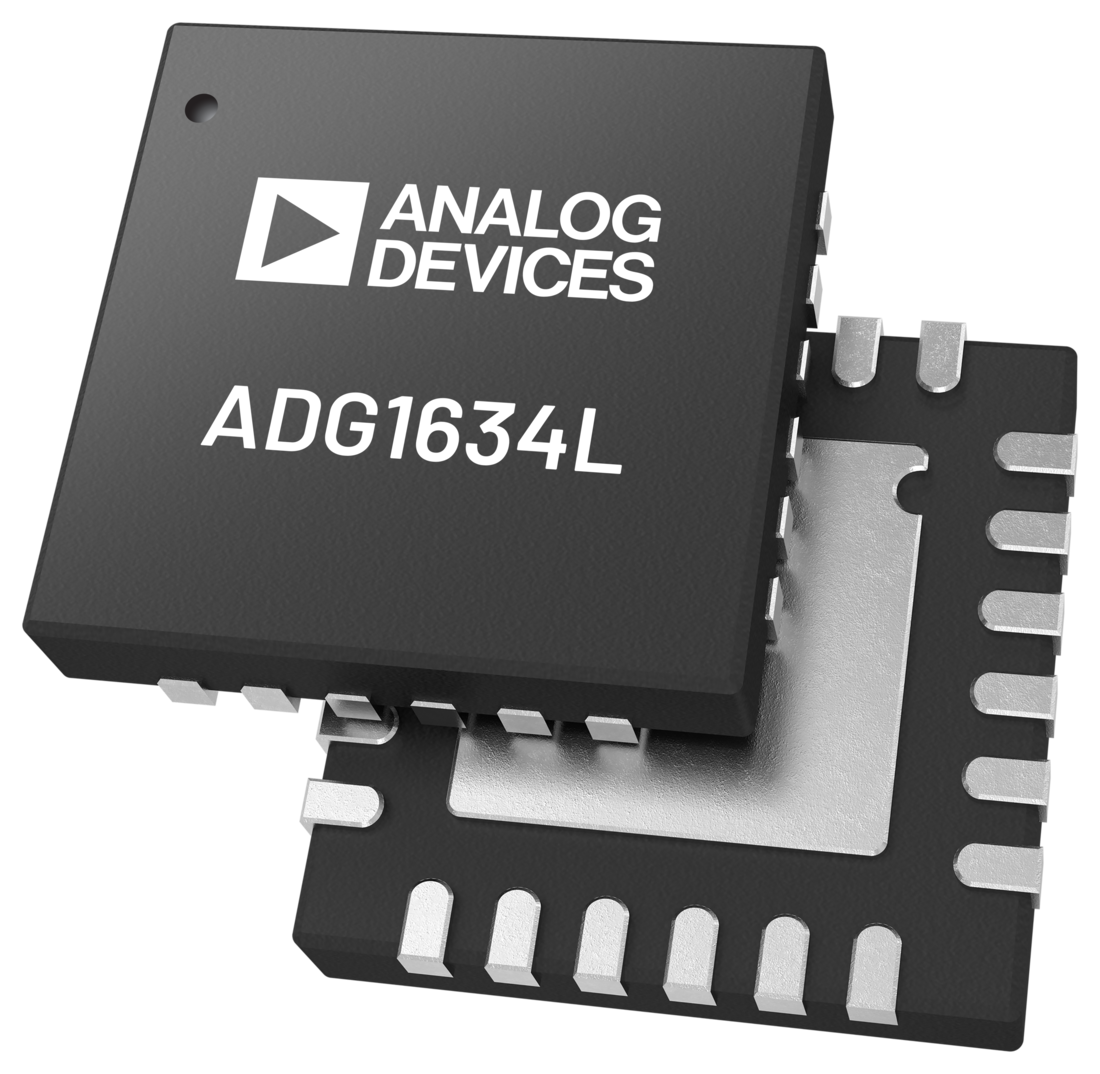

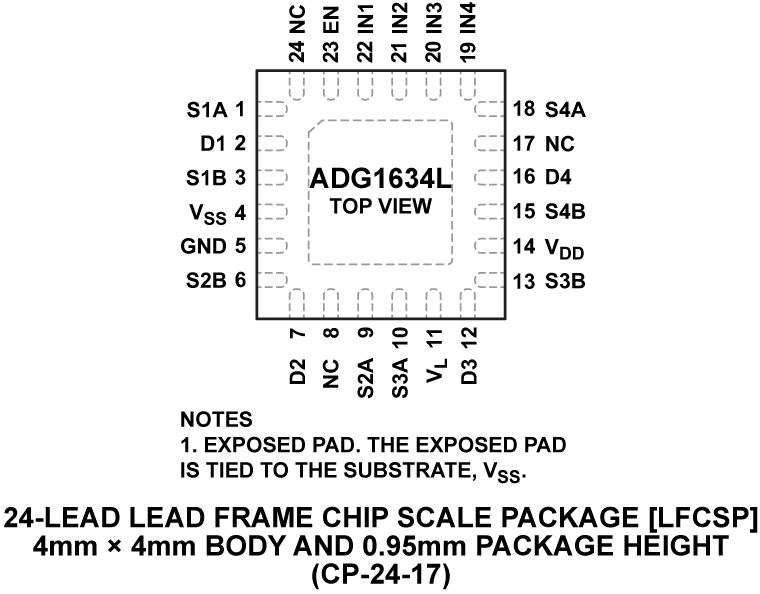

6. 24-lead, 4 mm × 4 mm LFCSP.
