ADG1207L

RECOMMENDED FOR NEW DESIGNS

Low Capacitance, 8-Channel iCMOS Multiplexer with 1.2 V and 1.8 V JEDEC Logic Compliance

Analog Devices ADG1207L Product Info

10 February 2026 5

Features

<1 pC charge injection over full signal range
1.5 pF off capacitance
120 Ω on resistance
Fully specified at ±15 V/+12 V
V_L supply for low logic-level compatibility
- 1.8 V JEDEC standard compliant (JESD8-7A)
- 1.2 V JEDEC standard compliant (JESD8-12A.01)

Rail-to-rail operation
Break-before-make switching action

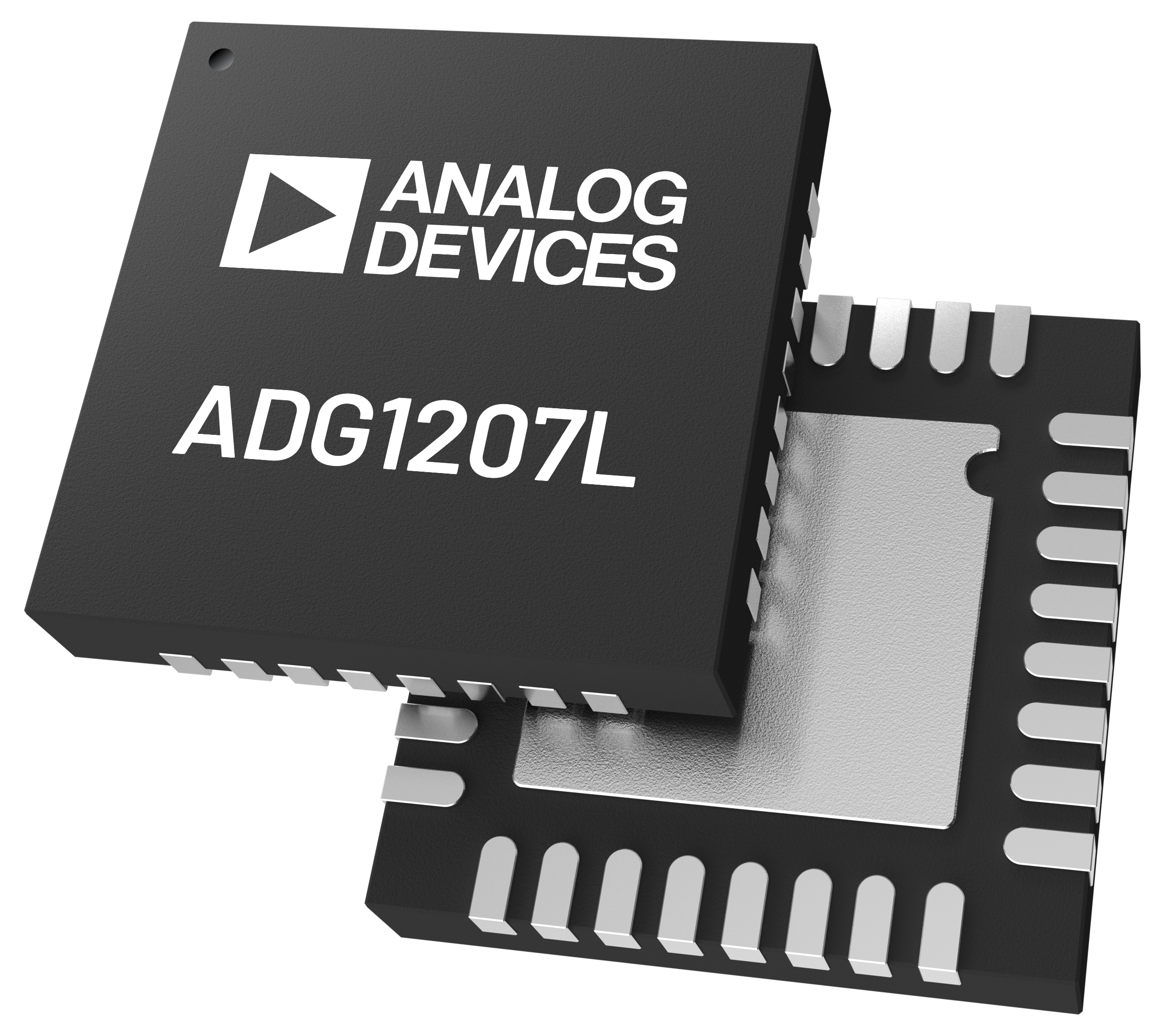

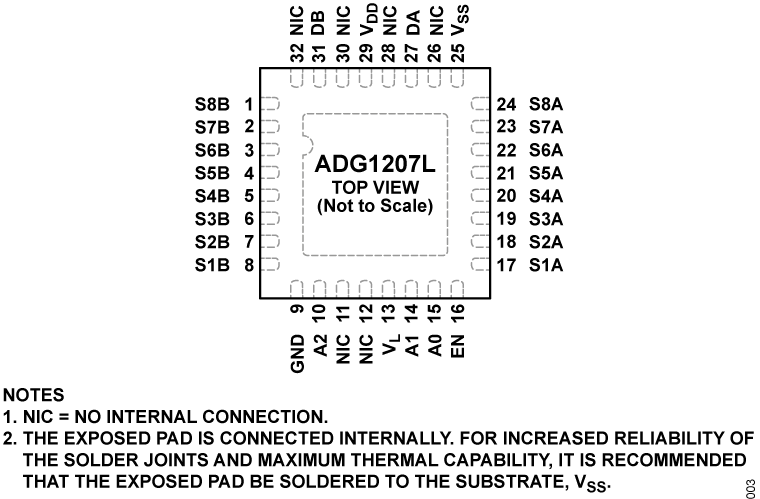

32-lead, 5 mm × 5 mm LFCSP

Part details & applications

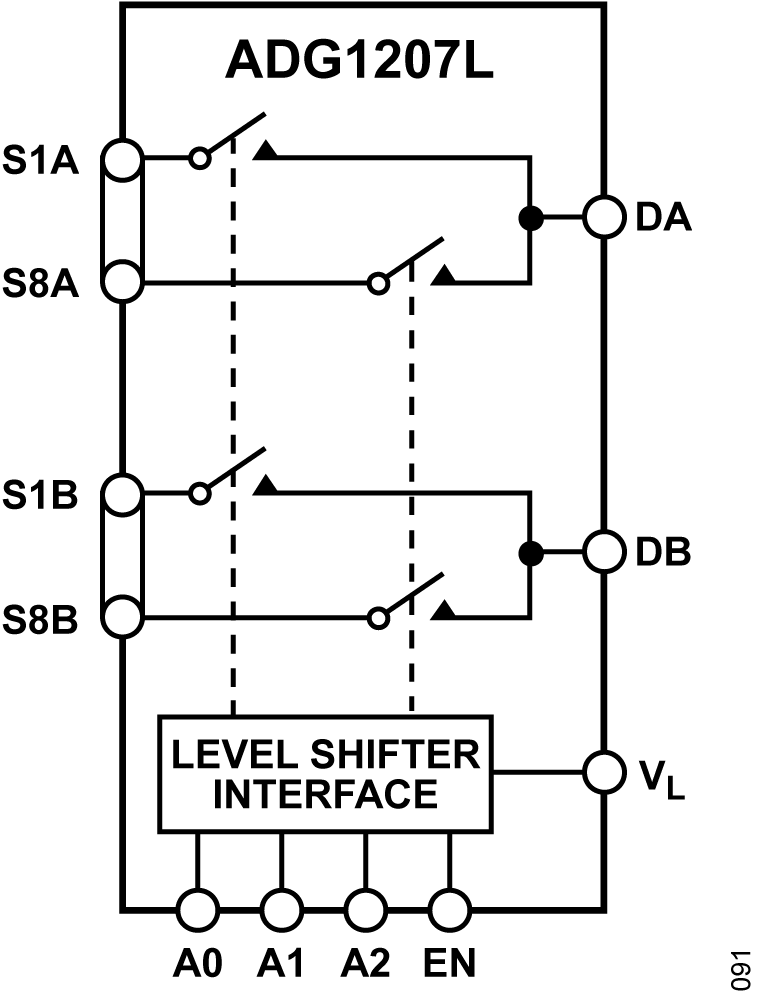

The ADG1206L/ADG1207L are monolithic iCMOS^® analog multiplexers comprising sixteen single channels and eight differential channels, respectively. The ADG1206L switches one of sixteen inputs to a common output, as determined by the 4‑bit binary address lines A0, A1, A2, and A3. The ADG1207L switches one of eight differential inputs to a common differential output, as determined by the 3-bit binary address lines A0, A1, and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off. When on, each channel conducts equally well in both directions and has an input signal range that extends to the supplies.

An external low voltage (V_L) supply provides flexibility for lower logic control. The ADG1206L/ADG1207L are both 1.2 V and 1.8 V JEDEC standard compliant.

APPLICATIONS

Audio and video routing
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Communication systems
FPGA and microcontroller systems
