ADF7030-1

NOT RECOMMENDED FOR NEW DESIGNS

High Performance, Sub GHz Radio Transceiver IC

Analog Devices ADF7030-1 Product Info

10 February 2026 4

Features

Radio frequency (RF) ranges
- 169.4 MHz to 169.6 MHz
- 426 MHz to 470 MHz
- 863 MHz to 960 MHz
Data rates
- 2FSK/2GFSK: 0.1 kbps to 300 kbps
- 4FSK/4GFSK: 1 kbps to 360 kbps (transmit only)
Dual power amplifiers (PAs)
Programmable receiver channel bandwidth from 2.6 kHz to 406 kHz
Receiver (Rx) performance
- Up to 97 dB blocking at ±20 MHz offset
- Up to 72 dB adjacent channel rejection
- −134.3 dBm sensitivity at 0.1 kbps
- −121.3 dBm sensitivity at 2.4 kbps
Transmitter (Tx) performance
- −20 dBm to +17 dBm range with 0.1 dB step resolution
- Very low output power variation vs. temperature and supply
Low active current
- 50 mA Tx current at 17 dBm
- 21.2 mA Rx current at12.5 kbps
Ultralow sleep current
- 10 nA with memory retained

Host microprocessor interface
- Easy to use programming serial peripheral interface (SPI)
- Configurable 8-bit general-purpose input/output (GPIO) bus
On-chip ARM Cortex-M0 processor for
- Radio control and calibration
- Packet management
- Clear channel assessment (CCA)
IEEE802.15.4g support
- Frame format
- Data whitening
- Dual-sync word detection
- Forward error correction (FEC) and interleaving
Suitable for systems

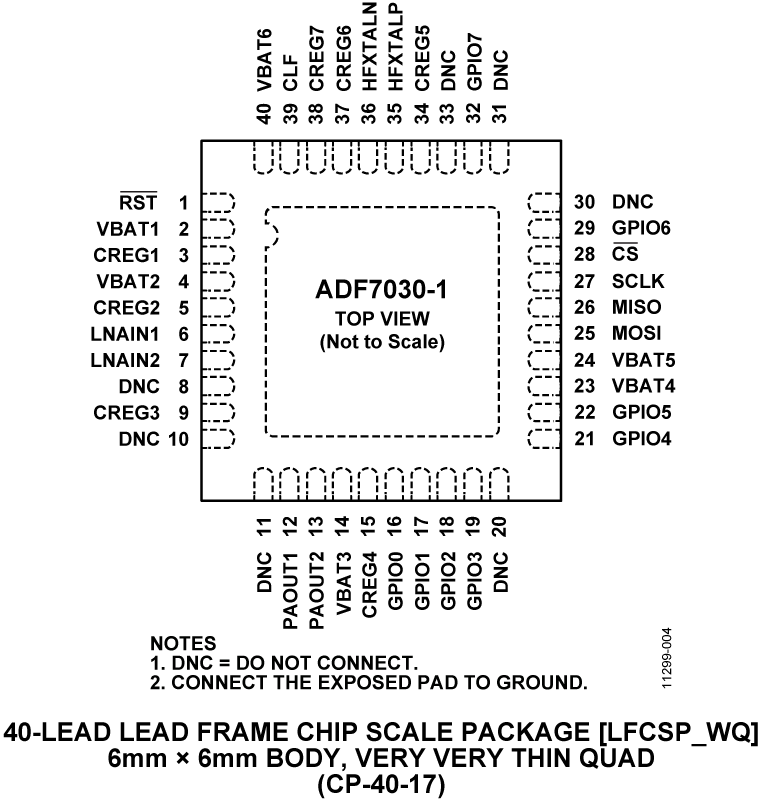

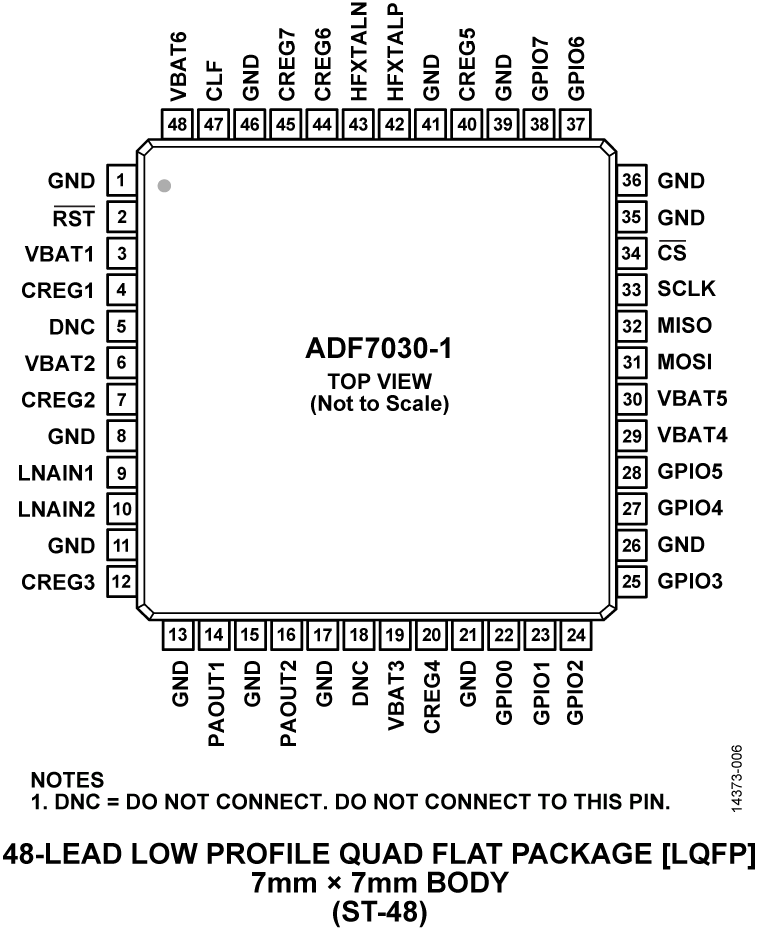

Part details & applications

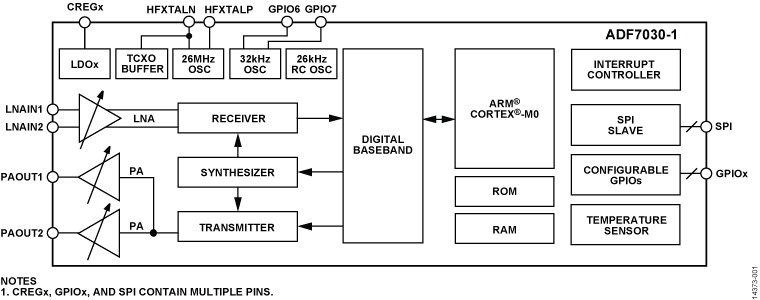

The ADF7030-1 is a fully integrated, radio transceiver achieving high performance at very low power. The ADF7030-1 is ideally suited for applications that require long range, network robustness, and long battery life. It is suitable for applications that operate in the ISM, SRD, and licensed frequency bands at 169.4 MHz to 169.6 MHz, 426 MHz to 470 MHz, and 863 MHz to 960 MHz. It provides extensive support for standards-based protocols like IEEE802.15.4g while also providing flexibility to support a wide range of proprietary protocols.

The highly configurable low intermediate frequency (IF) receiver supports a large range of receiver channel bandwidths from 2.6 kHz to 406 kHz. This range of receiver channel bandwidths allows the ADF7030-1 to support ultranarrow-band, narrow-band, and wideband channel spacing.

The ADF7030-1 features two independent PAs supporting output power ranges of −20 dBm to +13 dBm and −20 dBm to +17 dBm. The PAs support ultrafine adjustment of the power with a step resolution of 0.1 dB. The PA output power is exceptionally robust over temperature and voltage. The PAs have an automatic power ramp control to limit spectral splatter to meet regulatory standards.

The ADF7030-1 features an on-chip ARM^® Cortex^®-M0 processor that performs radio control, radio calibration, and packet management. Cortex-M0 eases the processing burden of the host processor because the ADF7030-1 integrates the lower layers of a typical communication protocol stack. This internal processor also permits the download and execution of Analog Devices, Inc., provided firmware modules that can extend the functionality of the ADF7030-1.

The ADF7030-1 has two packet modes: generic packet mode and IEEE802.15.4g mode. In generic packet mode, the packet format is highly flexible and fully programmable, thereby ensuring its compatibility with proprietary packet formats. In IEEE802.15.4g
