ADAQ4216

RECOMMENDED FOR NEW DESIGNS

16-Bit, 2MSPS, μModule Data-Acquisition Solution

Analog Devices ADAQ4216 Product Info

10 February 2026 4

Features

Highly performance
- Throughput: 2MSPS, no latency
- INL: ±3ppm maximum from −40°C to 105°C
- Total system dynamic range: 123dB typical
- SNR: 97.5dBFS typical, THD: −122dBc typical
- Offset error drift: +5.05μV/°C maximum
- Gain error drift: +1.17ppm/°C maximum
Ease of use features reduce system complexity
- Second-order, 270kHz anti-aliasing filter
- High-Z PGIA gain options: 1/3, 5/9, 20/9, 20/3
- Flexible external reference voltage: 4.096V or 5V
- Differential input voltage ranges, ±REFIN/Gain: ±15V, ±9V, ±2.25V, ±0.75V
- Wide input common-mode voltage range: −8V to +10V
- Low input bias current: ±20pA typical

High density solution reduces system footprint
- 14mm × 9mm, 0.8mm pitch, 178-ball CSP BGA
- 4× footprint reduction vs. equivalent discrete solution
- On-board reference buffer with an internal VCM generation
Total power dissipation: 445mW typical at 2MSPS
Flexi-SPI digital interface
- 1, 2, or 4 SDO lanes allows slower SCK
- Echo clock mode simplifies use of digital isolator
- Compatible with 1.2V to 1.8V logic
- PGIA gain control (A0, A1) interface
- Extended sample resolution to 30-bits
- Overrange and synchronization bits

Part details & applications

The ADAQ4216 is a μModule^® precision data-acquisition (DAQ) signal chain solution that reduces the development cycle of a precision measurement system by transferring the signal-chain design challenge of component selection, optimization, and layout from the designer to the device. With a guaranteed maximum ±3ppm INL and no missing codes at 16 bits, the ADAQ4216 achieves unparalleled precision from −40°C to +105°C.

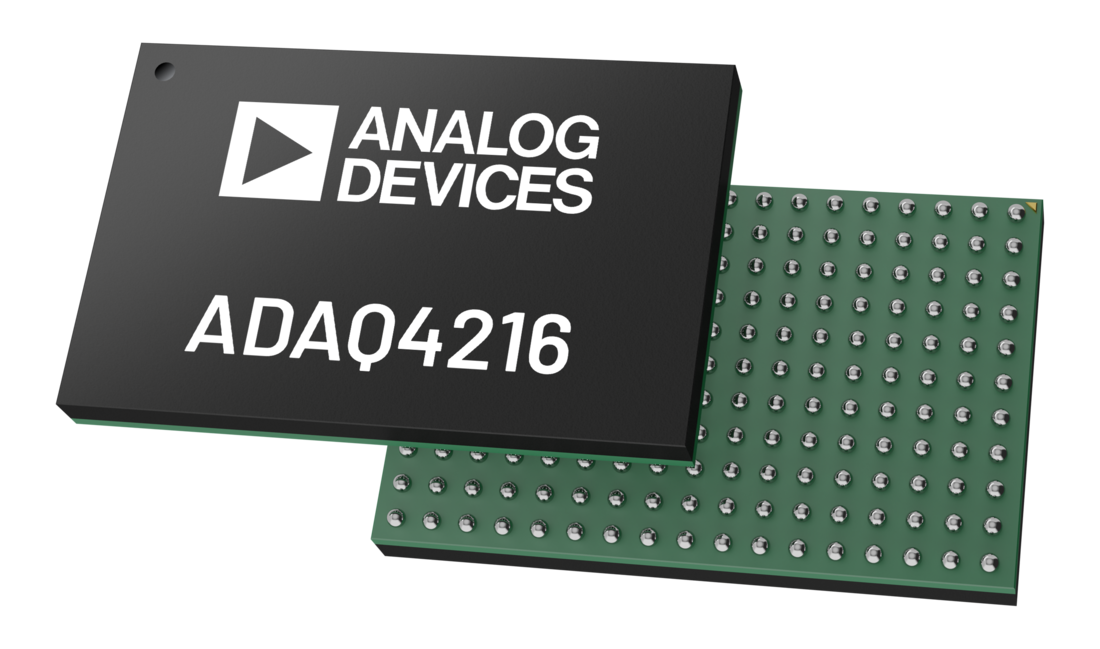

Using system-in-package (SIP) technology, the ADAQ4216 combines the common signal processing blocks required in a data-acquisition solution in a small footprint, 14mm × 9mm, 0.8mm pitch, 178-ball CSP_BGA package.

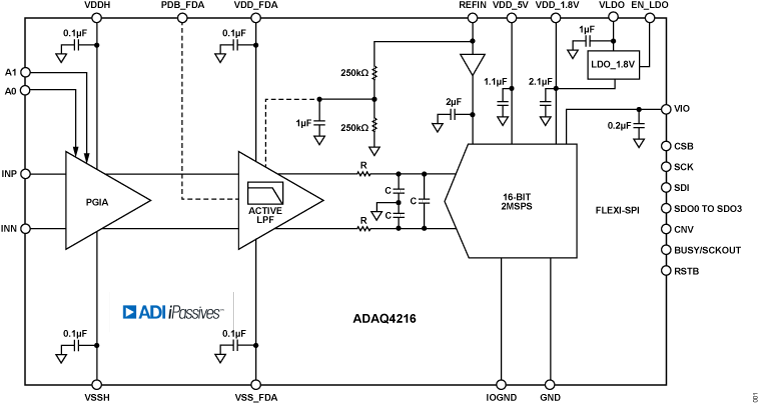

The ADAQ4216 integrates the following:

A low-noise, high-bandwidth programmable gain instrumentation amplifier (PGIA).
A second-order anti-aliasing filter.
A low-noise, low-distortion, high-bandwidth analog‐to‐digital converter (ADC) driver.
A high precision 16-bit, 2MSPS successive approximation register (SAR) ADC.
A 1.8V low dropout (LDO) regulator.
Performance critical passives.

Please see data sheet for the full description.

Applications

Automatic test equipment
Machine automation
Process controls
Medical and industrial instrumentation
Digital control loops
