Analog Devices ADG836L Product Info

• 0.5 Ω typical on resistance
• 0.8 Ω maximum on resistance at 125°C
• 1.65 V to 3.6 V operation
• Operating temperature range: −40°C to +125°C
• Guaranteed leakage specifications up to 125°C
• High current carrying capability: 300 mA continuous
• Rail-to-rail switching operation
• Fast switching times: <20 ns
• Typical power consumption: <0.1 µW

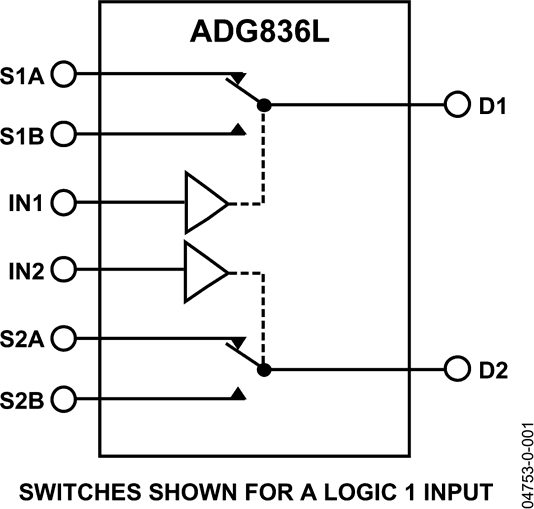

The ADG836L is a low voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultralow on resistance of less than 0.8 Ω over the full temperature range. The ADG836L is fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation.

Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG836L exhibits break-before-make switching action.

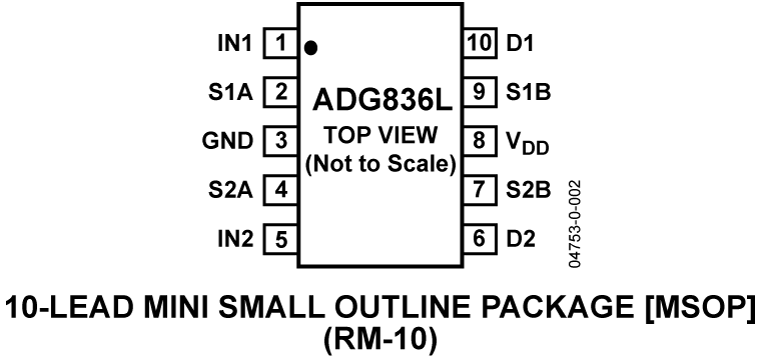

The ADG836L is available in a 10-lead package.

Product Highlights

1. Less than 0.8 Ω over full temperature range of −40°C to +125°C.
2. Single 1.65 V to 3.6 V operation.
3. Compatible with 1.8 V CMOS logic.
4. High current handling capability (300 mA continuous current at 3.3 V).
5. Low THD + N (0.02% typical).
6. Small 10-lead MSOP package.

Applications

• Cellular phones
• PDAs
• MP3 players
• Power routing
• Battery-powered systems
• PCMCIA cards
• Modems
• Audio and video signal routing
• Communication systems
