12-Bit, 2.6 GSPS/2.5 GSPS/2.0 GSPS, 1.3 V/2.5 V Analog-to-Digital Converter

Analog Devices AD9625 Product Info

10 February 2026 6

Features

  • 12-bit 2.5 GSPS ADC, no missing codes
  • SFDR = 79 dBc, AIN up to 1 GHz at −1 dBFS, 2.5 GSPS
  • SFDR = 77 dBc, AIN up to 1.8 GHz at −1 dBFS, 2.5 GSPS
  • SNR = 57.6 dBFS, AIN up to 1 GHz at −1 dBFS, 2.5 GSPS
  • SNR = 57 dBFS, AIN up to 1.8 GHz at −1 dBFS, 2.5 GSPS
  • Noise spectral density = −149.5 dBFS/Hz at 2.5 GSPS
  • Differential analog input: 1.2 V P-P
  • Differential clock input
  • 3.2 GHz analog input bandwidth, full power
  • High speed 6- or 8-lane JESD204B serial output Subclass 1: 6.50 Gbps at 2.6 GSPS
  • Two independent decimate by 8 or decimate by 16 filters with 10-bit NCOs
  • Supply voltages: 1.3 V, 2.5 V
    • Flexible digital output modes
    • Built-in selectable digital test patterns
  • Timestamp feature
  • Conversion error rate < 10−15

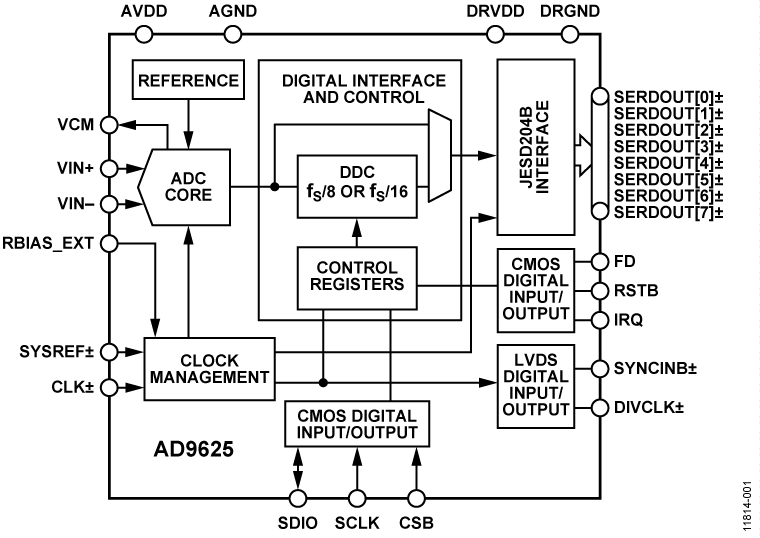

Part details & applications

The AD9625 is a 12-bit monolithic sampling analog-to-digital converter (ADC) that operates at conversion rates of up to 2.6 giga samples per second (GSPS). This product is designed for sampling wide bandwidth analog signals up to the second Nyquist zone. The combination of wide input bandwidth, high sampling rate, and excellent linearity of the AD9625 is ideally suited for spectrum analyzers, data acquisition systems, and a wide assortment of military electronics applications, such as radar and jamming/antijamming measures.

The analog input, clock, and SYSREF± signals are differential inputs. The JESD204B-based high speed serialized output is configurable in a variety of one-, two-, four-, six-, or eight-lane configurations. The product is specified over the industrial temperature range of −40°C to +85°C.

PRODUCT HIGHLIGHTS

  1. High performance: exceptional SFDR in high sample rate applications, direct RF sampling, and on-chip reference.
  2. Flexible digital data output formats based on the JESD204B specification.
  3. Control path SPI interface port that supports various product features and functions, such as data formatting, gain, and offset calibration values.

APPLICATIONS

  • Spectrum analyzers
  • Military communications
  • Radar
  • High performance digital storage oscilloscopes
  • Active jamming/antijamming
  • Electronic surveillance and countermeasures
