AD9559

RECOMMENDED FOR NEW DESIGNS

Dual PLL, Quad Input, Multiservice Line Card Adaptive Clock Translator

Analog Devices AD9559 Product Info

10 February 2026 5

Features

Supports GR-1244 Stratum 3 stability in holdover mode
Supports smooth reference switchover with virtually no disturbance on output phase
Supports Telcordia GR-253 jitter generation, transfer, and tolerance for SONET/SDH up to OC-192 systems
Supports ITU-T G.8262 synchronous Ethernet node clocks
Supports ITU-T G.823, G.824, G.825, and G.8261
Auto/manual holdover and reference switchover
Adaptive clocking allows dynamic adjustment of feedback dividers for use in OTN mapping/demapping applications

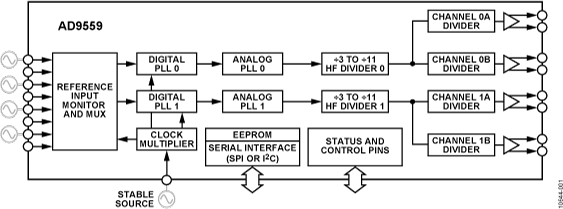

Dual digital PLL architecture with four reference inputs (single-ended or differential)
4x2 crosspoint allows any reference input to drive either PLL
Input reference frequencies from 2 kHz to 1250 MHz

Reference validation and frequency monitoring (2 ppm)
Programmable input reference switchover priority
20-bit programmable input reference divider
4 pairs of clock output pins with each pair configurable as a single differential LVDS/HSTL output or as 2 single-ended CMOS outputs
Output frequencies: 262 kHz to 1250 MHz
Programmable 17-bit integer and 23-bit fractional feedback divider in digital PLL
Programmable digital loop filter covering loop bandwidths from 0.1 Hz to 2 kHz
Low noise system clock multiplier
Optional crystal resonator for system clock input
On-chip EEPROM to store multiple power-up profiles
Pin program function for easy frequency translation configuration
Software controlled power-down

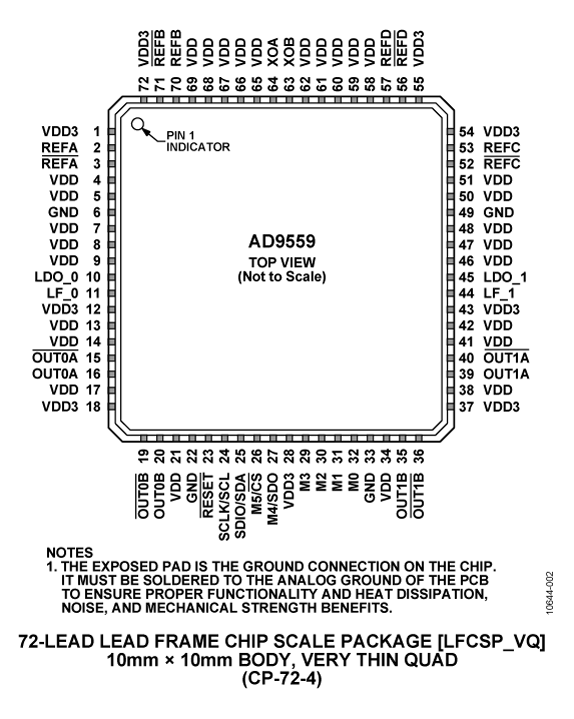

72-lead (10 mm × 10 mm) LFCSP package

Part details & applications

The AD9559 is a low loop bandwidth clock multiplier that provides jitter cleanup and synchronization for many systems, including synchronous optical networks (SONET/SDH). The AD9559 generates an output clock synchronized to up to four external input references. The digital PLL allows for reduction of input time jitter or phase noise associated with the external references. The digitally controlled loop and holdover circuitry of the AD9559 continuously generates a low jitter output clock even when all reference inputs have failed.

The AD9559 operates over an industrial temperature range of −40°C to +85°C. If a single DPLL version of this part is needed, refer to the AD9557.

Applications

Network synchronization, including Synchronous Ethernet and OTN mapping/de-mapping
Cleanup of reference clock jitter
SONET/SDH clocks up to OC-192, including FEC
Stratum 3 holdover, jitter cleanup, and phase transient control
Wireless base station controllers
Cable infrastructure
Data communications
