Analog Devices MAX154 Product Info

• One-Chip Data Acquisition System
• Four or Eight Analog Input Channels
• 2.5µs per Channel Conversion Time
• Internal 2.5V Reference
• Built-In Track/Hold Function
• ½ LSB Error Specification
• Single +5V Supply Operation
• No External Clock
• New Space-Saving SSOP Package

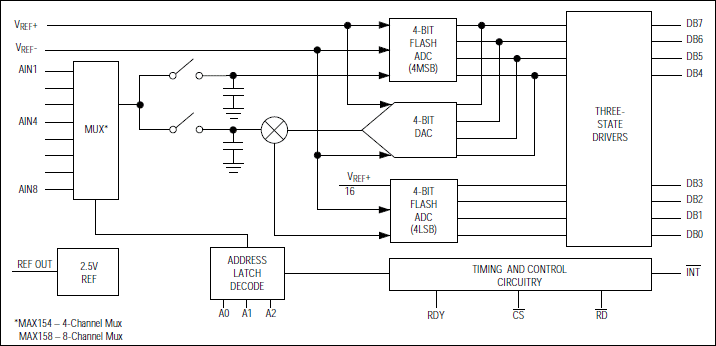

The MAX154/MAX158 are high-speed multi-channel analog-to-digital converters (ADCs). The MAX154 has four analog input channels while the MAX158 has eight channels. Conversion time for both devices is 2.5µs. The MAX154/MAX158 also feature a 2.5V on-chip reference, forming a complete high-speed data acquisition system.

Both converters include a built-in track/hold, eliminating the need for an external track/hold. The analog input range is 0V to +5V, although the ADC operates from a single +5V supply.

Microprocessor interfaces are simplified by the ADC's ability to appear as a memory location or I/O port without the need for external logic. The data outputs use latched, three-state buffer circuitry to allow direct connection to a microprocessor data bus or system input port.

Applications

• Audio Instrumentation
• Digital Signal Processing (DSP)
• High-Speed Data Acquisition
• High-Speed Servo Control
• Telecommunications
