AD9364

RECOMMENDED FOR NEW DESIGNS

1 x 1 RF Agile Transceiver

Analog Devices AD9364 Product Info

10 February 2026 6

Features

RF 1 × 1 transceiver with integrated 12-bit DACs and ADCs
Band: 70 MHz to 6.0 GHz
Supports TDD and FDD operation
Tunable channel bandwidth: <200 kHz to 56 MHz
Dual receivers: 6 differential or 12 single-ended inputs

Superior receiver sensitivity with a noise figure < 2.5 dB
RX gain control
Real-time monitor and control signals for manual gain
Independent automatic gain control
See data sheet for additional features

Part details & applications

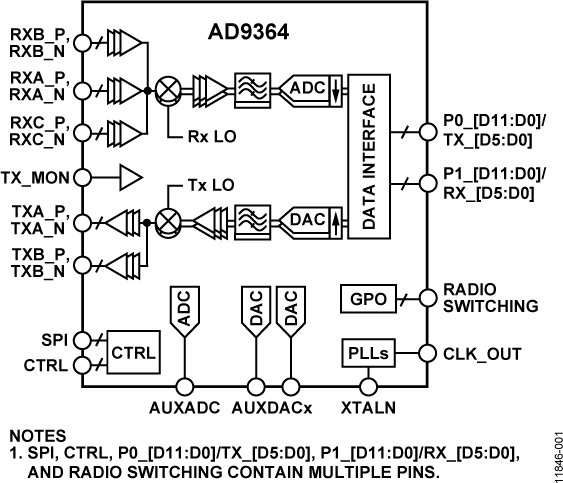

The AD9364 is a 1 x 1 channel high performance, highly integrated RF Agile Transceiver™. Its programmability and wideband capability make it ideal for a broad range of transceiver applications. The device combines an RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor. The AD9364 operates in the 70 MHz to 6.0 GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56 MHz are supported.

The AD9364 is packaged in a 10 mm × 10 mm, 144-ball chip scale package ball grid array (CSP_BGA).

Applications

Point to point communication systems
Femtocell/picocell/microcell base stations
General-purpose radio systems
