AD9209

RECOMMENDED FOR NEW DESIGNS

12-Bit, 4GSPS, JESD204B/C, Quad Analog-to-Digital Converter

Analog Devices AD9209 Product Info

10 February 2026 6

Features

Flexible reconfigurable common platform design

Supports single-, dua-l, and quad-band
Datapaths and DSP blocks are fully bypassable
On-chip PLL with multichip synchronization

External RF clock input option for off-chip PLL
Supports clock input frequencies up to 12 GHz

Maximum ADC sample rate up to 4 GSPS

Maximum data rate up to 4 GSPS using JESD204C
8 GHz analog input bandwidth (−3 dB)

ADC ac performance at 4 GSPS

Differential input voltage: 1.4 V p-p
Noise density: −151.5 dBFS/Hz
HD2: −69 dBFS at 2.7 GHz (A_IN at −1 dBFS)
HD3: −76 dBFS at 2.7 GHz (A_IN at −1 dBFS)
Worst other (excluding HD2 and HD3): −79 dBFS at 2.7 GHz

Auxiliary features

Phase coherent fast frequency hopping
ADC clock driver with selectable divide ratios
On-chip temperature monitoring unit
Flexible GPIOx pins

Versatile digital features

Selectable decimation filters
Configurable DDCs

8 fine complex DDCs and 4 coarse complex DDCs
48-bit NCO per DDC

Programmable 192-tap PFIR filter for receive equalization

Supports 4 different profile settings loaded via GPIO

Programmable delay per datapath
Receive AGC support

Fast detect with low latency for fast AGC control
Signal monitor for slow AGC control
Dedicated AGC support pins

SERDES JESD204B/JESD204C interface, 8 lanes up to 24.75 Gbps

Part details & applications

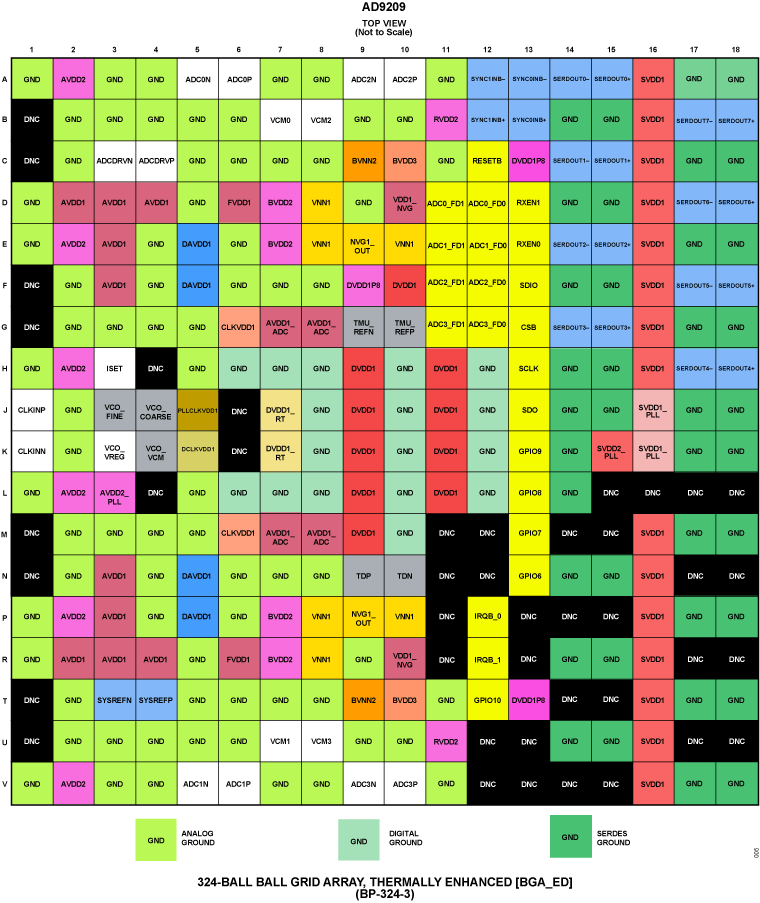

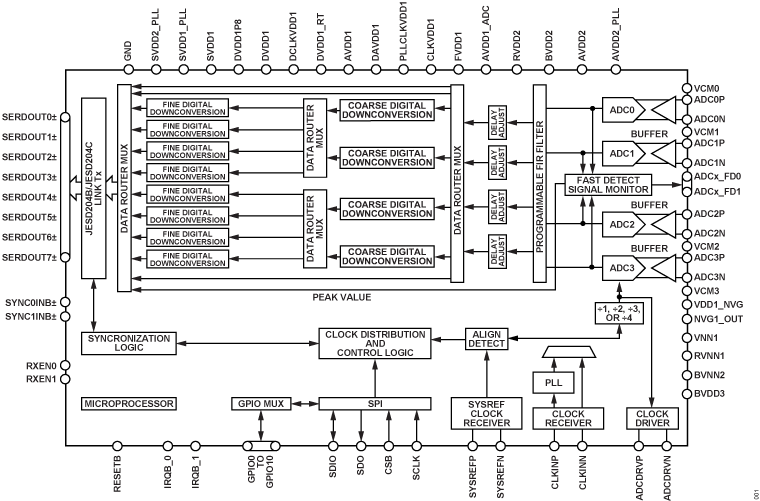

The AD9209 is a quad, 12-bit, 4 GSPS analog-to-digital converter (ADC). The ADC input features an on-chip wideband buffer with overload protection. This device is designed to support applications capable of direct sampling wideband signals up to 8 GHz. An on-chip, low phase noise, phase-locked loop (PLL) clock synthesizer is available to generate the ADC sampling clock, simplifying the printed circuit board (PCB) distribution of a high frequency clock signal. A clock output buffer is available to transmit the ADC sampling clock to other devices.

The quad ADC cores have code error rates (CER) better than 1 × 10−20. Low latency fast detection and signal monitoring are available for automatic gain control (AGC) purposes. A flexible 192-tap programmable finite impulse response filter (PFIR) is avail-able for digital filtering and/or equalization. Programmable integer and fractional delay blocks support compensation for analog delay mismatches.

The digital signal processing (DSP) block consisting of two coarse digital down converters (DDCs) and four fine DDCs per pair of ADCs. Each ADC can operate with one or two main DDC stages in support of multiband applications. The four additional fine DDC stages are available to support up to four bands per ADC The 48-bit numerically controlled oscillators (NCOs) associated with each DDC support fast frequency hopping (FFH) while maintaining synchronization with up to 16 unique frequency assignments selected via the general-purpose input and output (GPIOx) pins or the serial port interface (SPI).

The AD9209 supports one or two JTx links that can be configured for either JESD204B or JESD204C subclass operation, thus allowing for different datapath configurations for each ADC. Multidevice synchronization is supported through the SYSREF± input pins.

APPLICATIONS

Wireless communications infrastructure
Microwave point-t
