AD9144

RECOMMENDED FOR NEW DESIGNS

Quad, 16-Bit, 2.8 GSPS, TxDAC+® Digital-to-Analog Converter

Analog Devices AD9144 Product Info

10 February 2026 5

Features

  • Supports input data rate >1 GSPS
  • Proprietary low spurious and distortion design
    • 6-carrier GSM IMD = 77 dBc at 75 MHz IF
    • SFDR = 82 dBc at dc IF, −9 dBFS
    • Flexible 8-lane JESD204B interface
    • Support quad or dual DAC mode at 2.8 GSPS
  • Multiple chip synchronization
    • Fixed latency
    • Data generator latency compensation
  • Selectable 1×, 2×, 4×, 8× interpolation filter
    • Low power architecture
  • Input signal power detection
    • Emergency stop for downstream analog circuitry protection
  • Transmit enable function allows extra power saving
  • High performance, low noise phase-locked loop (PLL) clock multiplier
  • Digital inverse sinc filter
  • Low power: 1.6 W at 1.6 GSPS, 1.7 W at 2.0 GSPS, full operating conditions

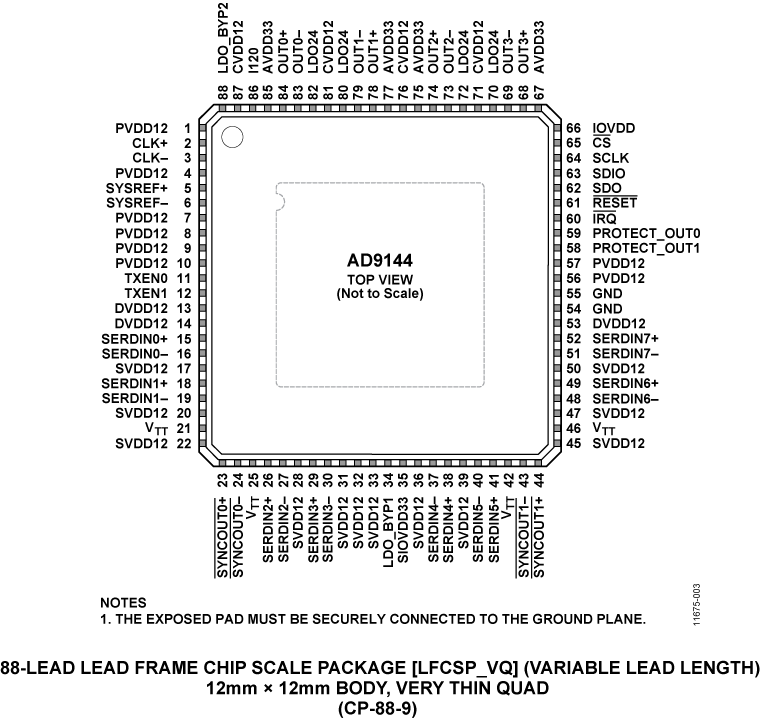

  • 88-lead LFCSP with exposed pad

Part details & applications

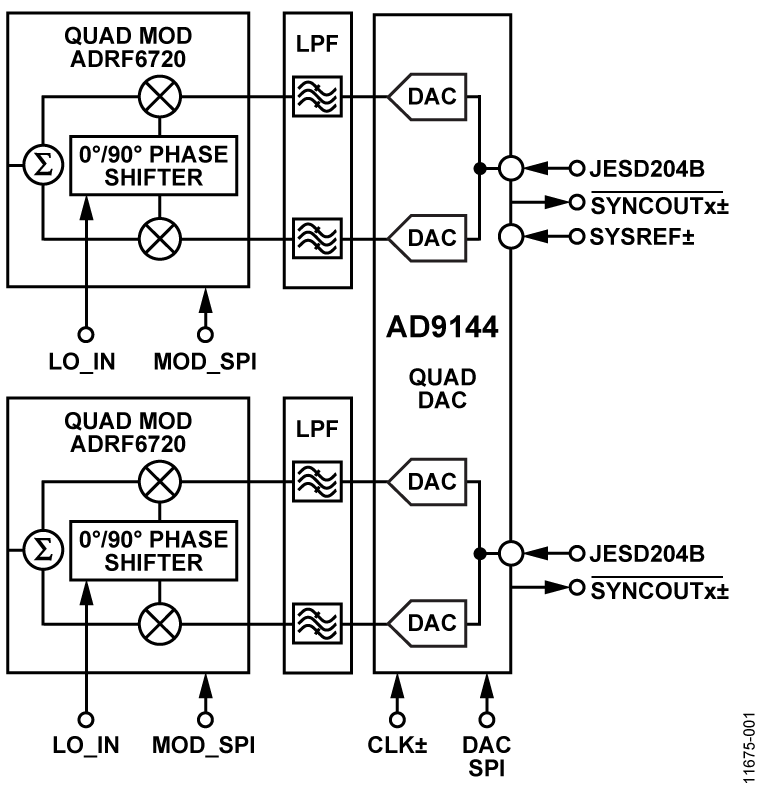

The AD9144 is a quad, 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum sample rate of 2.8 GSPS, permitting a multicarrier generation up to the Nyquist frequency. The DAC outputs are optimized to interface seamlessly with the ADRF6720 analog quadrature modulator (AQM) from Analog Devices, Inc. An optional 3-wire or 4-wire serial port interface (SPI) provides for programming/readback of many internal parameters. Full-scale output current can be programmed over a typical range of 13.9 mA to 27.0 mA. The AD9144 is available in an 88-lead LFCSP.

Product Highlights

  • Greater than 1 GHz, ultrawide complex signal bandwidth enables emerging wideband and multiband wireless applications.
  • Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.
  • JESD204B Subclass 1 support simplifies multichip synchronization in software and hardware design.
  • Fewer pins for data interface width with a serializer/deserializer (SERDES) JESD204B eight-lane interface.
  • Programmable transmit enable function allows easy design balance between power consumption and wake-up time.
  • Small package size with 12 mm × 12 mm footprint.

Applications

  • Wireless communications
    • 3G/4G W-CDMA base stations
    • Wideband repeaters
    • Software defined radios
  • Wideband communications
    • Point-to-point
    • Local multipoint distribution service (LMDS) and multichannel multipoint distribution service (MMDS)
    • Transmit diversity, multiple input/multiple output (MIMO)
    • Instrumentation
    • Automated test equipment
