AD808

LAST TIME BUY

622 Mbps, Low Power, Post-Amp/Clock and Data Recovery IC

Analog Devices AD808 Product Info

10 February 2026 6

Features

Meets CCITT G.958 Requirements for STM-4 Regenerator—Type A
Meets Bellcore TR-NWT-000253 Requirements for OC-12
Output Jitter: 2.5 Degrees RMS
622 Mbps Clock Recovery and Data Retiming
Accepts NRZ Data, No Preamble Required
Phase-Locked Loop Type Clock Recovery—No Crystal Required
Quantizer Sensitivity: 4 mV
Level Detect Range: 10 mV to 40 mV, Programmable
Single Supply Operation: +5 V or –5.2 V
Low Power: 400 mW
10 KH ECL/PECL Compatible Output
Package: 16-Lead Narrow 150 mil SOIC

Part details & applications

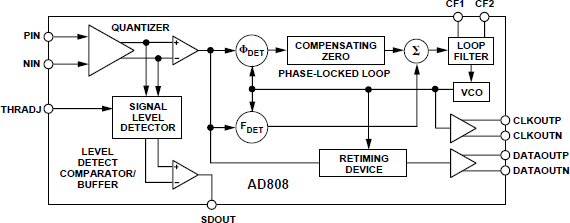

The AD808 provides the receiver functions of data quantization, signal level detect, clock recovery and data retiming for 622 Mbps NRZ data. The device, together with a PIN diode/preamplifier combination, can be used for a highly integrated, low cost, low power SONET OC-12 or SDH STM-4 fiber optic receiver.
