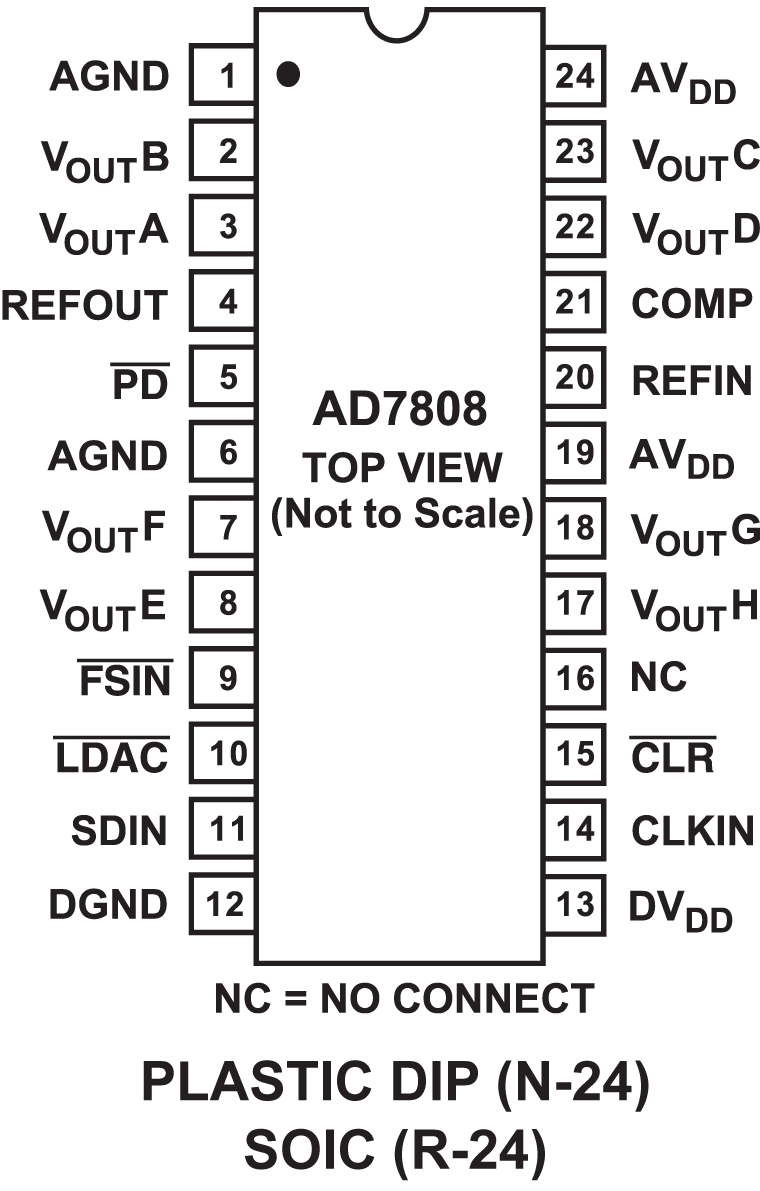

AD7808

PRODUCTION

+3.3 V to +5 V Quad/Octal 10-Bit DAC

Analog Devices AD7808 Product Info

10 February 2026 6

Features

Four 10-Bit DACs in One Package
Serial and Parallel Loading Facilities Available
AD7804 Quad 10-Bit Serial Loading
AD7805 Quad 10-Bit Parallel Loading
AD7808 Octal 10-Bit Serial Loading
AD7809 Octal 10-Bit Parallel Loading
+3.3 V to +5 V Operation
Power-Down Mode
Power-On Reset

Standby Mode (All DACs/Individual DACs)
Low Power All CMOS Construction
10-Bit Resolution
Double Buffered DAC Registers
Dual External Reference Capability

Part details & applications

The AD7804/AD7808 are quad/octal 10-bit digital-to-analog converters, with serial load capabilities, while the AD7805/AD7809 are quad/octal 10-bit digital-to-analog converters with parallel load capabilities. These parts operate from a +3.3 V to +5 V (10%) power supply and incorporates an on-chip reference. These DACs provide output signals in the form of V_BIAS V_SWING. V_SWING is derived internally from V_BIAS. On-chip control registers include a system control register and channel control registers. The system control register has control over all DACs in the package. The channel control registers allow individual control of DACs. The complete transfer function of each individual DAC can be shifted around the V_BIAS point using an on-chip Sub DAC. All DACs contain double buffered data inputs, which allow all analog outputs to be simultaneously updated using the asynchronous LDAC input.

Applications

Optical Disk Drives

Instrumentation and Communication Systems

Process Control and Voltage Setpoint Control

Trim Potentiometer Replacement

Automatic Calibration

Data Sheet, Rev. A, 12/98
