Analog Devices AD7661 Product Info

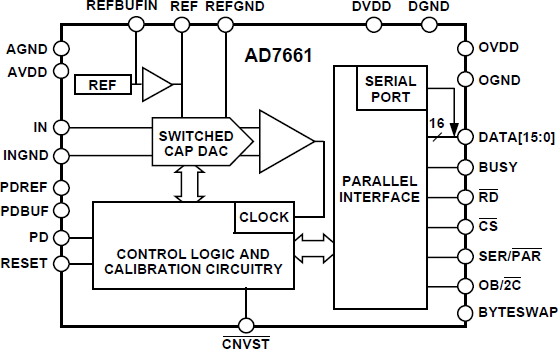

The AD7661 is a 16-bit, 100 kSPS, charge redistribution SAR analog-to-digital converter that operates from a single 5 V power supply. The part contains a high speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system interface ports. The AD7661 is hardware factory-calibrated and comprehensively tested to ensure ac parameters such as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.

The AD7661 is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from –40°C to +85°C.

PRODUCT HIGHLIGHTS

1. Fast Throughput.
   The AD7661 is a 100 kSPS, charge redistribution, 16-bit SAR ADC with internal error correction circuitry.
2. Superior INL.
   The AD7661 has a maximum integral nonlinearity of 2.5 LSB with no missing 16-bit codes.
3. Internal Reference.
   The AD7661 has an internal reference with a typical temperature drift of 3 ppm/°C.
4. Single-Supply Operation.
   The AD7661 operates from a single 5 V supply. Its power dissipation decreases with throughput.
5. Serial or Parallel Interface.
   Versatile parallel or 2-wire serial interface arrangement is compatible with both 3 V and 5 V logic.

APPLICATIONS

• Data acquisition
• Medical instruments
• Digital signal processing
• Spectrum analysis
• Instrumentation
• Battery-powered systems
• Process control
