AD7634

PRODUCTION

18-Bit, 670 kSPS, Differential Programmable Input PulSAR® ADC

Analog Devices AD7634 Product Info

10 February 2026 6

Features

Multiple pins/software-programmable input ranges
5 V (10 V p-p), +10 V (20 V p-p),
±5 V (20 V p-p), ±10 V (40 V p-p)
Pins or serial SPI^®-compatible input ranges/mode selection

Throughput
670 kSPS (warp mode)
570 kSPS (normal mode);
450 kSPS (impulse mode)
See datasheet for additional features

Part details & applications

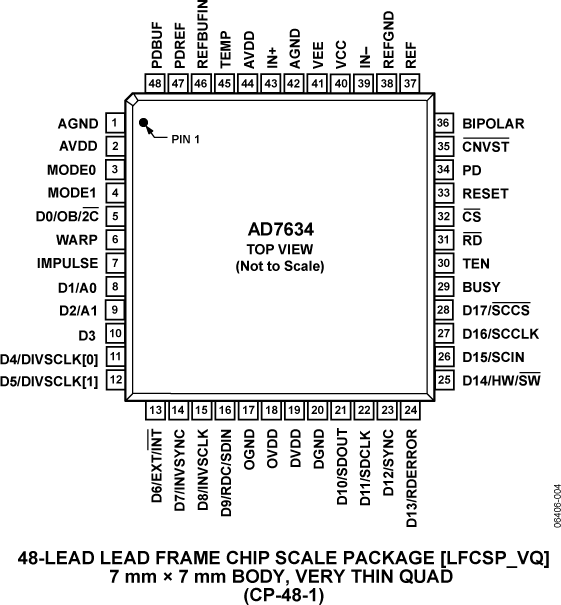

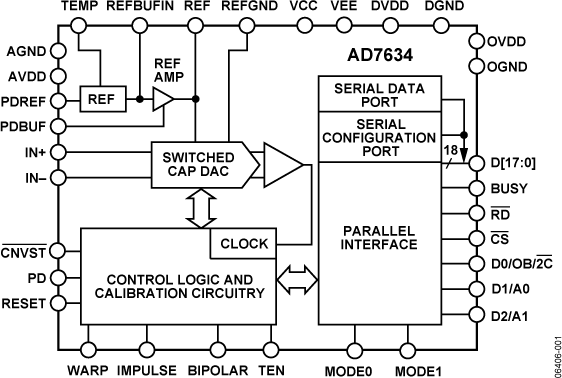

The AD7634 is an 18-bit charge redistribution successive approximation register (SAR), architecture analog-to-digital converter (ADC) fabricated on Analog Devices, Inc.’s iCMOS high voltage process. The device is configured through hardware or via a dedicated write-only serial configuration port for input range and operating mode. The AD7634 contains a high speed 18-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits, and both serial and parallel system interface ports. A falling edge on CNVST samples the fully differential analog inputs on IN+ and IN−. The AD7634 features four different analog input ranges and three different sampling modes. Operation is specified from −40°C to +85°C.

APPLICATIONS

CT scanners
High dynamic data acquisition
Σ-Δ replacement
Spectrum analysis
Medical instruments
Instrumentation
Process controls
