Analog Devices AD5790 Product Info

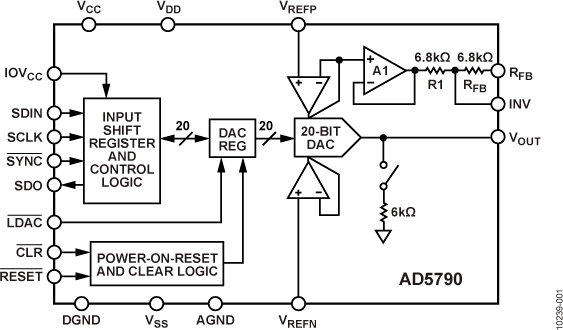

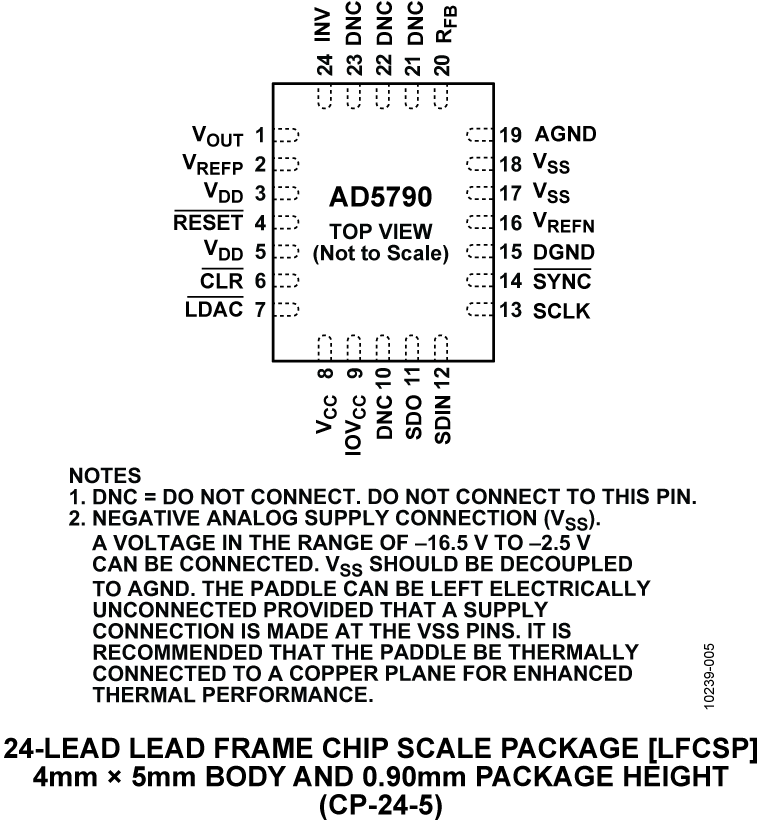

The AD5790 is a single 20-bit, voltage out DAC that operates from a bipolar supply up to 33V. Reference buffers are also provided on-chip The AD5790 accepts a positive reference input in the range of 5V to VDD – 2.5V and a negative reference input in the range of VSS + 2.5v to 0V. The AD5790 offers a relative accuracy of +/-2 LSB's max and operation is guaranteed monotonic with a -1 LSB to +3 LSB's DNL specification.

The part uses a versatile 3-wire serial interface that operates at clock rates up to 35 MHz and is compatible with standard SPI^®, QSPI^™, MICROWIRE^™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V and in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides a disable feature that places the output in a defined load state.

PRODUCT HIGHLIGHTS

1. 20-bit resolution
2. Wide power supply range of up to ±16.5 V.
3. −40°C to +125°C operating temperature range.
4. Low 8 nV/√Hz noise.
5. Low ±0.018 ppm/°C gain error temperature coefficient.

APPLICATIONS

• Medical instrumentation
• Test and measurement
• Industrial control
• Scientific and aerospace instrumentation
• Data acquisition systems
• Digital gain and offset adjustment
• Power supply control
