AD5710R

RECOMMENDED FOR NEW DESIGNS

8-channel 16-bit Configurable IDAC/VDAC with On-Chip Reference

Analog Devices AD5710R Product Info

10 February 2026 4

Features

Octal channel, configurable as any combination of VDAC or IDAC
Guaranteed monotonicity : ±1 LSB16 Max DNL
50mA output current drive for IDAC and VDAC modes
70mV max headroom for VDAC mode
0.25V max headroom for IDAC mode
2.5V internal voltage reference, 3ppm/°C typical

Device addressable SPI interface
Output supply range: +1.71V to +5.5V
Diagnostic monitoring for output voltage, output current, and die temperature

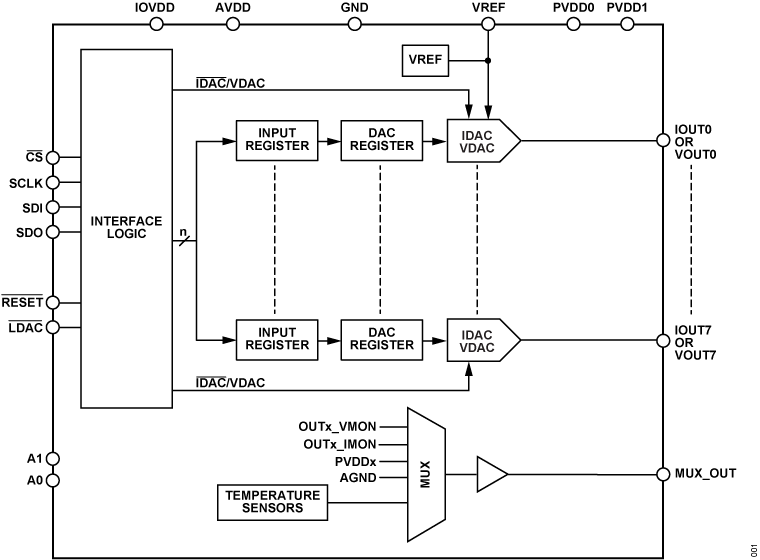

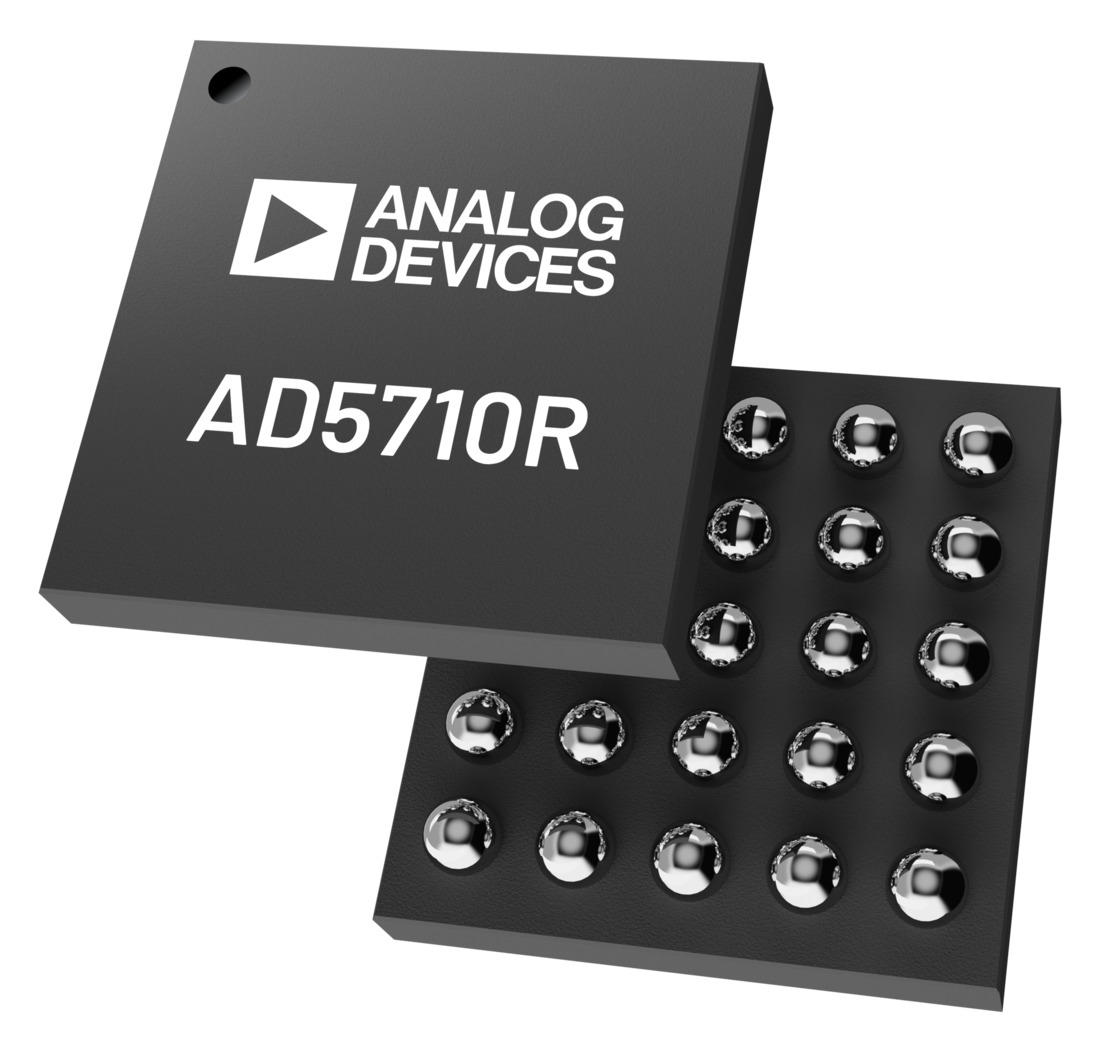

Ultra small form factor: 2.1mm × 2.2mm, 25-ball WLCSP
Operating temperature range: −40 °C to +125 °C

Part details & applications

The AD5710R features eight DAC channels that can be independently configured as either a current output digital-to-analog converter (IDAC) or a voltage output digital-to-analog converter (VDAC). The AD5710R includes an integrated 2.5V, 3ppm/°C reference.

When the AD5710R outputs are configured as an IDAC, the output current range is 0mA to 50mA. When configured as a VDAC, the output voltage range is 0V to VREF or 0V to 2 × VREF.

The AD5710R is available in a 25-ball wafer level chip scale packaging (WLCSP) and is specified over the −40°C to +125°C temperature range.

Applications

Optical networking
Instrumentation
Data acquisition
Automatic test equipment
Process control and industrial automation
