Analog Devices AD5671R Product Info

• High Performance
  • High relative accuracy (INL):
    ±3 LSB maximum at 16 bits
  • Total unadjusted error (TUE): ±0.14% of FSR maximum
  • Offset error: ±1.5 mV maximum
  • Gain error: ±0.06% of FSR maximum
  • Low drift 2.5 V reference:
    2 ppm/°C typical
• Wide Operating Ranges
  • −40°C to +125°C temperature range
  • 2.7 V to 5.5 V power supply
• Easy Implementation
  • User selectable gain of 1 or 2 (GAIN pin/bit)
  • 1.8 V logic compatibility
• 400 kHz I²C-compatible serial interface

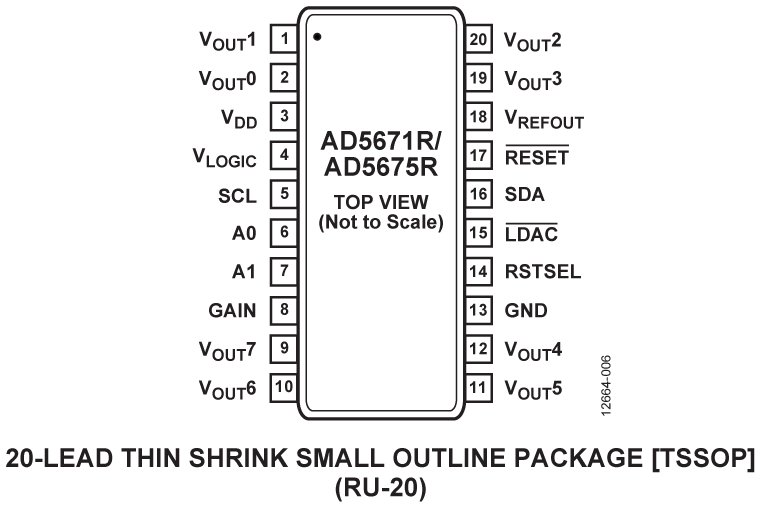

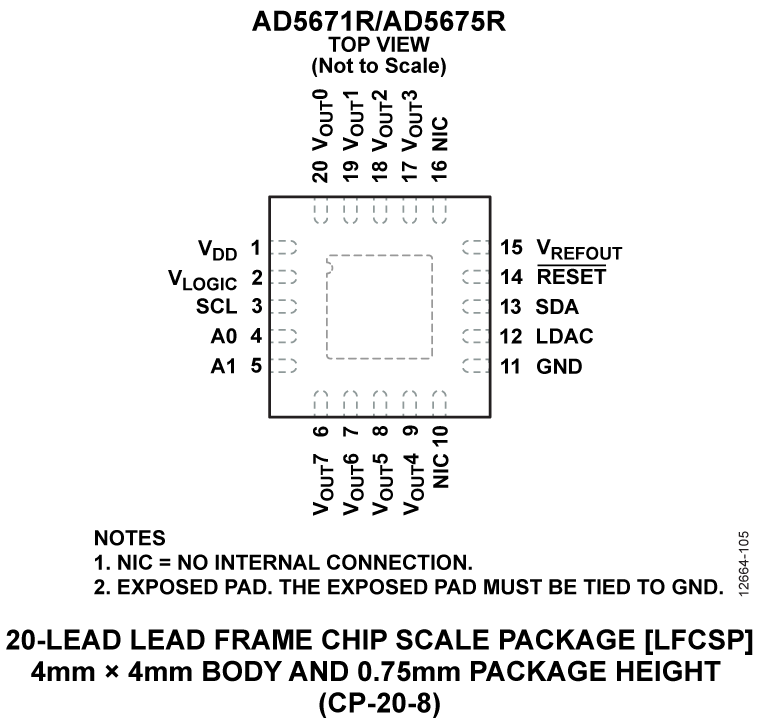

• 20-lead, RoHS-compliant TSSOP and LFCSP

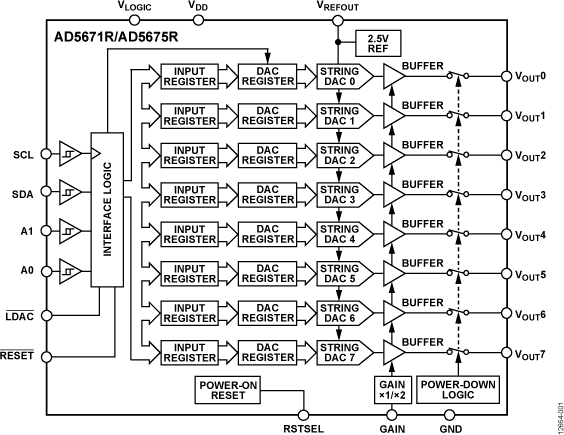

The AD5671R/AD5675R are low power, octal, 12-/16-bit buffered voltage output digital-to-analog converters (DACs). They include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The AD5671R/AD5675R are available in a 20-lead TSSOP and in a 20-lead LFCSP and incorporate a power-on reset circuit and a RSTSEL pin that ensures the DAC outputs power up to zero scale or midscale and remain there until a valid write. The AD5671R/AD5675R contain a power-down mode, reducing the current consumption to 1 μA typical while in power-down mode.

Product Highlights

1. High Relative Accuracy (INL).
   AD5671R (12-bit): ±1 LSB maximum
   AD5675R (16-bit): ±3 LSB maximum
2. Low Drift 2.5 V On-Chip Reference

Applications

• Optical transceivers
• Base-station power amplifiers
• Process control (PLC input/output cards)
• Industrial automation
• Data acquisition systems
