AD5520

PRODUCTION

Per-pin Parametric Measurement Unit / Source Measure Unit

Analog Devices AD5520 Product Info

10 February 2026 6

Features

Force Voltage, Measure Current and Force Current, Measure Voltage functions
Output Voltage Range: ±11 V
Four Programmable Force/Measure Current Ranges: ±4 µA, ±40 µA, ±400 µA, ±4 mA

Measured Voltage Range: ±11 V
Extended Current Ranges: ±40 mA and ±160 mA with External Driver
Clamp Circuitry and Window Comparators On Board

Part details & applications

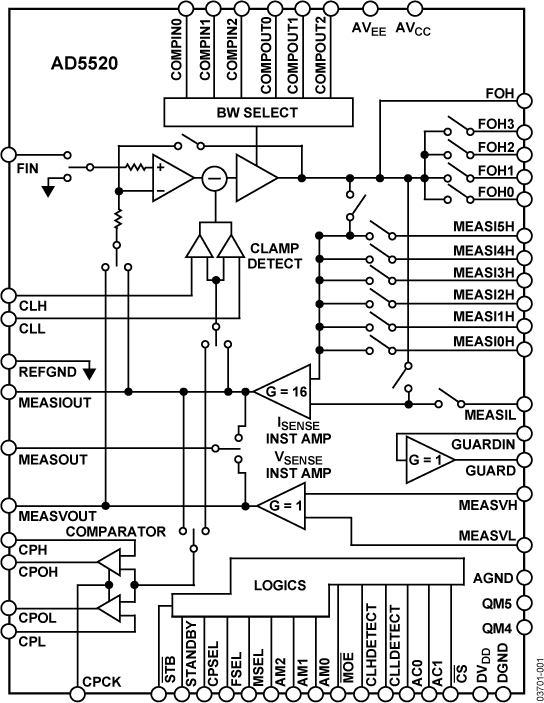

The AD5520 is a single channel Per pin Parametric Measurement Unit (PPMU) for use in semiconductor automatic test equipment and precision measurement instruments. It contains programmable modes to force a pin voltage and measure the corresponding current or force a current and measure the voltage. The PPMU can force a voltage from -11 V to +11 V or currents up to ±4 mA. The device provides a force sense capability to ensure accuracy at the tester pin. A guard output is also available to drive the shield of a force/sense pair.

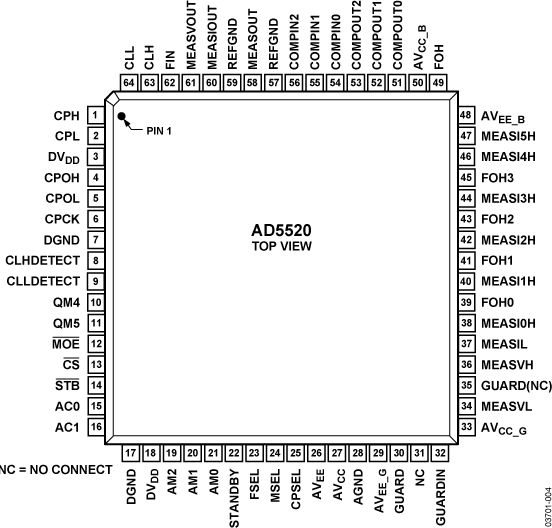

The AD5520 is available in a 64-lead LQFP package.
