AD5306

PRODUCTION

2.5 V to 5.5 V, 400 µ A, 2-Wire Interface Quad Voltage Output 8-Bit DAC

Analog Devices AD5306 Product Info

10 February 2026 6

Features

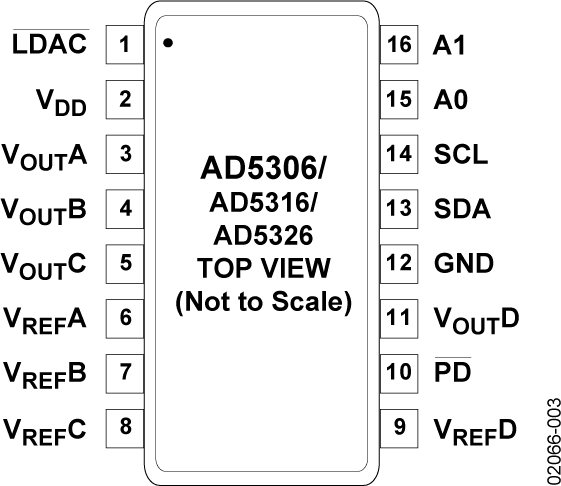

Four 8-Bit DACS in 16-Lead TSSOP
Low Power: 500 µA @ 5 V, 400 µA @ 3 V
Power-Down to 300 nA @ 5 V, 90 nA @ 3 V
Guaranteed Monotonic by Design
Power-On-Reset to Zero Volts
Double-Buffered Input Logic
Output Range: O-V_REF or O-2V_REF

2-Wire (I²C^™ Compatible) Serial Interface
Data Readback Facility
Software Clear Facility
Simultaneous Update via LDAC pin (active low)
Buffered/Unbuffered Reference Input Options for each DAC

Part details & applications

The AD5306 / AD5316 / AD5326 are quad 8-, 10-, and 12-bit buffered voltage output DACs, in a 16-lead TSSOP package, that operate from a single 2.5 V to 5.5 V supply, consuming 500 µA at 3 V. Their on-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7 V/μs. A 2-wire serial interface that operates at clock rates up to 400 kHz is used. This interface is SMBus-compatible at V_DD <3.6 V. Multiple devices can be placed on the same bus.

PRODUCT HIGHLIGHTS

Available in a 16-lead MicroSOIC package
Low power, single supply operation from 2.5 V to 5.5 V supply
Consumes 1.2mW at 3 V and 2.5 mW at 5 V
Rail-to-Rail output with a slew rate of 0.7 V/µs
Multiple devices can share the same bus
2-wire serial interface with clock rates up to 400 kHz
Pin- and Software-Compatible with the AD5316 (10-Bit) and the AD5326 (12-Bit)

I²C (Inter-IC) is a trademark of Philips Semiconductors.
