You typed "HDMI RF modulator" into Google because you need to send a single HDMI source to multiple TVs without running new cables. Maybe you are retrofitting a hotel, wiring a sports bar, or just trying to get your Fire TV Stick onto an old CRT in the garage. Whatever the case, you have probably already noticed something annoying: the search results are a mess of conflicting claims about 4K support, vague installation instructions, and product lists that mix real RF modulators with HDMI extenders that do completely different jobs.

I have installed these devices in both residential and commercial setups over the past few years. This guide is what I wish had existed when I started. It covers how the technology actually works, how to pick the right unit, how to install it without calling an AV contractor, and — most importantly — what the marketing pages will not tell you about 4K, latency, and signal limits.

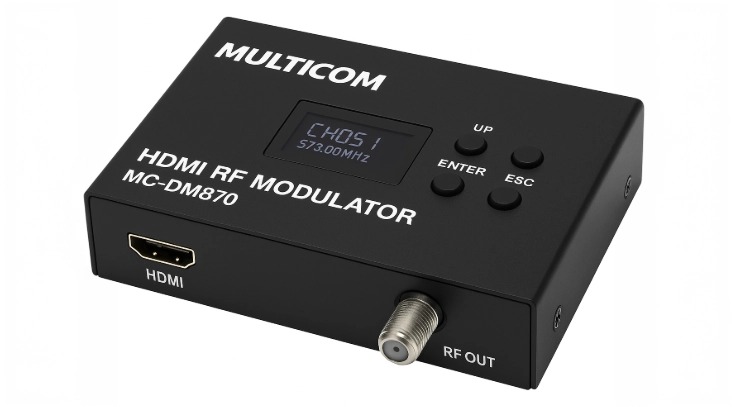

An HDMI RF modulator is a device that converts a digital HDMI signal into a radio frequency (RF) signal. That RF signal travels through standard coaxial cable — the same copper line already running through most walls — and any television with a tuner can receive it by switching to the assigned channel.

Think of it as creating your own private TV broadcast. You plug a Blu-ray player, streaming box, or security DVR into the modulator. The modulator turns that HDMI feed into Channel 90 (or whatever channel you choose). Every TV on the same coax network tunes to Channel 90 and sees the same picture. No HDMI splitters. No new wires. No smart TV apps required.

This is especially useful when you are dealing with legacy infrastructure. A 20-year-old hotel might have coax running to every room but no Ethernet. A gym might have 40 ceiling-mounted TVs with only RF inputs. In those situations, ripping out walls to run HDMI or Cat6 is expensive. A modulator reuses what is already there.

Step 1: HDMI Input & HDCP Handshake The modulator receives an uncompressed digital video and audio stream from your source device. If the source enforces HDCP copy protection — and most streaming boxes and Blu-ray players do — the modulator must support the same HDCP version, or the screen will stay black. Most consumer-grade modulators handle HDCP 1.4. Professional units handle HDCP 2.2.

Step 2: Video Encoding Raw HDMI video is far too large to stuff into a standard TV broadcast channel. The modulator compresses it using an encoder. The two common codecs are MPEG-2 and H.264. MPEG-2 is older and less efficient. H.264 squeezes the same quality into roughly half the bitrate. A few high-end units now use H.265 (HEVC), though this is still rare in the RF modulator world because most TV tuners only expect MPEG-2 or H.264.

Step 3: Modulation The compressed digital stream is wrapped onto an RF carrier wave using a modulation scheme compatible with your region. In North America, that usually means ATSC (over-the-air) or QAM (cable). In Europe, it is DVB-T. In Japan and much of South America, ISDB-T is used. The modulator lets you pick a specific channel number and frequency so you do not collide with local broadcasts.

Step 4: RF Output & Distribution. The RF signal exits the modulator via an F-type connector and enters your coax network. From there, splitters and amplifiers distribute the signal to every TV on the line. Each TV tunes to the channel you set, decodes the signal with its built-in tuner, and displays the picture.

That entire chain adds a small delay — usually 200 to 800 milliseconds, depending on the encoder quality. For movies and sports, you will never notice. For fast-twitch gaming, it matters. More on that later.

This is where many buyers get confused. These three devices solve similar-sounding problems but work very differently. Picking the wrong one means either wasted money or a system that does not do what you need it to.

The bottom line: If you have coax in the walls and want to reach many TVs — including older ones without HDMI — the modulator wins. If you have only one remote TV and can run a Cat6 cable, an extender gives better quality and zero latency. A splitter is fine for a home theater rack but useless for whole-building distribution. Put another way: choose the modulator for one source to many coax-fed TVs, the extender for one TV over a direct cable run, and the splitter for duplicating HDMI to a small set of nearby displays.

Not every modulator fits every job. Here is how the market breaks down.

By Broadcast Standard

Rule of thumb: Match the modulator to the TVs you are feeding, and then verify the TVs’ tuner standard before you buy. If your TVs are North American models with ATSC tuners, buy an ATSC modulator. If they are European TVs with DVB-T tuners, buy DVB-T. Most modern TVs support multiple standards, but it is worth checking.

By Channel Count

Single-channel units are plug-and-play and work well when you need a single source on a single channel. Multi-channel units need rack mounting, IP configuration, and sometimes a technician to set up channel plans, so choose them only when you need more than one channel.

By Application Tier

Use this checklist before you click "buy." I have seen too many returns because someone skipped one of these steps.

One detail almost no product page mentions: RF output level. Consumer modulators typically output around 90–100 dBμV. That is fine for a home with 3–4 TVs and short cable runs. But if you are feeding 20 TVs across a 200-meter coax network, you will lose signal strength to cable attenuation and splitter loss. Commercial units let you crank up the output, or you can add an inline amplifier. I will show you how to calculate that in the RF link budget section below.

Let me be direct because many search results are not: a standard HDMI RF modulator cannot distribute native 4K video to multiple TVs over coax.

Here is why. The ATSC 1.0 standard — which virtually every consumer tuner on the planet still uses — was designed for 1080i or 720p broadcast. Its maximum bitrate and modulation scheme simply lack the bandwidth to carry a 4K signal. QAM and DVB-T have similar limits in their commonly deployed versions. When you feed a 4K source into a 1080p modulator, the modulator downscales it. You still get a picture, but it is 1080p at best.

Some product pages and review sites play word games. They list "4K modulators" that are actually HDMI-over-coax extenders. An extender sends uncompressed HDMI over a point-to-point coax run to one TV. It does not create a broadcast channel that any tuner can pick up. If your goal is "one source to many TVs," an extender will not work.

So what should you do if you need 4K to multiple TVs?

Option C: Accept 1080p. For most signage, bar TVs, and hotel room displays, 1080p looks perfectly fine at typical viewing distances. Your guests will not complain.

Step 1: Plan Your Channel. Before you touch any cables, scan your TVs to see which channels are already occupied by local broadcasts. Pick an empty channel in the UHF range — Channels 30 to 69 usually work well in most areas. Write it down, and confirm your TVs support the broadcast standard you plan to use.

Step 2: Connect the Source Plug your HDMI source (Roku, Apple TV, cable box, DVR) into the HDMI input on the modulator. Power on both devices.

Step 3: Connect the Coax Run a coax cable from the RF output (F-type connector) on the modulator into your coax distribution network. If this is a fresh install, that might mean one cable to one TV. If you are tapping into the existing building wiring, connect it at the point where the headend feed enters the splitter network.

Step 4: Set the Channel. Use the modulator's remote, front panel, or web interface to set the output channel to the empty channel you picked in Step 1. Some units auto-detect the best frequency. I prefer manual control.

Step 5: Scan and Test. On every TV, run a channel scan. The TV should find your new channel and display the HDMI source. If the picture is snowy or pixelated, the signal is too weak. If you see interference lines, you are colliding with a local station — change the channel.

Pro tip: Label the channel at the headend. I use a small piece of tape: "Ch 47 — Lobby Feed." Six months later, you will thank yourself.

This is the section that no product page gives you. They say "connects unlimited TVs" without mentioning that signal strength drops with every foot of cable and every splitter port. Here is how to calculate whether your setup will actually work.

Coax cable and splitters eat signal strength. We measure that loss in decibels (dB). The modulator outputs a signal at a certain strength (in dBμV). By the time that signal reaches the farthest TV, it needs to stay above the tuner's minimum sensitivity — usually around 45–55 dBμV.

Typical losses:

Let us say you have a modulator outputting 100 dBμV. You run 150 feet of RG6 to an 8-way splitter, then 50 more feet of RG6 to the farthest TV.

But what if you had 300 feet of RG6, a 4-way splitter, and an 8-way splitter cascaded?

Still fine. But if your modulator only outputs 85 dBμV — common with cheap consumer units — you would end up at 51.75 dBμV, which is borderline. Add a 20 dB inline amplifier after the modulator and before the first splitter. Problem solved.

Yes, it matters more than most people think. The cable type determines how far your signal can travel before it turns to snow.

My recommendation: Use RG6 for everything unless you have a specific reason not to. It is the modern standard, well-shielded, and cost-effective. RG59 is from the analog era and should be replaced if you are doing a serious install. RG11 is overkill for most jobs but perfect for a long trunk line from the headend to a remote building.

One more thing: check the connectors. Cheap push-on F-connectors lose signal. Use compression fittings and a proper compression tool. It costs about $30 for the tool and takes an extra 10 seconds per connector. The reliability difference is massive.

This is where Welllinkchips' perspective gets interesting. An HDMI RF modulator is not magic. It is a collection of standard semiconductor components arranged in a specific signal chain. If you are designing a product, repairing units, or just want to understand what you are actually paying for, here is what sits on the PCB.

Core Components

Consumer units under $50 usually rely on highly integrated SoCs — a single chip handling HDMI input, encoding, and modulation. That keeps costs down but limits flexibility and firmware quality. You will see brands like AoeSpy using all-in-one Chinese SoCs that work fine for light home use but run hot and lack granular RF controls.

Prosumer and commercial units from Thor Broadcast, Multicom, and similar brands separate these functions onto dedicated chips. An ADV7611 handles HDMI. A dedicated encoder handles video compression. An FPGA or dedicated modulator IC handles RF generation. The result is lower latency, a cleaner output spectrum, and the ability to update firmware to add new features.

Sourcing note: If you are building or repairing these devices, the HDMI receiver and RF front-end chips have the longest lead times. Skyworks and MaxLinear parts have seen 20–26 week lead times in recent years. FPGA-based designs are more resilient to single-chip shortages because you can swap FPGA vendors more easily than dedicated modulator ASICs.

Something will go wrong eventually. Here is the fastest way to diagnose and fix the most common problems.

My go-to diagnostic order: Power → Cables → Channel collision → HDCP → Signal strength. I would estimate 90% of problems fall into those five categories.

What is an HDMI RF modulator?

An HDMI RF modulator converts a digital HDMI signal into an RF broadcast signal that travels over coaxial cable. Any TV with a tuner can receive it by tuning to the assigned channel, making it ideal for distributing video to multiple displays without running new HDMI or network cables.

Do all HDMI RF modulators support 4K?

No. The vast majority cap output at 1080p because ATSC 1.0, QAM, and DVB-T standards do not have the bandwidth for 4K broadcast. A 4K input is downscaled to 1080p. True 4K distribution over coax requires HDMI extenders (point-to-point, one TV only) or expensive ATSC 3.0 equipment that is not yet mainstream.

How many TVs can one modulator support?

There is no hard limit. With proper coax splitters and amplifiers, a single modulator can feed 100 or more TVs. The practical limit depends on your coax network quality, cable type, and whether you have enough signal strength after accounting for splitter and cable losses.

Is there a noticeable delay when using an RF modulator?

Yes, but it is small. Encoding and modulation add roughly 200 to 800 milliseconds of latency. You will not notice it while watching movies or sports. For competitive gaming, it can be distracting — in those cases, use a direct HDMI connection or a low-latency extender instead.

Can I use an HDMI RF modulator with satellite TV or a streaming box?

Yes. Any device with an HDMI output works as a source — satellite receivers, Roku, Apple TV, Fire TV Stick, game consoles, Blu-ray players, and security DVRs. Just make sure the modulator supports the source's HDCP version, or you will get a black screen.

Will an HDMI RF modulator work with my region's TV standard?

Only if you match the modulator's output standard to your TV's tuner capabilities. North American TVs use ATSC or QAM. European TVs use DVB-T. Japanese and South American TVs use ISDB-T. Many modern TVs support multiple standards, but always verify before buying.

Do I need a technician to install an HDMI RF modulator?

For a single-channel home setup, no. If you can plug in HDMI and coax cables, you can do it. Commercial installs with multiple channels, rack mounting, and existing headend integration may need an AV technician or someone familiar with RF distribution.

Can I connect multiple HDMI sources to one modulator?

Single-channel modulators accept one HDMI source. Multi-channel units accept 2, 4, 8, or more HDMI inputs and broadcast each on a different RF channel. Your TVs then tune between channels the same way they switch between regular TV stations.

Why is my modulator interfering with other channels?

Your output frequency is probably overlapping with a local broadcast. Use your TV's signal meter to find empty channels, then reconfigure the modulator to a vacant frequency in the UHF band (Channels 30–69 usually work well).

What is the difference between an HDMI RF modulator and an HDMI splitter?

A splitter divides one HDMI signal into multiple identical HDMI outputs, each requiring its own HDMI cable run to a TV. A modulator converts the signal to RF so it can travel over existing coax cable to any number of TVs with tuners — no HDMI cables to each TV needed.

An HDMI RF modulator is one of those tools that solves a very specific problem extremely well. If you need to send a single video source to multiple TVs and you already have coax in the walls, nothing else comes close in cost and simplicity.

The key is setting honest expectations. You are getting 1080p broadcast-quality video, not 4K HDMI direct. You are getting a 200–800 ms delay, not zero-latency gaming performance. And you get compatibility with every TV made in the last 30 years, not just those with HDMI ports.
