LED strip connectors are small devices that join LED strips to power sources, controllers, or other strips without soldering. They come in 2-pin to 6-pin configurations to match different strip types, from single-color to RGBWW. Choosing the wrong connector causes flickering, visible gaps, and premature failure. The right one gives you invisible seams, reliable conductivity, and a professional finish.
Whether you're building a smart home theater, upgrading kitchen task lighting, or creating an Instagram-worthy bedroom ambiance, this guide covers everything from basic 2-pin connectors to advanced RGBWW splitters. You'll learn to choose connector types, navigate solderless installation, and avoid common polarity mistakes that ruin projects.
The number of pins determines function compatibility. You cannot mix connector types interchangeably.
2-pin connectors are the simplest type, designed for warm white (2700K), cool white (6000K), or any single-color LED strip. They run on 12V or 24V DC and typically handle 3A to 6A. Two metal pins or contact pads pierce or clamp the strip's copper pads to complete the circuit. These connectors only support dimming—no color changing. You'll find them in under-cabinet lighting, cove lighting, and general task lighting where color variation isn't needed. Voltage must match your strip and power supply exactly; a 12V connector on a 24V strip will burn out, while a 24V connector on a 12V strip leaves you with dim, underperforming LEDs.
3-pin connectors handle addressable LED strips like WS2812B, SK6812, and APA102. Unlike other types, these carry data signals alongside power. The data pin tells each individual LED what color to display, enabling chasing effects, rainbow patterns, and music reactivity. Standard 2-pin or 4-pin connectors won't work here—they lack the data line entirely.
These strips most commonly run on 5V DC, though 12V variants exist. You'll need an addressable LED controller—something like an SP107E, SP501E, or an Arduino-based setup. Standard RGB controllers cannot drive WS2812B strips; they simply don't speak the right protocol. Common applications include ambient TV backlighting, gaming setups, and stage lighting where dynamic effects matter.
4-pin connectors are the workhorse of color-changing LED installations. The four pins break down as follows: pin 1 carries the common anode (positive, most common) or common cathode (negative), while pins 2, 3, and 4 handle the red, green, and blue channels respectively. Wire colors usually follow the channel—red wire for red, green for green, blue for blue, with black or white for the common pin.
Here's where people mess up: RGB connectors come in two types—common-anode and common-cathode. Mixing them completely breaks your color mixing. Red becomes cyan, green becomes magenta, and nothing looks right. Always match your connector type to your strip and controller specifications. Check the datasheet before you buy. These connectors dominate gaming setups, home theaters, accent lighting, and holiday decorations.
5-pin connectors add a dedicated white LED channel to the standard RGB setup. This isn't RGB mixing trying to approximate white—it's a separate white LED that produces clean light from 2700K to 6500K depending on your strip. RGB white looks muddy by comparison, especially next to the real thing. You'll need an RGBW-compatible controller to use that fifth channel. Without it, you're just running a more expensive RGB strip.
6-pin connectors represent the top tier for residential and professional lighting. They pack RGB plus warm-white and cool-white channels into a single connector, giving you tunable white from 2700K to 6500K. Want a warm candlelight glow for dinner? Dial to 2700K. Need crisp daylight for working? Hit 6500K. The RGB channels handle color accents while the dual white channels manage your primary illumination.
Physical note: 5-pin and 6-pin connectors are wider than 4-pin. More channels pull more current, so verify your connector and power supply ratings can handle the load. These show up in professional residential lighting, photography and video studios, and retail displays where color accuracy actually matters.
Start with your strip type and work backward:
Running single-color white, red, blue, or any monochrome? Grab a 2-pin connector.
Running RGB color-changing strips? You need a 4-pin. Double-check whether your strip and controller use a common anode or a common cathode before ordering.
Running RGBW with a dedicated white channel? Go 5-pin.
Running RGBWW with tunable warm and cool white? That's 6-pin territory.
Running addressable strips like WS2812B or SK6812? You need a 3-pin plus an addressable controller. Standard RGB controllers won't work.
Three things must match across your entire setup: pin count, voltage, and current. Pin count determines whether your colors work at all. Voltage must match—5V, 12V, or 24V—across strip, connector, and power supply. Mismatching voltage burns out strips or leaves them dim. Current-related safety matters: your connector's amperage rating must exceed your strip's draw by at least 20%. Push a 6A strip through a 3A connector and you'll get overheating, connector failure, or worse.
LED strips come in three standard widths. Eight-millimeter strips fit narrow coves, aluminum channels, and concealed installations, usually packing 60 to 120 LEDs per meter. Ten millimeters is the most common width for standard RGB strips and general accent lighting, typically running 30 to 60 LEDs per meter. Twelve-millimeter handles high-power strips, COB designs, and outdoor-rated installations with densities from 120 to 240 LEDs per meter.
Measure the copper PCB width with calipers or a ruler—not the silicone coating. A 10mm strip with thick waterproofing may measure 12mm overall but still needs a 10mm connector. The coating doesn't conduct electricity; the copper underneath does.
SMD strips show a dotted look with visible LED components. The copper pads between cut lines are exposed and ready for standard solderless connectors. COB strips look seamless—no visible dots—because phosphor coating covers the bare LED chips. That same coating can block standard pierce connectors from making proper contact.
For COB, you have three options. Dedicated COB connectors use wider contact pads designed for coated surfaces. Soldering usually outperforms solderless connectors in permanent COB installs because it bypasses the contact issue entirely. Or go hybrid: solderless for prototyping your layout, then switch to soldering once you're happy with the design.
IP20 strips are non-waterproof. Standard solderless connectors work perfectly—just clip and go. IP65 strips carry a silicone coating that blocks moisture. You must peel back that coating to expose the copper pads before connecting. Use a precision knife and take your time; gouging the PCB ruins the strip. IP67 strips come fully encapsulated in silicone tubing. You need to remove the waterproofing at the connection point, install your connector, and then restore protection with heat-shrink tubing or a waterproof housing.
For outdoor IP67 installs, skip solderless connectors entirely. Solder inside a watertight junction box. Exposed solderless connectors in moisture will corrode and fail within months.
Before you start, run through the safety basics. Load your power supplies and connectors to no more than 80% of their rated capacity—running at 100% generates excess heat and shortens lifespan. Never test strips while they're tightly coiled; heat builds up in the center and can damage LEDs. And verify that your connector rating matches your strip, especially with high-density COB designs that draw more current than standard SMD designs.
Locate the copper cut line—the scissors icon between LED segments on the PCB. Cut exactly on that line, never through the middle of a copper pad. Common mistakes include cutting completely through copper pads (leaving no contact surface), leaving partial pads with damaged traces (causing intermittent connection), or cutting at an angle (creating uneven contact pressure). Use sharp precision scissors or PCB snips. Dull blades crush copper traces rather than cut them cleanly.
For IP65 or IP67 strips, score the silicone coating lightly with a craft knife. Peel back 10 to 15 millimeters to expose the copper pads. Clean the pads with isopropyl alcohol to remove any residue. The contact surface must be completely free of silicone—any leftover coating blocks conductivity.
Open the connector housing using the flip latch or slide mechanism. Insert the strip with copper pads facing the metal contacts. Three things must line up: polarity markings on the strip must match the connector housing, all copper pads must align with connector pins, and the strip must seat fully against the internal stop. Miss any of these and you'll get flickering, partial lighting, or no connection at all.
Connector types vary in how they lock down. Pierce-type connectors need firm pressure until pins penetrate the PCB—you'll hear an audible click when they seat. Do a light tug test afterward; the strip shouldn't move. Clamp-type connectors use a sliding locking piece that you push until fully seated. Visually confirm full closure before moving on. Screw-type connectors require tightening the terminal screws to about 0.5-0.8 Nm of torque. That's tight enough to hold but not so tight you strip the threads. Screws should sit flush with no wobble.
Before you mount anything permanently, connect power and verify. Route through your controller for RGB or RGBW strips. Check that all LEDs illuminate evenly with no dim spots. Test full functionality—colors, dimming, effects if applicable. Then run your hand over the connectors. Warmth indicates poor contact or high resistance, which means you need to reseat or replace that connection.

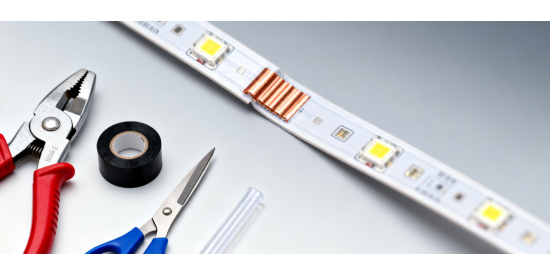

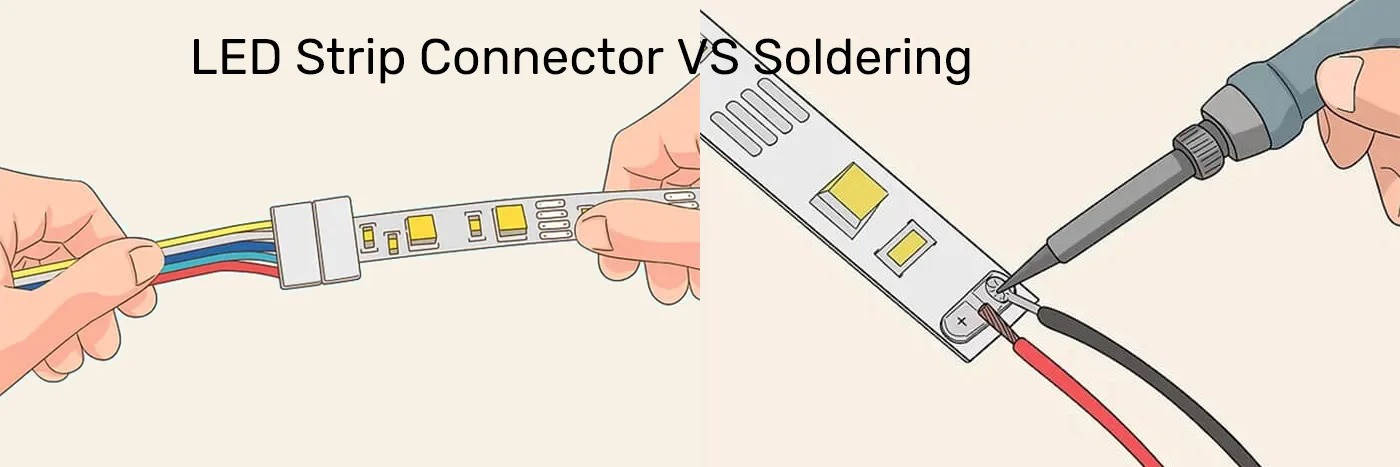

Soldered connections are permanent and vibration-proof. They conduct better than solderless options—typically under 0.1 ohms versus under 1 ohm for clip connectors. But they take 5 to 10 minutes per joint, require soldering experience, and need tools: iron, solder, flux, and heat shrink. Once it's soldered, it's soldered. No repositioning, no reuse.
Solderless connectors install in 30 seconds, with no skill required. They're reusable and easy to reposition, which makes them ideal for prototyping or rented spaces where you'll remove everything later. The tradeoff is slightly higher resistance and the possibility of loosening under repeated movement or vibration. Cost runs higher too—anywhere from 50 cents to 3 dollars per connector versus pennies for solder.
Solder when: you're going outdoors or into high humidity, installing permanently in a home or business, dealing with high-vibration environments like vehicles or machinery, working with COB strips that solderless connectors struggle to contact, or running lengths beyond 5 meters where every milliohm of resistance matters.
Go solderless when: you're new to LED projects, working in a rental where removal is required, prototyping and testing layouts before final installation, working in tight spaces where soldering is impractical, or setting up something you'll reconfigure frequently.
Gapless strip-to-strip connectors create nearly invisible joints between segments. They're perfect for continuous runs where light uniformity matters—under cabinets, along coves, anywhere you don't want a visible break. The downside is zero flexibility: your strips must align perfectly straight. Any angle or offset and the connector won't seat properly.
Jumper wire connectors bridge gaps of 150 to 500 millimeters. Use them for corners, to span gaps, to route around obstacles, or anywhere you need to change direction. The wire segment is visible, but that's the tradeoff for flexibility.
L-connectors create 90-degree turns along room perimeters and for picture frame lighting. T-connectors create three-way branches, letting you run a main strip with a vertical accent without running a separate home run back to the power supply. X-connectors handle four-way crosses for ceiling panels, large area backlighting, and matrix layouts.
Each splitter adds resistance to the circuit. Beyond 5 meters or with high-density strips, inject power at splitter nodes rather than relying on current to pass through from the main run. Otherwise, you'll see dimming or color shift at the far ends.
Even with optimal connectors, runs beyond 5 meters experience a voltage drop. The LEDs at the far end get less power and look dimmer or shift color. The fix is power injection: use T-splitters or additional jumper wires to feed power from your main supply directly into the middle or end of the run. This bypasses cumulative resistance across multiple connectors and maintains consistent brightness throughout the installation.
After strip-to-strip connections, you need power cables and extension wires to get everything running.
The standard DC pigtail is the most common LED strip power connection you'll see. It handles basic 12V and 24V single-color and RGB strips. DC extension cables extend the distance between your power supply and strip—useful when you want the power brick hidden in a cabinet or ceiling cavity. DC connectors with built-in switches give you inline on/off control without needing a dimmer or smart controller.
One thing to remember: 5.5 by 2.1mm connectors don't regulate voltage. A 12V supply through this connector delivers 12V. A 24V supply delivers 24V. Verify your strip voltage before connecting, or you'll fry your LEDs.
RGB strips need 4-conductor extension cables. RGBW needs a 5-conductor. RGBWW needs a 6-conductor. Addressable strips require 3-conductor signal wire, and for long runs, use shielded cable to prevent interference with the data signal. Outdoor installations need waterproof versions of all these—sealed connectors and junction boxes, not standard indoor-grade parts.
Wire gauge matters for both safety and performance. For strips pulling under 2 amps—about 24 watts at 12 volts—22 AWG wire works for runs up to 3 meters. Two to 4 amps, roughly 48 watts at 12 volts, needs 20 AWG and can go 5 meters. Four to 6 amps, around 72 watts, needs 18 AWG, also good for 5 meters. Beyond 6 amps, step up to 16 AWG or heavier, or better yet, use power injection instead of trying to push that much current through a single wire.
Flickering usually traces back to three causes. Reversed polarity—your strip's positive marking doesn't align with the connector's positive—kills the circuit or causes erratic behavior. Fix it by reversing the strip direction or swapping your power leads. Insufficient contact pressure means the strip moves when you tug it lightly, or you can see a gap between the PCB and contacts. Fully reseat the strip and replace the connector if the latch is worn out. Partial pad contact shows up when only some LEDs light, and the pattern matches your pad layout. Trim at the next cut line and ensure clean, full pad exposure before reconnecting.
If a whole section goes dark, check for an open circuit first. A multimeter continuity test showing infinite resistance means the connector failed or a trace broke near the cut line. Replace the connector and inspect the PCB. Gradual dimming along the strip, with the end voltage more than 1 volt below the input, indicates a voltage drop. Inject power at the midpoint, use a heavier wire gauge, or shorten the run. Component incompatibility—12V strip on 24V supply burns LEDs; 24V strip on 12V runs dim—means you need to verify that power supply, strip, and connector voltage ratings all match.
Disconnect power immediately. A hot connector indicates dangerous resistance that can escalate to fire. Three things cause this: the connector is overloaded with current exceeding its rating, a loose connection is creating arcing, or the contacts have corroded, which happens fast in outdoor installs. Prevention is simple: calculate total power draw in watts by multiplying volts times amps. Then ensure your connector's current rating exceeds that draw by 20%. That safety margin keeps things cool.
What's the difference between 2-pin and 4-pin LED connectors?
2-pin connectors handle single-color strips with only positive and negative connections. 4-pin connectors add red, green, and blue channels plus a common pin, enabling RGB color mixing. You cannot use a 2-pin connector on an RGB strip—you'll lose all color control and probably won't get any light at all.
Can I use a 4-pin connector on a 5-pin LED strip?
No. 5-pin RGBW strips need that dedicated white channel. A 4-pin connector leaves the white LEDs permanently off. The reverse works fine, though—a 5-pin connector on a 4-pin RGB strip just leaves one pin unused.
How do I know if my LED strip is 8mm or 10mm?
Measure the copper PCB width, not the silicone coating. 8mm strips usually run 60 LEDs per meter; 10mm strips often have 30 or 60. If you're unsure, peel back a small section of coating and measure the bare PCB directly.
Do I need to solder LED strip connectors?
Not for most projects. Solderless connectors work fine for indoor installations and prototyping. Solder only when you need maximum durability—outdoor, high-vibration, or permanent installs—or when working with COB strips that solderless connectors struggle to contact properly.
Why is my LED strip flickering after I connect it?
Poor contact, almost always. Check polarity alignment first. Make sure the connector latch is fully closed. Verify copper pads are clean and free of silicone residue. Confirm your power supply can handle the total strip length. If all that checks out, try a different connector—manufacturing defects happen more often than you'd think.
Can I cut and reconnect LED strips multiple times?
Yes, but each cut consumes one LED segment, typically 3 to 6 LEDs, depending on your strip density. Repeated cutting shortens your usable length. Plan your layout before cutting to minimize waste.
What's the maximum length I can run without a voltage drop?
For standard 12V strips, 5 meters is the practical limit before you notice dimming. 24V strips handle 10 meters better. Beyond those lengths, use power injection or separate power feeds.
Are LED strip connectors reusable?
Solderless connectors are reusable if the latch mechanism stays intact. Pierce-type connectors may deform pins after multiple uses. Soldered connections are permanent. Keep spare connectors on hand for projects requiring frequent reconfiguration.
LED strip connectors are the unsung heroes of modern lighting design. The best installations share three traits: invisible seams that maintain uniform light, reliable connections that survive seasonal temperature swings, and thoughtful layouts that minimize voltage drop.
Master 2-pin through 6-pin connectors. Understand when to choose soldered versus solderless. Plan your power distribution before the first strip goes up.
Remember: measure twice, align carefully, and always test before final mounting. The 10 minutes spent verifying polarity and contact quality saves hours of troubleshooting inaccessible ceiling coves or behind cabinetry.
