UCC37324

ACTIVE

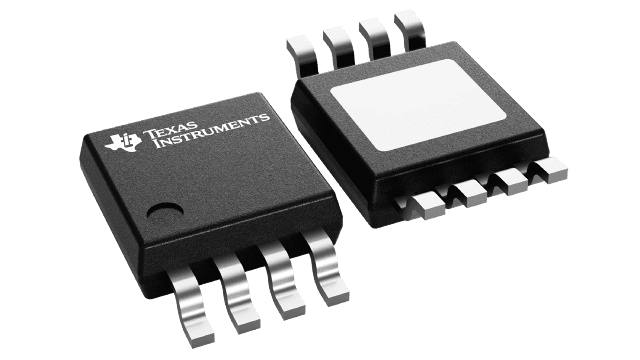

4-A/4-A dual-channel gate driver with non-inverting inputs

Texas Instruments UCC37324 Product Info

1 April 2026 3

Parameters

Number of channels	2
Power switch	MOSFET
Peak output current (A)	4
Input supply voltage (min) (V)	4.5
Input supply voltage (max) (V)	15
Features	Dual Non-inverting Outputs, Hysteretic Logic
Operating temperature range (°C)	0 to 70
Rise time (ns)	20
Fall time (ns)	15
Propagation delay time (µs)	0.025
Input threshold	CMOS, TTL
Channel input logic	Non-Inverting
Input negative voltage (V)	0
Rating	Catalog
Driver configuration	Non-Inverting

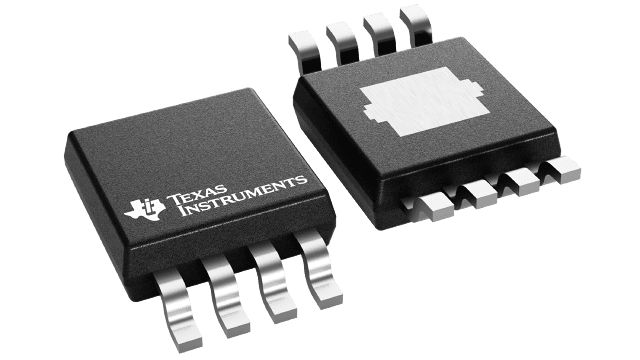

Package

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

Features

Bi-CMOS Output Architecture
±4 A Drive Current at the Miller Plateau Region
Constant-Current Even at Low Supply Voltages
Outputs Paralleled for Higher Drive Current
Available in MSOP- PowerPAD™ Package
TTL/CMOS Inputs Independent of Supply Voltage
Industry-Standard Pin-Out

Bi-CMOS Output Architecture
±4 A Drive Current at the Miller Plateau Region
Constant-Current Even at Low Supply Voltages
Outputs Paralleled for Higher Drive Current
Available in MSOP- PowerPAD™ Package
TTL/CMOS Inputs Independent of Supply Voltage
Industry-Standard Pin-Out

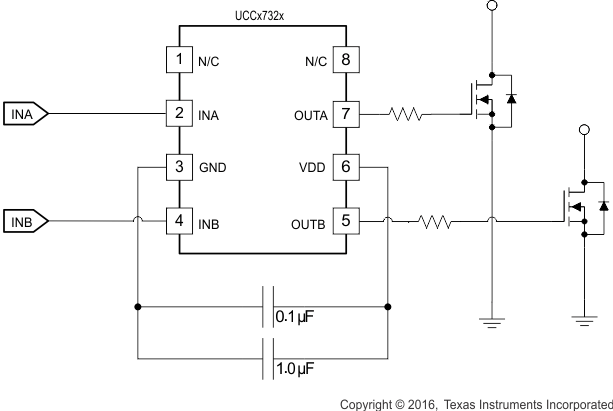

Description

The UCC2732x and UCC3732x family of high-speed dual-MOSFET Drivers deliver 4-A source and 4-A sink peak current to effectively drive MOSFETs where it is needed most at the Miller Plateau Region. A unique BiPolar and MOSFET hybrid output stage in parallel also allows efficient current sourcing and sinking at low supply voltages. Three standard logic options are offered — dual-inverting, dual-noninverting, and one-inverting and one-noninverting driver. Input thresholds are based on TTL and CMOS and independent of supply voltage and feature wide input hysteresis offering excellent noise immunity. The UCC2732x and UCC3732x family is available in the standard SOIC-8 (D) as well as the thermally enhanced -8pin PowerPAD MSOP package (DGN), drastically lowering thermal resistance to improve long term reliability.
