UCC21320-Q1
  • UCC21320-Q1
  • UCC21320-Q1

UCC21320-Q1

ACTIVE

Automotive 3.75kVrms, 4A/6A dual-channel isolated gate driver w/ programmable deadtime in DWK pkg

Texas Instruments UCC21320-Q1 Product Info

1 April 2026 0

Parameters

Number of channels

2

Isolation rating

Basic

Power switch

IGBT, MOSFET, SiCFET

Withstand isolation voltage (VISO) (Vrms)

3750

Working isolation voltage (VIOWM) (Vrms)

2121

Transient isolation voltage (VIOTM) (VPK)

5303, 6250

Peak output current (A)

6

Peak output current (source) (typ) (A)

4

Peak output current (sink) (typ) (A)

6

Features

Disable, Programmable dead time

Output VCC/VDD (min) (V)

9.2

Output VCC/VDD (max) (V)

25

Input supply voltage (min) (V)

3

Input supply voltage (max) (V)

18

Propagation delay time (µs)

0.019

Input threshold

CMOS, TTL

Operating temperature range (°C)

-40 to 125

Rating

Automotive

Rise time (ns)

6

Fall time (ns)

19

Undervoltage lockout (typ) (V)

8, 12

Package

SOIC (DWK)-14-106.09 mm² 10.3 x 10.3

Features

  • 4A peak source, 6A peak sink output
  • 3V to 18V input VCCI range to interface with both digital and analog controllers
  • Up to 25V VDD output drive supply
  • Switching parameters:
    • 33ns typical propagation delay
    • 20ns minimum pulse width
    • 6ns maximum pulse-width distortion
  • Common-mode transient immunity (CMTI) greater than 125V/ns
  • Universal: dual low-side, dual high-side or half-bridge driver
  • Programmable overlap and dead time

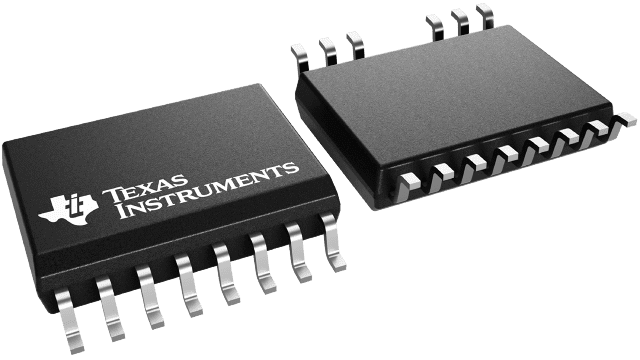

  • Wide body SOIC-14 (DWK) package
    • 3.3mm spacing between driver channels
  • Junction temperature range –40 to +150°C
  • TTL and CMOS compatible inputs
  • Fast disable for power sequencing
  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results
    • Device temperature grade 1
  • 4A peak source, 6A peak sink output
  • 3V to 18V input VCCI range to interface with both digital and analog controllers
  • Up to 25V VDD output drive supply
  • Switching parameters:
    • 33ns typical propagation delay
    • 20ns minimum pulse width
    • 6ns maximum pulse-width distortion
  • Common-mode transient immunity (CMTI) greater than 125V/ns
  • Universal: dual low-side, dual high-side or half-bridge driver
  • Programmable overlap and dead time
  • Wide body SOIC-14 (DWK) package
    • 3.3mm spacing between driver channels
  • Junction temperature range –40 to +150°C
  • TTL and CMOS compatible inputs
  • Fast disable for power sequencing
  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results
    • Device temperature grade 1

Description

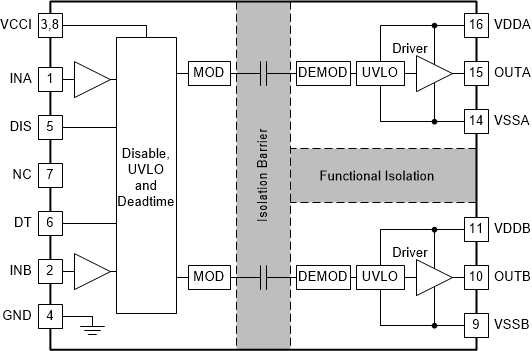

The UCC21320-Q1 is an isolated dual-channel gate driver with 4A source and 6A sink peak current. It is designed to drive power MOSFETs, IGBTs, and SiC MOSFETs up to 5MHz.

The input side is isolated from the two output drivers by a 3.75kVRMS basic isolation barrier, with a minimum of 125V/ns common-mode transient immunity (CMTI). Internal functional isolation between the two secondary-side drivers allows a working voltage of up to 1500VDC.

Every driver can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver with programmable dead time (DT). A disable pin shuts down both outputs simultaneously, and allows normal operation when left open or grounded. As a fail-safe measure, primary-side logic failures force both outputs low.

Each device accepts VDD supply voltages up to 25V. A wide input VCCI range from 3V to 18V makes the driver suitable for interfacing with both analog and digital controllers. All supply voltage pins have under voltage lock-out (UVLO) protection.

With all these advanced features, the UCC21320-Q1 enables high efficiency, high power density, and robustness.

The UCC21320-Q1 is an isolated dual-channel gate driver with 4A source and 6A sink peak current. It is designed to drive power MOSFETs, IGBTs, and SiC MOSFETs up to 5MHz.

The input side is isolated from the two output drivers by a 3.75kVRMS basic isolation barrier, with a minimum of 125V/ns common-mode transient immunity (CMTI). Internal functional isolation between the two secondary-side drivers allows a working voltage of up to 1500VDC.

Every driver can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver with programmable dead time (DT). A disable pin shuts down both outputs simultaneously, and allows normal operation when left open or grounded. As a fail-safe measure, primary-side logic failures force both outputs low.

Each device accepts VDD supply voltages up to 25V. A wide input VCCI range from 3V to 18V makes the driver suitable for interfacing with both analog and digital controllers. All supply voltage pins have under voltage lock-out (UVLO) protection.

With all these advanced features, the UCC21320-Q1 enables high efficiency, high power density, and robustness.
