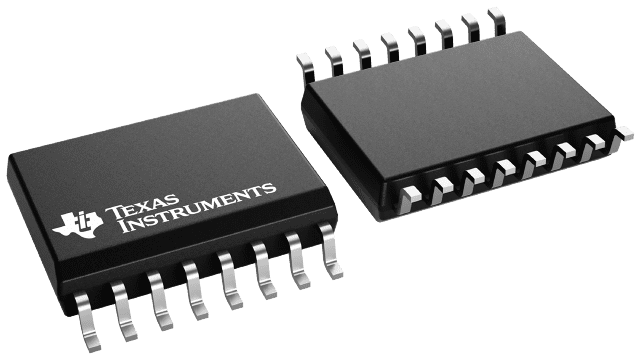

UCC12041-Q1
  • UCC12041-Q1

UCC12041-Q1

ACTIVE

Automotive, 500-mW, 3-kVrms isolated DC/DC module with integrated transformer

Texas Instruments UCC12041-Q1 Product Info

1 April 2026 1

Parameters

Rating

Automotive

Topology

Full-bridge

Vin (max) (V)

5.5

Vin (min) (V)

4.5

Vout (max) (V)

5

Vout (min) (V)

3.3

Features

0.5W, Basic isolation, Regulated, Single output

Device type

Isolated modules

Regulated outputs (#)

1

TI functional safety category

Functional Safety-Capable

Isolation rating

Basic

Output power (W)

0.5

Operating temperature range (°C)

-40 to 125

Control mode

Internally Regulated with 3.3V or 5V Select

Package

SO-MOD (DVE)-16-106.09 mm² 10.3 x 10.3

Features

  • High-efficiency DC/DC converter with integrated transformer technology
  • AEC-Q100 qualified with the following results:
    • Device temperature Grade 1: –40°C to 125°C ambient operating Temperature
  • Functional Safety-Capable
  • Output power (typical): 500 mW
  • Regulated 5 V or 3.3 V output with selectable 400-mV headroom voltage to power an LDO
  • Input voltage: 4.5 V to 5.5 V
  • Robust isolation barrier:
    • Isolation rating: 3 kVRMS
    • Surge capability: 6.5 kVPK
    • Working voltage: 850 VRMS
    • Minimum CMTI: 100 V/ns
  • Thermal shutdown
  • Short circuit recovery
  • 16-pin wide-body SOIC package with > 8-mm creepage and clearance
  • Extended temperature range: –40°C to 125°C
  • Safety-related certifications (planned):
    • DIN V VDE V 0884-11:2017-01
    • 3000-VRMS isolation for 1 minute per UL 1577
    • UL certification per IEC 60950-1 and IEC 62368- 1 end equipment standards
    • CQC approval per GB4943.1-2011
  • High-efficiency DC/DC converter with integrated transformer technology
  • AEC-Q100 qualified with the following results:
    • Device temperature Grade 1: –40°C to 125°C ambient operating Temperature
  • Functional Safety-Capable
  • Output power (typical): 500 mW
  • Regulated 5 V or 3.3 V output with selectable 400-mV headroom voltage to power an LDO
  • Input voltage: 4.5 V to 5.5 V
  • Robust isolation barrier:
    • Isolation rating: 3 kVRMS
    • Surge capability: 6.5 kVPK
    • Working voltage: 850 VRMS
    • Minimum CMTI: 100 V/ns
  • Thermal shutdown
  • Short circuit recovery
  • 16-pin wide-body SOIC package with > 8-mm creepage and clearance
  • Extended temperature range: –40°C to 125°C
  • Safety-related certifications (planned):
    • DIN V VDE V 0884-11:2017-01
    • 3000-VRMS isolation for 1 minute per UL 1577
    • UL certification per IEC 60950-1 and IEC 62368- 1 end equipment standards
    • CQC approval per GB4943.1-2011

Description

UCC12041-Q1 is an automotive qualified DC/DC power module with 3-kVRMSbasic isolation rating designed to provide efficient, isolated power to isolated circuits that require a bias supply with a well-regulated output voltage. The device integrates a transformer and DC/DC controller with a proprietary architecture to provide 500 mW (typical) of isolated power with low EMI.

The UCC12041-Q1 integrates protection features for increased system robustness. The device also has an enable pin, synchronization capability, and regulated 5-V or 3.3-V output options with headroom. The UCC12041-Q1 is a low-profile, miniaturized solution offered in a wide-body SOIC package with 2.65-mm height (typical).

UCC12041-Q1 is an automotive qualified DC/DC power module with 3-kVRMSbasic isolation rating designed to provide efficient, isolated power to isolated circuits that require a bias supply with a well-regulated output voltage. The device integrates a transformer and DC/DC controller with a proprietary architecture to provide 500 mW (typical) of isolated power with low EMI.

The UCC12041-Q1 integrates protection features for increased system robustness. The device also has an enable pin, synchronization capability, and regulated 5-V or 3.3-V output options with headroom. The UCC12041-Q1 is a low-profile, miniaturized solution offered in a wide-body SOIC package with 2.65-mm height (typical).
