ACTIVE
Configuration |
1:1 SPST |
Number of channels |
1 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
7.5 |
CON (typ) (pF) |
14 |
ON-state leakage current (max) (µA) |
2 |
Supply current (typ) (µA) |
0.05 |
Bandwidth (MHz) |
400 |
Operating temperature range (°C) |
-40 to 85 |
Input/output continuous current (max) (A) |
0.05 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

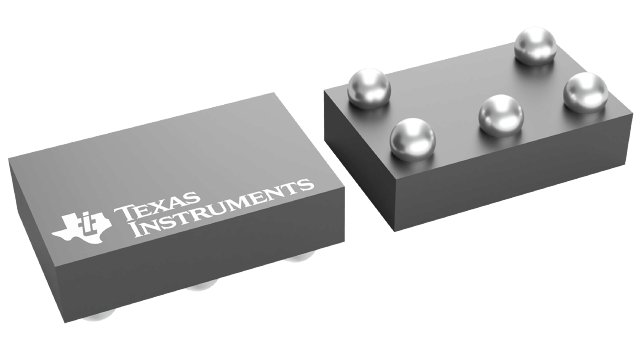

DSBGA (YZP)-5-2.1875 mm² 1.75 x 1.25
The TS5A1066 is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ (peak) can be transmitted in either direction.
