TS3A27518E

ACTIVE

3.3-V, 2:1 (SPDT), 6-channel analog multiplexer with 1.8-V compatible control inputs

Texas Instruments TS3A27518E Product Info

1 April 2026 4

Parameters

Protocols

Analog, SPI

Configuration

2:1 SPDT

Number of channels

6

Bandwidth (MHz)

240

Supply voltage (max) (V)

3.6

Ron (typ) (mΩ)

4400

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

3.6

Supply current (typ) (µA)

0.001

Operating temperature range (°C)

-40 to 85

Crosstalk (dB)

-71

ESD CDM (kV)

1.5

Input/output continuous current (max) (mA)

50

COFF (typ) (pF)

13

CON (typ) (pF)

21.5

Off isolation (typ) (dB)

-62

OFF-state leakage current (max) (µA)

7

Ron (max) (mΩ)

16300

Ron channel match (max) (Ω)

1.2

Turnon time (enable) (max) (ns)

60

VIH (min) (V)

1

VIL (max) (V)

0.65

Rating

Catalog

Package

TSSOP (PW)-24-49.92 mm² 7.8 x 6.4

Features

  • 1.65 V to 3.6 V single-supply operation
  • Isolation in power-down mode, VCC = 0
  • Low-capacitance switches, 21.5 pF (typical)
  • Bandwidth up to 240 MHz for high-speed rail-to-rail signal handling
  • Crosstalk and OFF isolation of –62 dB
  • 1.8 V logic compatible control inputs
  • 3.6 V tolerant control inputs
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
  • ESD performance tested per JESD 22
    • 2500-V human-body model (A114-B, Class II)
    • 1500-V charged-device model (C101)
  • ESD performance: NC/NO ports
    • ±6-kV contact discharge (IEC 61000-4-2)

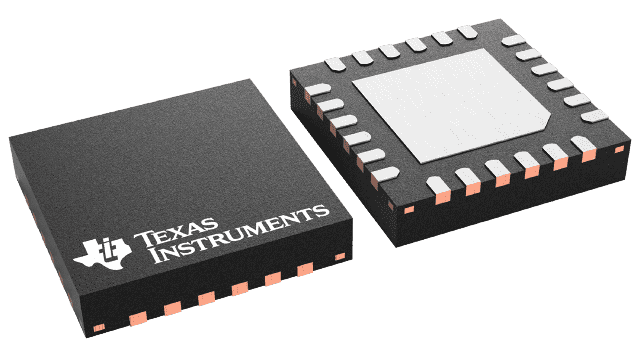

  • 24-WQFN (4.00 mm × 4.00 mm) and 24-TSSOP (7.90 mm × 6.60 mm) packages
  • 1.65 V to 3.6 V single-supply operation
  • Isolation in power-down mode, VCC = 0
  • Low-capacitance switches, 21.5 pF (typical)
  • Bandwidth up to 240 MHz for high-speed rail-to-rail signal handling
  • Crosstalk and OFF isolation of –62 dB
  • 1.8 V logic compatible control inputs
  • 3.6 V tolerant control inputs
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
  • ESD performance tested per JESD 22
    • 2500-V human-body model (A114-B, Class II)
    • 1500-V charged-device model (C101)
  • ESD performance: NC/NO ports
    • ±6-kV contact discharge (IEC 61000-4-2)
  • 24-WQFN (4.00 mm × 4.00 mm) and 24-TSSOP (7.90 mm × 6.60 mm) packages

Description

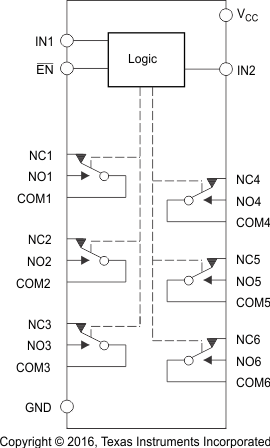

The TS3A27518E is a bidirectional, 6-channel, 1:2 multiplexer-demultiplexer designed to operate from 1.65 V to 3.6 V. This device can handle both digital and analog signals, and can transmit signals up to VCC in either direction. The TS3A27518E has two control pins, each controlling three 1:2 muxes at the same time, and an enable pin that put all outputs in high-impedance mode. The control pins are compatible with 1.8 V logic thresholds and are backward compatible with 2.5 V and 3.3 V logic thresholds.

The TS3A27518E allows any SD, SDIO, and multimedia card host controllers to expand out to multiple cards or peripherals because the SDIO interface consists of 6-bits: CMD, CLK, and Data[0:3] signals. This device will support other 6-bit interfaces such a qSPI. The TS3A27518E has two control pins that give additional flexibility to the user. For example, the ability to mux two different audio-video signals in equipment such as an LCD television, an LCD monitor, or a notebook docking station.
