TPSM8D6C24
  • TPSM8D6C24
  • TPSM8D6C24

TPSM8D6C24

ACTIVE

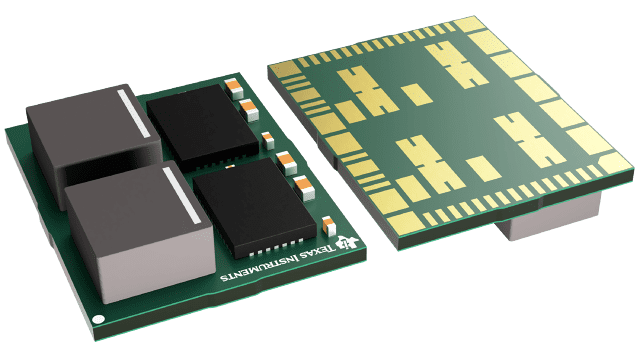

2.95-V to 16-V input, dual 35-A, PMBus® power module

Texas Instruments TPSM8D6C24 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Topology

Buck

Iout (max) (A)

35

Vin (max) (V)

16

Vin (min) (V)

2.95

Vout (max) (V)

3.6

Vout (min) (V)

0.5

Features

Adjustable current limit, Current Sharing, Dynamic voltage scaling, EMI Tested, Enable, Frequency synchronization, Overcurrent protection, PMBus, Phase Interleaving, Power good, Remote Sense, Voltage Margining

Operating temperature range (°C)

-40 to 125

Type

Module

Duty cycle (max) (%)

85

Control mode

current mode

Switching frequency (min) (kHz)

275

Switching frequency (max) (kHz)

1100

Package

QFM (MOW)-59-320 mm² 16 x 20

Features

  • 4.25V to 16V with PVIN tied to AVIN with internal LDO
  • 2.95V to 16V with PVIN and AVIN split rail, or with external bias on VDD5
  • Integrated MOSFETs, inductors, and basic passives
  • Average current mode control with selectable internal compensation
  • 0.5V to 3.6V output voltage range from through pinstrap
  • 0.25V to 3.6V PMBus VOUT_COMMAND range
  • Extensive PMBus command set with telemetry for VOUT, IOUT, and die temperature
  • Differential remote sensing with an internal FB divider for < 1% VOUT error
  • –40°C to +125°C junction temperature range
  • AVS and margining capabilities through PMBus
  • Multi-function select (MSEL) pins for pinstrap programming PMBus defaults
  • Nine selectable switching frequencies from 275 kHz to 1.1MHz
  • Frequency sync in and sync out
  • Supports prebiased output
  • 16mm × 20mm × 4.3mm, 59-pin MOW package
  • Create a custom design using the TPSM8D6C24 with the WEBENCH Power Designer
  • 4.25V to 16V with PVIN tied to AVIN with internal LDO
  • 2.95V to 16V with PVIN and AVIN split rail, or with external bias on VDD5
  • Integrated MOSFETs, inductors, and basic passives
  • Average current mode control with selectable internal compensation
  • 0.5V to 3.6V output voltage range from through pinstrap
  • 0.25V to 3.6V PMBus VOUT_COMMAND range
  • Extensive PMBus command set with telemetry for VOUT, IOUT, and die temperature
  • Differential remote sensing with an internal FB divider for < 1% VOUT error
  • –40°C to +125°C junction temperature range
  • AVS and margining capabilities through PMBus
  • Multi-function select (MSEL) pins for pinstrap programming PMBus defaults
  • Nine selectable switching frequencies from 275 kHz to 1.1MHz
  • Frequency sync in and sync out
  • Supports prebiased output
  • 16mm × 20mm × 4.3mm, 59-pin MOW package
  • Create a custom design using the TPSM8D6C24 with the WEBENCH Power Designer

Description

The TPSM8D6C24 is a highly integrated, easy-to-use, non-isolated DC/DC buck power module. The TPSM8D6C24 provides two 35A independent outputs or a single stacked 2-phase 70A output. Two modules can be stacked for a 4-phase 140A output. The device has an option to overdrive the internal 5V LDO with an external 5V supply to enable a lower input voltage range down to 2.95V and improve the efficiency of the converter.

The TPSM8D6C24 power module uses a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components for minimal size and stability over a wide range of output capacitances.

The PMBus interface with 1MHz clock support provides a convenient, standardized digital interface for converter configuration as well as monitoring of key parameters including output voltage, output current, and internal die temperature. Response to fault conditions can be set to restart, latch off, or ignore, depending on system requirements. Back-channel communication between stacked devices enables all TPSM8D6C24 converters, powering a single output rail to share a single address to simplify system software or firmware design. Key parameters including output voltage, switching frequency, soft-start time, and overcurrent fault limits can also be configured through BOM selection without PMBus communication to support program free power up.

The TPSM8D6C24 is a highly integrated, easy-to-use, non-isolated DC/DC buck power module. The TPSM8D6C24 provides two 35A independent outputs or a single stacked 2-phase 70A output. Two modules can be stacked for a 4-phase 140A output. The device has an option to overdrive the internal 5V LDO with an external 5V supply to enable a lower input voltage range down to 2.95V and improve the efficiency of the converter.

The TPSM8D6C24 power module uses a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components for minimal size and stability over a wide range of output capacitances.

The PMBus interface with 1MHz clock support provides a convenient, standardized digital interface for converter configuration as well as monitoring of key parameters including output voltage, output current, and internal die temperature. Response to fault conditions can be set to restart, latch off, or ignore, depending on system requirements. Back-channel communication between stacked devices enables all TPSM8D6C24 converters, powering a single output rail to share a single address to simplify system software or firmware design. Key parameters including output voltage, switching frequency, soft-start time, and overcurrent fault limits can also be configured through BOM selection without PMBus communication to support program free power up.
