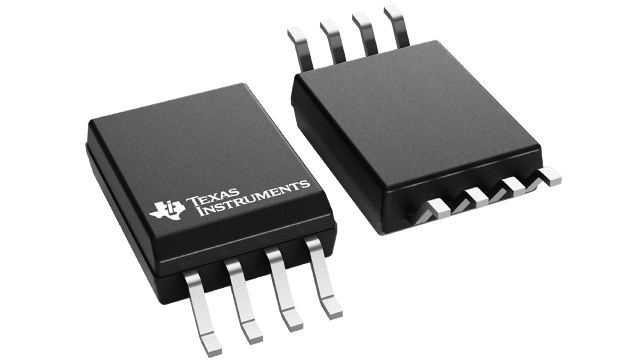

SO-MOD (DWZ)-8-67.275 mm² 5.85 x 11.5

The TPSI3052-Q1 is a fully integrated, isolated switch driver, which when combined with an external power switch, forms a complete isolated solid state relay (SSR). With a nominal gate drive voltage of 15V with 1.5/3.0A peak source and sink current, select from a large variety of external power switches to meet a wide range of applications. The TPSI3052-Q1 generates its own secondary bias supply from the power received from its primary side, so no isolated secondary supply bias is required. Additionally, the TPSI3052-Q1 can optionally supply power to external supporting circuitry for various application needs.

The TPSI3052-Q1 supports two modes of operation based on the number of input pins required. In two-wire mode, typically found in driving mechanical relays, controlling the switch requires only two pins and supports a wide voltage range of operation from 6.5V to 48V. In three-wire mode, the primary supply from 3V to 5.5V is supplied externally, and the switch is controlled through a separate enable. Available in three-wire mode only, the TPSI3052S-Q1 features a one-shot enable for the switch control. This feature is useful for driving SCRs that typically require only one pulse of current to trigger.

The secondary side provides a regulated, floating supply rail of 15V for driving a large variety of power switches with no need for a secondary bias supply. The application can drive single power switches for DC applications or dual, back-to-back power switches for AC applications, as well as various types of SCR. The TPSI3052-Q1 integrated isolation protection is robust with higher reliability, lower power consumption, and increased temperature ranges than traditional mechanical relays and optocouplers.

Adjust the power transfer of the TPSI3052-Q1 by selecting one of seven power level settings using an external resistor from the PXFR pin to VSSP. This action allows for tradeoffs in power dissipation versus power provided on the secondary depending on the needs of the application.
