TPS7H1210-SEP
  • TPS7H1210-SEP
  • TPS7H1210-SEP
  • TPS7H1210-SEP

TPS7H1210-SEP

ACTIVE

Radiation-tolerant, -3-V to -16.5-V input, 1-A, negative linear regulator in space-enhanced plastic

Texas Instruments TPS7H1210-SEP Product Info

1 April 2026 0

Parameters

Rating

Space

Vin (max) (V)

-3

Vin (min) (V)

-16.5

Iout (max) (A)

1

Output options

Adjustable Output, Negative Output

Vout (max) (V)

-1.2

Vout (min) (V)

-15.5

Noise (µVrms)

13.7

PSRR at 100 KHz (dB)

61

Iq (typ) (mA)

0.21

Features

Enable, Soft start

Thermal resistance θJA (°C/W)

32.7

Load capacitance (min) (µF)

10

Regulated outputs (#)

1

Accuracy (%)

2

Dropout voltage (Vdo) (typ) (mV)

363

Operating temperature range (°C)

-55 to 125

Radiation, SEL (MeV·cm2/mg)

43

Radiation, TID (typ) (krad)

30

Package

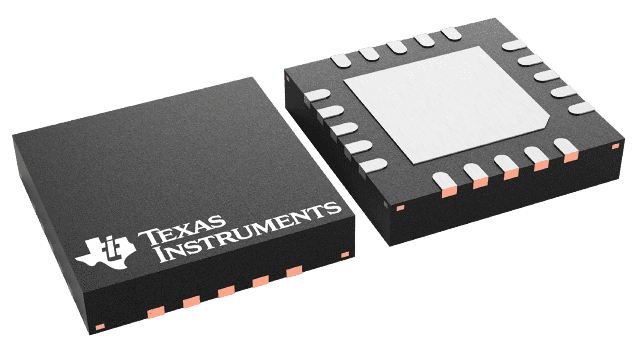

VQFN (RGW)-20-25 mm² 5 x 5

Features

  • Vendor item drawing available, VID V62/21616
  • Total ionizing dose (TID) characterized to 30 krad(Si)
    • TID RLAT (radiation lot acceptance testing) for every wafer lot to 20 krad(Si)
  • Single-event effects (SEE) characterized
    • Single-event latchup (SEL), single-event burnout (SEB), and single-event gate rupture (SEGR) immune to linear energy transfer (LET) = 43 MeV-cm2/mg
    • Single-event functional interrupt (SEFI) and single-event transient (SET) characterized to LET = 43 MeV-cm2/mg
  • Low noise: 13.7-µVRMS typical (10 Hz to 100 kHz)
  • High power-supply rejection ration, PSRR (typical at VIN = –6 V, VOUT = –5 V, IOUT = 1 A):
    • 61 dB at 100 Hz
    • 61 dB at 100 kHz
    • 41 dB at 1 MHz
  • Input voltage range: –3 V to –16.5 V
  • Adjustable output: –1.2 V to –15.5 V
  • Up to 1-A output current
  • Stable with ceramic capacitors ≥ 10 µF
  • Built-in current-limit and thermal shutdown protection
  • Space Enhanced Plastic (SEP)
    • Controlled baseline
    • Gold bondwire
    • NiPdAu lead finish
    • One assembly and test site
    • One fabrication site
    • Military (–55°C to 125°C) temperature range
    • Extended product life cycle
    • Extended product-change notification (PCN)
    • Product traceability
    • Enhanced mold compound for low outgassing
  • Vendor item drawing available, VID V62/21616
  • Total ionizing dose (TID) characterized to 30 krad(Si)
    • TID RLAT (radiation lot acceptance testing) for every wafer lot to 20 krad(Si)
  • Single-event effects (SEE) characterized
    • Single-event latchup (SEL), single-event burnout (SEB), and single-event gate rupture (SEGR) immune to linear energy transfer (LET) = 43 MeV-cm2/mg
    • Single-event functional interrupt (SEFI) and single-event transient (SET) characterized to LET = 43 MeV-cm2/mg
  • Low noise: 13.7-µVRMS typical (10 Hz to 100 kHz)
  • High power-supply rejection ration, PSRR (typical at VIN = –6 V, VOUT = –5 V, IOUT = 1 A):
    • 61 dB at 100 Hz
    • 61 dB at 100 kHz
    • 41 dB at 1 MHz
  • Input voltage range: –3 V to –16.5 V
  • Adjustable output: –1.2 V to –15.5 V
  • Up to 1-A output current
  • Stable with ceramic capacitors ≥ 10 µF
  • Built-in current-limit and thermal shutdown protection
  • Space Enhanced Plastic (SEP)
    • Controlled baseline
    • Gold bondwire
    • NiPdAu lead finish
    • One assembly and test site
    • One fabrication site
    • Military (–55°C to 125°C) temperature range
    • Extended product life cycle
    • Extended product-change notification (PCN)
    • Product traceability
    • Enhanced mold compound for low outgassing

Description

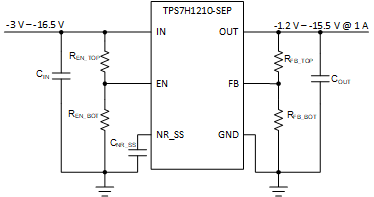

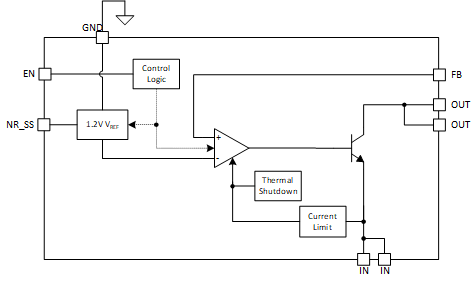

The TPS7H1210-SEP negative voltage linear regulator is a low noise, high PSRR regulator capable of sourcing a maximum load of 1 A.

The regulator include a CMOS logic-level-compatible enable pin (EN) to allow for user-customizable power management schemes. Other features include built-in current limit and thermal shutdown to protect the device and system during fault conditions.

The TPS7H1210-SEP device is designed using bipolar technology primarily for high-accuracy, low-noise applications, where clean voltage rails are critical to maximize system performance. Therefore, it ideal to power op amps, ADCs, DACs, and other high-performance analog circuitry.

Additionally, the TPS7H1210-SEP device is suitable for post DC-DC converter regulation. By filtering the output voltage ripple inherent to DC-DC switching conversion, maximum system performance is ensured in sensitive devices and RF applications.

The TPS7H1210-SEP negative voltage linear regulator is a low noise, high PSRR regulator capable of sourcing a maximum load of 1 A.

The regulator include a CMOS logic-level-compatible enable pin (EN) to allow for user-customizable power management schemes. Other features include built-in current limit and thermal shutdown to protect the device and system during fault conditions.

The TPS7H1210-SEP device is designed using bipolar technology primarily for high-accuracy, low-noise applications, where clean voltage rails are critical to maximize system performance. Therefore, it ideal to power op amps, ADCs, DACs, and other high-performance analog circuitry.

Additionally, the TPS7H1210-SEP device is suitable for post DC-DC converter regulation. By filtering the output voltage ripple inherent to DC-DC switching conversion, maximum system performance is ensured in sensitive devices and RF applications.
