TPS7A53A-Q1
  • TPS7A53A-Q1
  • TPS7A53A-Q1
  • TPS7A53A-Q1

TPS7A53A-Q1

ACTIVE

Automotive, 3-A, low-VIN 5.6-µVRMS low-noise high-accuracy ultra-low dropout voltage regulator

Texas Instruments TPS7A53A-Q1 Product Info

1 April 2026 4

Parameters

Rating

Automotive

Vin (max) (V)

6

Vin (min) (V)

1.13

Iout (max) (A)

3

Output options

Fixed Output

Vout (max) (V)

1

Vout (min) (V)

1

Fixed output options (V)

1

Noise (µVrms)

5.6

PSRR at 100 KHz (dB)

40

Iq (typ) (mA)

0.7

Features

Enable, Foldback Overcurrent protection, Output discharge, Power good, Soft start, Wettable flanks package

Thermal resistance θJA (°C/W)

42.5

TI functional safety category

Functional Safety-Capable

Load capacitance (min) (µF)

10

Regulated outputs (#)

1

Accuracy (%)

0.5

Dropout voltage (Vdo) (typ) (mV)

110

Operating temperature range (°C)

-40 to 150

Package

WQFN (RTJ)-20-16 mm² 4 x 4

Features

  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C ≤ TA ≤ +125°C
    • HBM ESD classification level 2
    • CDM ESD classification level C4A
  • Extended junction temperature (TJ) range:
    • –40°C to +150°C
  • Input voltage range:
    • IN: VIN + VDO to 6.0 V
    • BIAS: VOUT + VDO(BIAS) to 6.0 V
  • Low dropout: 130 mV at 3 A

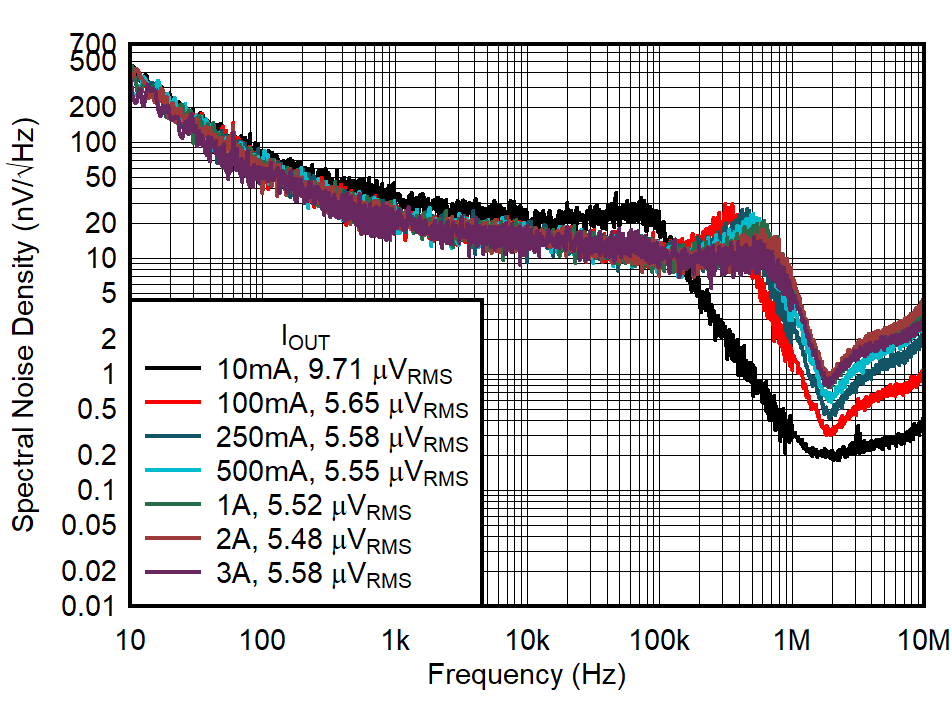

  • Output voltage noise: 5.6 µVRMS
  • Accuracy over line, load, and temperature:
    • 1.3% (max)
  • Power-supply ripple rejection:
    • 40 dB at 500 kHz
  • Adjustable soft-start inrush control
  • Open-drain power-good (PG) output

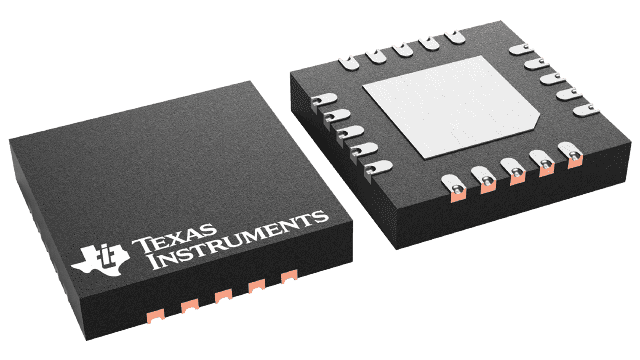

  • Package:
    • 4-mm × 4-mm, 20-pin WQFN with wettable flanks and high CTE (12 ppm/°C) mold compound
  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40°C ≤ TA ≤ +125°C
    • HBM ESD classification level 2
    • CDM ESD classification level C4A
  • Extended junction temperature (TJ) range:
    • –40°C to +150°C
  • Input voltage range:
    • IN: VIN + VDO to 6.0 V
    • BIAS: VOUT + VDO(BIAS) to 6.0 V
  • Low dropout: 130 mV at 3 A
  • Output voltage noise: 5.6 µVRMS
  • Accuracy over line, load, and temperature:
    • 1.3% (max)
  • Power-supply ripple rejection:
    • 40 dB at 500 kHz
  • Adjustable soft-start inrush control
  • Open-drain power-good (PG) output
  • Package:
    • 4-mm × 4-mm, 20-pin WQFN with wettable flanks and high CTE (12 ppm/°C) mold compound

Description

The TPS7A53A-Q1 is a low-noise (5.6 µVRMS), low-dropout linear regulator (LDO) capable of sourcing 3 A with only 130 mV of dropout.

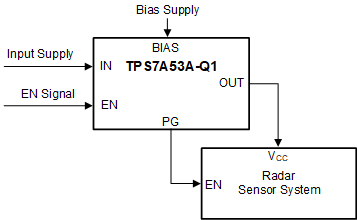

The combination of low noise (5.6 µVRMS), high PSRR, and high output current capability makes the TPS7A53A-Q1 designed for powering noise-sensitive components, such as those found in radar power and infotainment applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device useful for powering RF amplifiers, radar sensors, and chipsets. Specifically, signal chain components benefit from the high-performance of the device. The TPS7A53A-Q1 is available with a wettable flanks option to facilitate optical inspection.

For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] that require low-input, low-output (LILO) voltage operation, the exceptional accuracy (1.3% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A53A-Q1 provide optimal system performance.

The versatility of the TPS7A53A-Q1 makes the device a component of choice for many demanding applications.
