ACTIVE
Rating |
Catalog |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.7 |
Iout (max) (A) |
0.25 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
5.4 |
Vout (min) (V) |
1.22 |
Fixed output options (V) |
1.8, 2.5, 2.8, 3, 3.3, 5.4 |
Noise (µVrms) |
32 |
PSRR at 100 KHz (dB) |
38 |
Iq (typ) (mA) |
0.17 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
53 |
Load capacitance (min) (µF) |
2.2 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
155 |
Operating temperature range (°C) |
-40 to 85 |

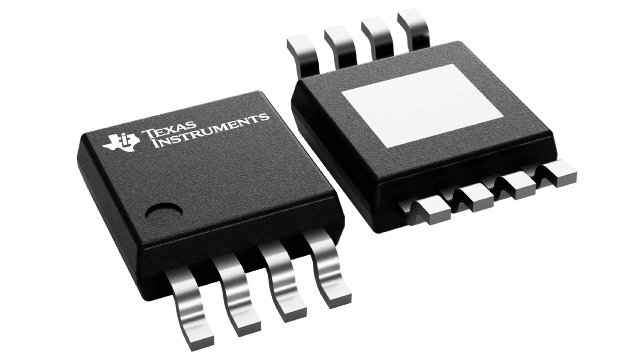

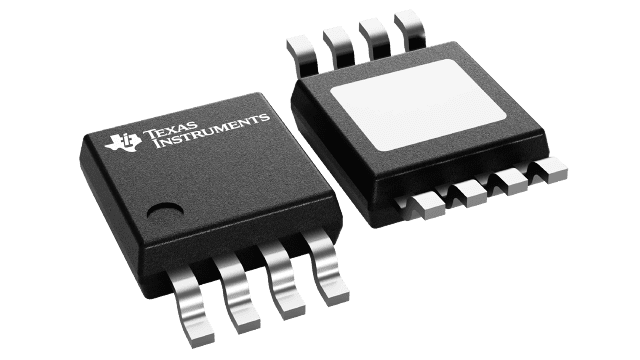

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9
The TPS794 low-dropout (LDO) linear voltage regulator features high power-supply rejection ratio (PSRR), low-noise, fast start-up, and excellent line and load transient responses. Each device in the family is stable with a small 2.2µF ceramic capacitor on the output. The TPS794 offers low dropout voltages, 155mV (typ) at 250mA.Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high PSRR and low noise features as well as the fast response time.
