ACTIVE
Rating |
Catalog |
Vin (max) (V) |
6 |
Vin (min) (V) |
1.65 |
Iout (max) (A) |
0.3 |
Output options |
Adjustable Output |
Vout (max) (V) |
5.5 |
Vout (min) (V) |
1.2 |
Noise (µVrms) |
30 |
PSRR at 100 KHz (dB) |
49 |
Iq (typ) (mA) |
0.025 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
186.1 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
1 |

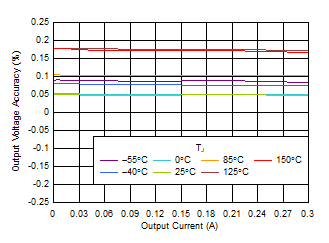

Accuracy (%) |
0.75 |

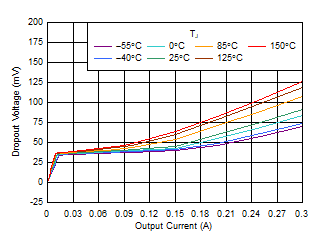

Dropout voltage (Vdo) (typ) (mV) |
115 |
Operating temperature range (°C) |
-40 to 125 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
The TPS784 is an adjustable 300-mA ultra low-dropout regulator (LDO) with a low quiescent current. This device is available in a small 5-pin, 2.9-mm × 1.6-mm, SOT-23 package and has an excellent line and load transient performance.
The low output noise and great PSRR performance make this device suitable to power-sensitive analog loads. The TPS784 is a flexible device for post regulation because this device supports an input voltage range from 1.65 V to 6.0 V and offers an adjustable output range of 1.2 V to 5.5 V.
The TPS784 offers foldback current limit to reduce power dissipation during over current condition. The EN input helps with power sequencing requirements of the system. The internal soft-start provides a controlled startup reducing the inrush current and allowing for a small input capacitor to be used.
The TPS784 provides an active pulldown circuit to quickly discharge output loads when disabled.
