ACTIVE
Rating |
Automotive |
Vin (max) (V) |
6.5 |
Vin (min) (V) |
2.5 |
Iout (max) (A) |
0.15 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
5 |
Vout (min) (V) |
0.9 |
Fixed output options (V) |
0.9, 1.2, 1.5, 1.8, 2.5, 2.8, 3, 3.3, 4.5, 5 |
Noise (µVrms) |
20.7 |
PSRR at 100 KHz (dB) |
67 |
Iq (typ) (mA) |
0.045 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
71 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
170 |
Operating temperature range (°C) |
-40 to 125 |
SOT-SC70 (DCK)-5-4.2 mm² 2 x 2.1

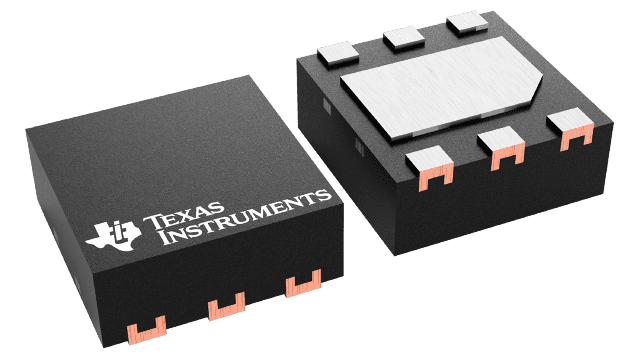

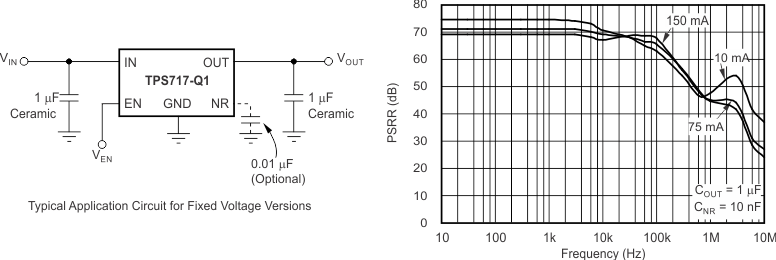

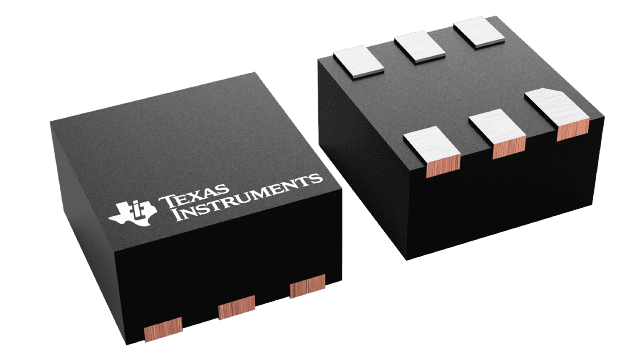

The TPS717-Q1 family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) while maintaining very low 45-µA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717-Q1 is stable with a 1-µF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ, TA = –40°C to 125°C and is offered in a small SOT (SC70-5) package, a 2-mm × 2-mm WSON-6 package with a thermal pad, and a 1.5-mm × 1.5-mm WSON-6 package, which are ideal for small form factor portable equipment (such as wireless handsets and PDAs). The TPS717-Q1 family of LDOs is qualified for AEC-Q100 grade 1.
