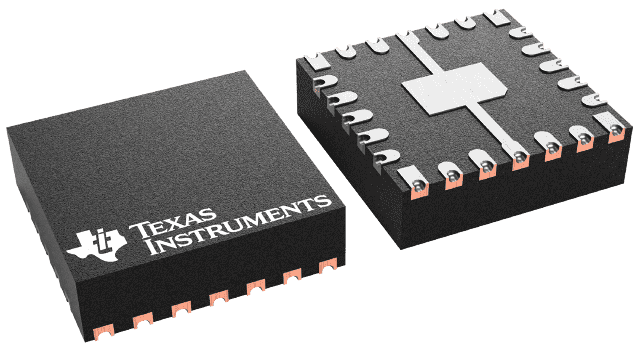

Texas Instruments TPS650362-Q1 Product Info

Parameters

Regulated outputs (#)	4
Step-down DC/DC converter	3
LDO	1
Vin (min) (V)	4
Vin (max) (V)	35
Vout (min) (V)	0.6
Vout (max) (V)	5.5
Configurability	Factory programmable, Software configurable
TI functional safety category	Functional Safety-Compliant
Features	ASIL-B, I2C, Power Sequencing, Power good, Thermal shutdown, UVLO fixed, Undervoltage and overvoltage monitor
Rating	Automotive
Operating temperature range (°C)	-40 to 125

Package

VQFN-HR (RAY)-24-12.25 mm² 3.5 x 3.5

Features

Qualified for automotive applications
AEC-Q100 qualified with following results:
- Device operates from 4V to 35V input supply
- Device temperature grade 1: -40°C to +125°C
Functional Safety -compliant
- Developed for functional safety applications
- Documentation available to aid ISO26262 and IEC61508 system design
- Systematic integrity up to ASIL-D
- Systematic integrity up to SIL-3
- Hardware integrity up to ASIL-B
- Hardware integrity up to SIL-2
- Under/overvoltage monitors with Built-In Self-Test
- Watchdog (trigger or Q&A), Error Signal Monitor
- Temperature warning and thermal shutdown
Wide-VIN step-down converter BUCK1
- VIN range from 4V to 35V
- VOUT range from 3V to 5.5V
- Output current up to 2000mA
- 2.2MHz switching frequency
Two Low-VIN step-down converters BUCK2, BUCK3:
- VIN range from 3.0V to 5.5V
- VOUT range from 0.6V to 3.4V
- Output current up to 2700mA peak
- 2.2MHz or 4.4MHz switching frequency
One low dropout (LDO) regulator:
- VIN range from 3.0V to 5.5V
- VOUT range from 1.8V to 3.4V
- Up to 300mA output current
- Low noise and high PSRR
3.5mm × 3.5mm 24-pin VQFN with wettable flanks

Qualified for automotive applications
AEC-Q100 qualified with following results:
- Device operates from 4V to 35V input supply
- Device temperature grade 1: -40°C to +125°C
Functional Safety -compliant
- Developed for functional safety applications
- Documentation available to aid ISO26262 and IEC61508 system design
- Systematic integrity up to ASIL-D
- Systematic integrity up to SIL-3
- Hardware integrity up to ASIL-B
- Hardware integrity up to SIL-2
- Under/overvoltage monitors with Built-In Self-Test
- Watchdog (trigger or Q&A), Error Signal Monitor
- Temperature warning and thermal shutdown
Wide-VIN step-down converter BUCK1
- VIN range from 4V to 35V
- VOUT range from 3V to 5.5V
- Output current up to 2000mA
- 2.2MHz switching frequency
Two Low-VIN step-down converters BUCK2, BUCK3:
- VIN range from 3.0V to 5.5V
- VOUT range from 0.6V to 3.4V
- Output current up to 2700mA peak
- 2.2MHz or 4.4MHz switching frequency
One low dropout (LDO) regulator:
- VIN range from 3.0V to 5.5V
- VOUT range from 1.8V to 3.4V
- Up to 300mA output current
- Low noise and high PSRR
3.5mm × 3.5mm 24-pin VQFN with wettable flanks

Description

The TPS65036x-Q1 device is a highly integrated power management IC for automotive camera and radar modules and MCU power. This device combines three step-down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 35V. All converters can operate in a forced fixed-frequency PWM mode or an AutoPFM mode and support optional spread-spectrum modulation (SSM) for EMI reduction. The LDO can supply 300mA and operate with an input voltage range from 3V to 5.5V. The TPS65036x-Q1 support low power mode with control from pin or I2C.

The TPS65036x-Q1 is available in a 24-pin VQFN package (3.5mm × 3.5mm).

The specific orderable part numbers supported are as follows:

TPS65036xyyRAYRQ1where:

The TPS65036x-Q1 device is a highly integrated power management IC for automotive camera and radar modules and MCU power. This device combines three step-down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 35V. All converters can operate in a forced fixed-frequency PWM mode or an AutoPFM mode and support optional spread-spectrum modulation (SSM) for EMI reduction. The LDO can supply 300mA and operate with an input voltage range from 3V to 5.5V. The TPS65036x-Q1 support low power mode with control from pin or I2C.

The TPS65036x-Q1 is available in a 24-pin VQFN package (3.5mm × 3.5mm).

The specific orderable part numbers supported are as follows:

TPS65036xyyRAYRQ1where:
