Texas Instruments TPS62843 Product Info

Parameters

Rating	Catalog
Topology	Buck
Iout (max) (A)	0.6
Vin (max) (V)	5.5
Vin (min) (V)	1.8
Vout (max) (V)	3.6
Vout (min) (V)	0.4
Features	Enable, Light Load Efficiency, Output discharge, Over Current Protection, Soft Start Fixed, Synchronous Rectification, UVLO fixed, VID Interface
Control mode	DCS-Control
Operating temperature range (°C)	-40 to 125
Iq (typ) (A)	0.000000275
Duty cycle (max) (%)	100

Package

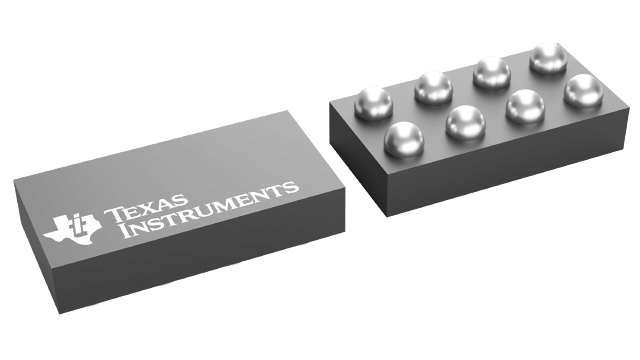

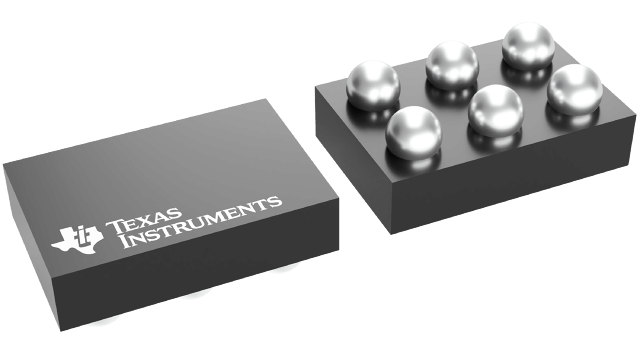

DSBGA (YKA)-6-0.735 mm² 1.05 x 0.7

Features

1.8V to 5.5V input voltage range
0.4V to 3.6V output voltage range
275nA typical quiescent current
600mA output current
1% output voltage accuracy
4nA typical shutdown current
Output discharge
VSET pin-selectable output voltage through a single resistor
- TPS628436: 0.4V to 0.8V
- TPS628437: 0.8V to 1.8V
- TPS628438: 1.8V to 3.6V
Designed for small passive components
- 1µH inductor
- Down to effective capacitance of 4µF COUT
High PSRR (up to 83dB)
Low output voltage ripple in power save mode
RF-friendly and fast transient DCS-Control
Automatic transition to no ripple 100% mode
0603-inductor and 0402-capacitor size supported
Tiny 6-pin, 0.35mm pitch WCSP package with 0.84mm² size
Pin-to-pin compatible to the TPS6280x family (1A) in WCSP package
Available in a 1.60mm × 1.60mm SOT563 package

1.8V to 5.5V input voltage range
0.4V to 3.6V output voltage range
275nA typical quiescent current
600mA output current
1% output voltage accuracy
4nA typical shutdown current
Output discharge
VSET pin-selectable output voltage through a single resistor
- TPS628436: 0.4V to 0.8V
- TPS628437: 0.8V to 1.8V
- TPS628438: 1.8V to 3.6V
Designed for small passive components
- 1µH inductor
- Down to effective capacitance of 4µF COUT
High PSRR (up to 83dB)
Low output voltage ripple in power save mode
RF-friendly and fast transient DCS-Control
Automatic transition to no ripple 100% mode
0603-inductor and 0402-capacitor size supported
Tiny 6-pin, 0.35mm pitch WCSP package with 0.84mm² size
Pin-to-pin compatible to the TPS6280x family (1A) in WCSP package
Available in a 1.60mm × 1.60mm SOT563 package

Description

The TPS62843 is a high-efficiency, step-down converter family with ultra-low operating quiescent current of typically 275nA. The device features a 4nA shutdown (typical) current when disabled.

The device uses DCS-Control with a low and RF-friendly output voltage ripple to power radios.

The device operates with a typical switching frequency of 1.5MHz and extends a high efficiency at light-load down to 100µA load current and below.

3 × 18 pre-defined output voltages can be selected by connecting a resistor to the VSET pin, making the family usable across various applications with a minimum set of passive components.

The TPS62843 is a high-efficiency, step-down converter family with ultra-low operating quiescent current of typically 275nA. The device features a 4nA shutdown (typical) current when disabled.

The device uses DCS-Control with a low and RF-friendly output voltage ripple to power radios.

The device operates with a typical switching frequency of 1.5MHz and extends a high efficiency at light-load down to 100µA load current and below.

3 × 18 pre-defined output voltages can be selected by connecting a resistor to the VSET pin, making the family usable across various applications with a minimum set of passive components.

ELECTRONIC COMPONENTS
All In One Distributor

TPS62843

1.8V to 5.5V input, 600mA ultra-low IQ step-down converter

Texas Instruments TPS62843 Product Info

Parameters

Package

Features

Description
