0
ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
2 |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.4 |
Vout (max) (V) |
4 |
Vout (min) (V) |
0.6 |
Features |
Enable, Light Load Efficiency, Light load efficiency, Output discharge, Over Current Protection, Power good, Pre-Bias Start-Up, Soft Start Fixed, Synchronous Rectification, UVLO fixed |
Control mode |
Constant on-time (COT), DCS-Control |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.000004 |
Duty cycle (max) (%) |
100 |
VSON-HR (DLC)-8-3 mm² 2 x 1.5
The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 µA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response.
The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of -40°C to 125°C. The 1-A, 2-A, 3-A scalable pin-to-pin and BOM-to-BOM compatible device family can be used with small 470-nH inductors.
The TPS6282x include an automatically entered power save mode to maintain high efficiency down to very light loads.

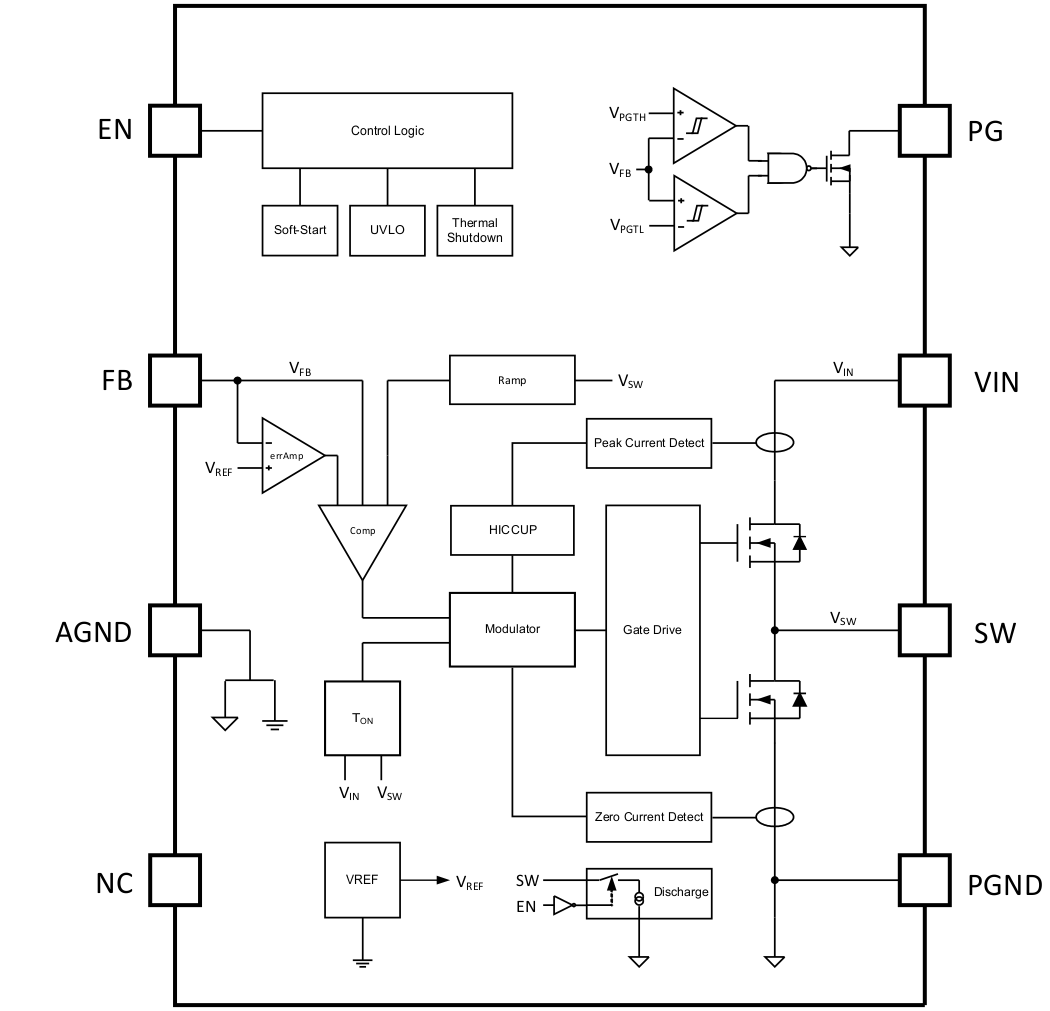

The device features a Power Good signal and an internal soft start circuit. It is able to operate in 100% mode. For fault protection, it incorporates a HICCUP current limit as well as a thermal shutdown.

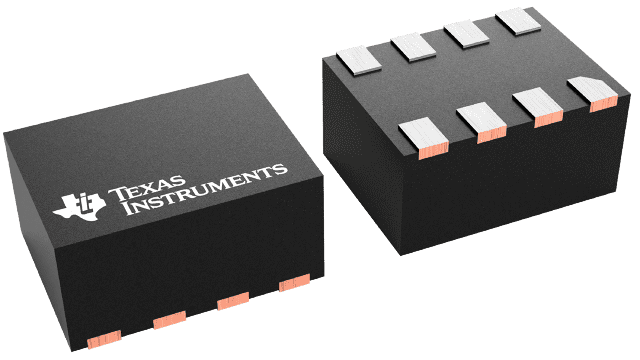

The TPS6282x are packaged in a 2 mm x 1.5 mm QFN-8 package.
