TPS62770
  • TPS62770
  • TPS62770

TPS62770

ACTIVE

Tiny Single-chip Dual Solution with 360nA Iq Buck and up to 15V Boost in WCSP

Texas Instruments TPS62770 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Topology

Buck

Iout (max) (A)

0.3

Vin (max) (V)

5.5

Vin (min) (V)

2.5

Vout (max) (V)

15

Vout (min) (V)

1

Features

Adaptive/Dynamic Voltage Scaling, Enable, Light load efficiency, Output discharge, Over Current Protection, Soft Start Fixed, Synchronous Rectification, UVLO fixed

Control mode

DCS-Control

Operating temperature range (°C)

-40 to 85

Iq (typ) (A)

0.00000037

Duty cycle (max) (%)

100

Package

DSBGA (YFP)-16-3.24 mm² 1.8 x 1.8

Features

  • VIN Range 2.5 V to 5.5 V
  • 370 nA Iq Step-Down Converter
    • 8 Selectable Output Voltages (1.0V to 3.0V)
    • 300 mA Output Current
    • Output Discharge Function
  • Slew Rate Controlled Load Switch with Discharge
    Function
  • Dual Mode Step-Up Converter
    • Load Disconnect
    • Constant Output Voltage Adjustable up to 15 V
      (VFB 0.8 V) / 12 V Fixed
    • LED Current Driver with PWM to Current
      Conversion (max VFB Voltage 200 mV @ D =
      100%)

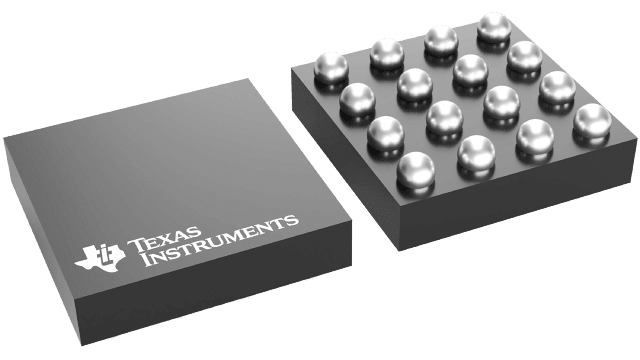

  • Tiny 16pin 1.58 × 1.58mm WCSP Package 0.4mm
    pitch
  • VIN Range 2.5 V to 5.5 V
  • 370 nA Iq Step-Down Converter
    • 8 Selectable Output Voltages (1.0V to 3.0V)
    • 300 mA Output Current
    • Output Discharge Function
  • Slew Rate Controlled Load Switch with Discharge
    Function
  • Dual Mode Step-Up Converter
    • Load Disconnect
    • Constant Output Voltage Adjustable up to 15 V
      (VFB 0.8 V) / 12 V Fixed
    • LED Current Driver with PWM to Current
      Conversion (max VFB Voltage 200 mV @ D =
      100%)
  • Tiny 16pin 1.58 × 1.58mm WCSP Package 0.4mm
    pitch

Description

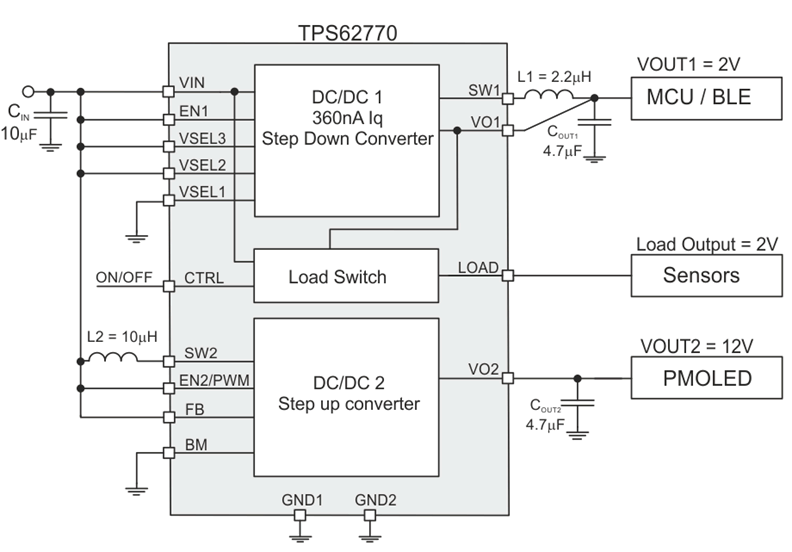

The TPS62770 is a tiny power solution for wearable applications including a 370nA ultra low Iq step-down converter, a slew rate controlled load switch and a dual mode step-up converter. The output voltage of the step-down converter can be selected with three VSEL pins between 1.0 V, 1.05 V, 1.1 V, 1.2 V, 1.8 V, 1.9 V, 2.0 V and 3.0 V. The output voltage can be changed during operation. In shutdown mode, the output of the step-down converter is pulled to GND. The integrated load switch is internally connected to the output of the step-down converter and features slew rate control during turn on phase. Once turned off, its output is connected to GND.

The dual mode step-up converter can generate a constant output voltage up to 15 V, such as PMOLED supply; or, a constant output current, such as LED back light supply. The output voltage can be adjusted up to 15 V with external resistors, or set to fixed 12 V by connecting the FB pin to VIN. The device features an internal over voltage protection of 17.7 V in case the FB node is left open or tight to GND. It includes an internal rectifier and load disconnect function. When used as constant output current driver, the device offers a PWM to analog converter to scale down the reference voltage according to the duty cycle of the PWM signal.

The device is available in a small 16pin 0.4mm pitch WCSP package.

The TPS62770 is a tiny power solution for wearable applications including a 370nA ultra low Iq step-down converter, a slew rate controlled load switch and a dual mode step-up converter. The output voltage of the step-down converter can be selected with three VSEL pins between 1.0 V, 1.05 V, 1.1 V, 1.2 V, 1.8 V, 1.9 V, 2.0 V and 3.0 V. The output voltage can be changed during operation. In shutdown mode, the output of the step-down converter is pulled to GND. The integrated load switch is internally connected to the output of the step-down converter and features slew rate control during turn on phase. Once turned off, its output is connected to GND.

The dual mode step-up converter can generate a constant output voltage up to 15 V, such as PMOLED supply; or, a constant output current, such as LED back light supply. The output voltage can be adjusted up to 15 V with external resistors, or set to fixed 12 V by connecting the FB pin to VIN. The device features an internal over voltage protection of 17.7 V in case the FB node is left open or tight to GND. It includes an internal rectifier and load disconnect function. When used as constant output current driver, the device offers a PWM to analog converter to scale down the reference voltage according to the duty cycle of the PWM signal.

The device is available in a small 16pin 0.4mm pitch WCSP package.
