TPS61023
  • TPS61023
  • TPS61023
  • TPS61023
  • TPS61023

TPS61023

ACTIVE

3.7-A boost converter with 0.5-V ultra-low input voltage

Texas Instruments TPS61023 Product Info

1 April 2026 1

Parameters

Rating

Catalog

Topology

Boost

Vin (max) (V)

5.5

Vin (min) (V)

0.5

Vout (max) (V)

5.5

Vout (min) (V)

2.2

Switch current limit (typ) (A)

3.7

Features

Enable, Light-load efficiency, Load Disconnect, Pass-through mode, Prebias startup, Synchronous rectification, UVLO fixed

Operating temperature range (°C)

-40 to 125

Iq (typ) (A)

0.00002

Duty cycle (max) (%)

97

Package

SOT-5X3 (DRL)-6-2.56 mm² 1.6 x 1.6

Features

  • Input voltage range: 0.5 V to 5.5 V
  • 1.8-V Minimum input voltage for start-up
  • Output voltage setting range: 2.2 V to 5.5 V
  • Two 47-mΩ (LS) / 68-mΩ (HS) MOSFETs
  • 3.7-A Valley switching current limit

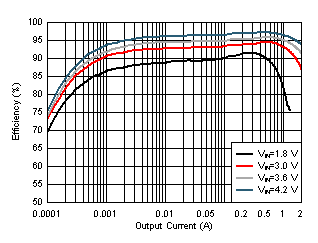

  • 94% Efficiency at VIN = 3.6 V, VOUT = 5 V and IOUT = 1.5 A
  • 1-MHz Switching frequency when VIN > 1.5 V and 0.5-MHz switching frequency when VIN < 1 V
  • Typical 0.1-µA shutdown current from VIN and SW
  • ±2.5% Reference voltage accuracy over –40°C to +125°C
  • Auto PFM operation mode at light load
  • Pass-through mode when VIN > VOUT
  • True disconnection between input and output during shutdown
  • Output overvoltage and thermal shutdown protections
  • Output short-circuit protection
  • 1.2-mm × 1.6-mm SOT563 (DRL) 6-pin package
  • Input voltage range: 0.5 V to 5.5 V
  • 1.8-V Minimum input voltage for start-up
  • Output voltage setting range: 2.2 V to 5.5 V
  • Two 47-mΩ (LS) / 68-mΩ (HS) MOSFETs
  • 3.7-A Valley switching current limit
  • 94% Efficiency at VIN = 3.6 V, VOUT = 5 V and IOUT = 1.5 A
  • 1-MHz Switching frequency when VIN > 1.5 V and 0.5-MHz switching frequency when VIN < 1 V
  • Typical 0.1-µA shutdown current from VIN and SW
  • ±2.5% Reference voltage accuracy over –40°C to +125°C
  • Auto PFM operation mode at light load
  • Pass-through mode when VIN > VOUT
  • True disconnection between input and output during shutdown
  • Output overvoltage and thermal shutdown protections
  • Output short-circuit protection
  • 1.2-mm × 1.6-mm SOT563 (DRL) 6-pin package

Description

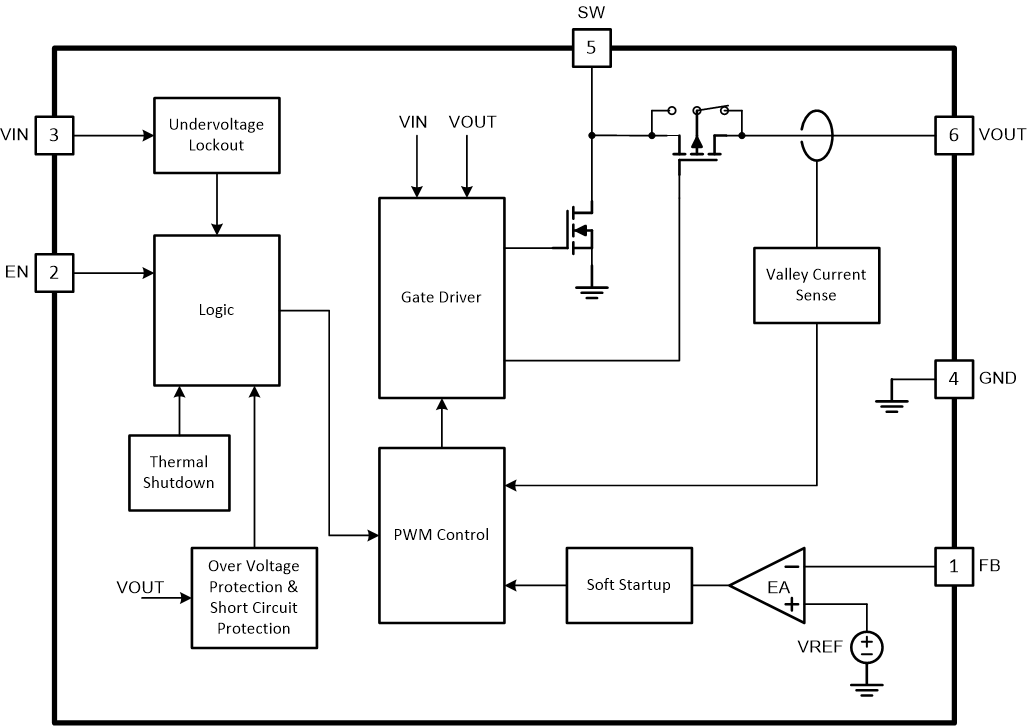

TPS61023 device is a synchronous boost converter with 0.5-V ultra-low input voltage. The device provides a power supply solution for portable equipment and smart devices powered by various batteries and super capacitors. The TPS61023 has typical 3.7-A valley switch current limit over full temperature range. With a wide input voltage range of 0.5 V to 5.5 V, the TPS61023 supports super capacitor backup power applications, which may deeply discharge the super capacitor.

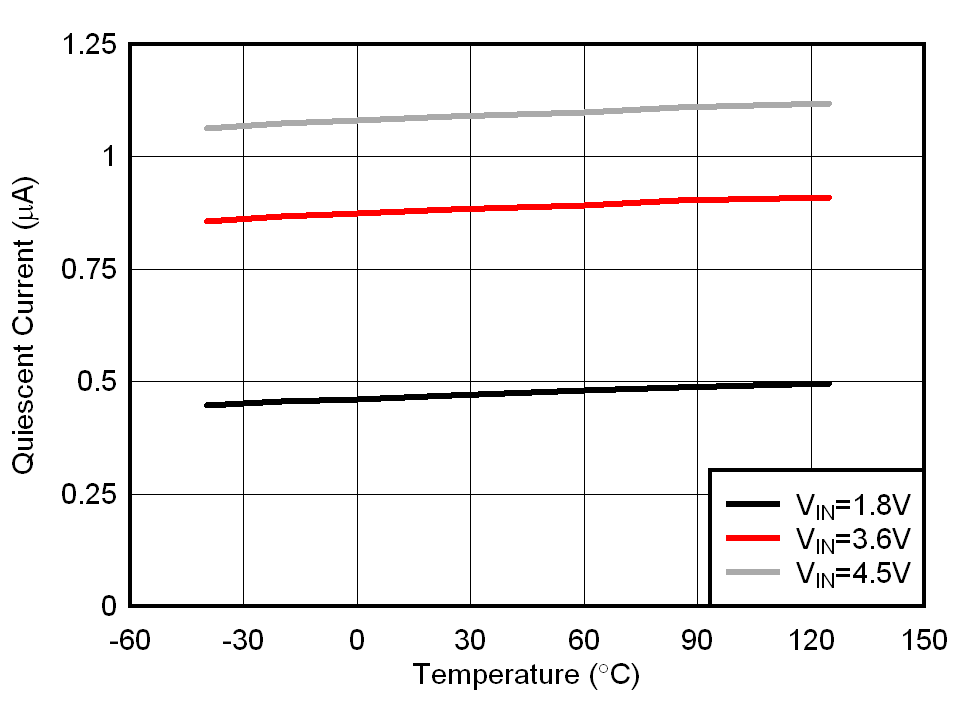

The TPS61023 operates at 1-MHz switching frequency when the input voltage is above 1.5 V. The switching frequency decreases gradually to 0.5 MHz when the input voltage is below 1.5 V down to 1 V. The TPS61023 enters power-save mode at light load condition to maintain high efficiency over the entire load current range. The TPS61023 consumes a 20-µA quiescent current from VOUT in light load condition. During shutdown, the TPS61023 is completely disconnected from the input power and only consumes a 0.1-µA current to achieve long battery life. The TPS61023 has 5.7-V output overvoltage protection, output short circuit protection, and thermal shutdown protection.

The TPS61023 offers a very small solution size with 1.2-mm × 1.6-mm SOT563 (DRL) package and minimum amount of external components.

TPS61023 device is a synchronous boost converter with 0.5-V ultra-low input voltage. The device provides a power supply solution for portable equipment and smart devices powered by various batteries and super capacitors. The TPS61023 has typical 3.7-A valley switch current limit over full temperature range. With a wide input voltage range of 0.5 V to 5.5 V, the TPS61023 supports super capacitor backup power applications, which may deeply discharge the super capacitor.

The TPS61023 operates at 1-MHz switching frequency when the input voltage is above 1.5 V. The switching frequency decreases gradually to 0.5 MHz when the input voltage is below 1.5 V down to 1 V. The TPS61023 enters power-save mode at light load condition to maintain high efficiency over the entire load current range. The TPS61023 consumes a 20-µA quiescent current from VOUT in light load condition. During shutdown, the TPS61023 is completely disconnected from the input power and only consumes a 0.1-µA current to achieve long battery life. The TPS61023 has 5.7-V output overvoltage protection, output short circuit protection, and thermal shutdown protection.

The TPS61023 offers a very small solution size with 1.2-mm × 1.6-mm SOT563 (DRL) package and minimum amount of external components.
